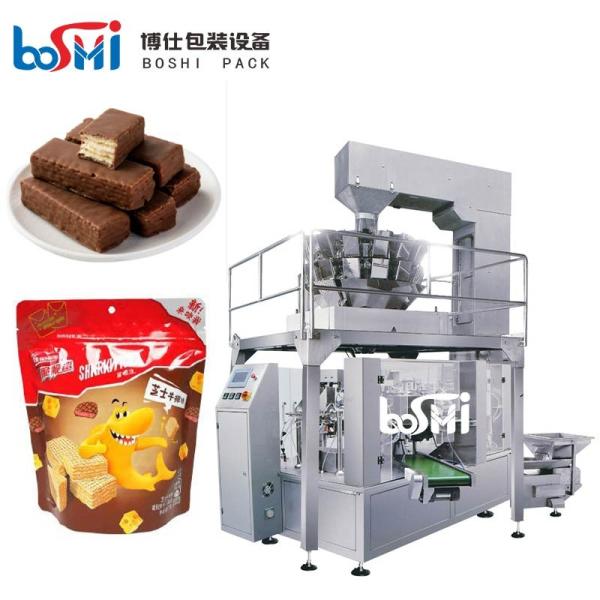

Standup Pouch Dry Food Nuts Bean Doypack Filling Machine Automatic
Standup Pouch Dry Food Nuts Bean Doypack Filling Machine Automatic
Specifications
Brand Name :
BOSHI
Model Number :
BS-160G BS-200G BS-250G BS-300G
Certification :
CE SGS
Place of Origin :
Guangdong, China
MOQ :
One sets
Price :
5000USD-25500USD per set
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
300 sets per year
Delivery Time :
10-15 working days
Packaging Details :
Standard three plywood wooden cases
Key Selling Points :
Multi function packaging machine
Key words :
Automatic Standup Pouch Dry Food Nuts Bean Doypack Filling Packing Machine
Packaging Type :
Doybag
Function :
Wrapping, Labeling, Sealing, date printing
Dimension(L*W*H) :
L 2160 * W 1500 * H 1500 mm
Machine speed :
5-60 bags/min
Voltage :
110v/220v/380v/440v
Film thickness :
0.03-0.1mm
Driven Type :
Pneumatic
Automatic Grade :
Automatic
Packaging Material :
Plastic, Paper
Core Components :
Motor, PLC, Servo driver etc
Warranty of core components :
1 Year
Description

Automatic Standup Pouch Dry Food Nuts Bean Doypack Filling Packing Machine

Applications:

Suitable for Meatball, macaroni, hamburgers, popcorn, dry pasta,oats, puffed food, french fries, biscuit, rice crust,

jelly, candy, pistachio nut, apple flake, dumpling, rice dumpling, chocolate, frozen food, chicken leg,hardware

and medicine such particle, platy, strip and irregular shape.

Product Advantages
1. The pre-made bag packing machine can auto load, pick up bag, open bag, weigh, flll, seal, and output.
2. We have different mold available to meet customer's different product and bag size.
3. New machine design, easy to change bag size and product.
4. Wtih zipper device, other special optional device is accetable.
5. Full machine is made of stainless steel 304, for long service life.

Bag Types
Suitable for 3 side seal bag, 4 side seal bag, handing hole bag, paper bag, stand up bag, zipper bag ,
doypack bag, M bag ,etc.
Technical Parameters
Pre-made bag packing machine technical parameters
Model
BS-200
BS-250
 BS-300
BS-160
Working station
8
 8 8 8
Bag length
100-350 mm
100-350 mm
100-350 mm
100-350 mm
Bag width
70-200 mm
110-250 mm
180-300 mm
80-160 mm
Packing speed
20-60 bags/min
20-60 bags/min
20-60 bags/min
40-80 bags/min
Voltage 380V/50HZ 380V/50HZ 380V/50HZ 380V/50HZ
Power
 3.0KW 3.0KW 4.0KW
4.2KW
Air pressure
0.6-0.8
 0.6-0.8 0.6-0.8 0.6-0.8
Air consumption 0.3 0.3 0.3 0.3
Machine weight 1500KG 1500KG 1800KG 1800KG
Machine size
2160*1600*1500
 2160*1600*1500 2420*1800*1500 1800*1600*1500

Standup Pouch Dry Food Nuts Bean Doypack Filling Machine Automatic

Standup Pouch Dry Food Nuts Bean Doypack Filling Machine Automatic


Machine Details
Standup Pouch Dry Food Nuts Bean Doypack Filling Machine Automatic
Premade Bag Doypack Packing Machine Details :
Standup Pouch Dry Food Nuts Bean Doypack Filling Machine Automatic
