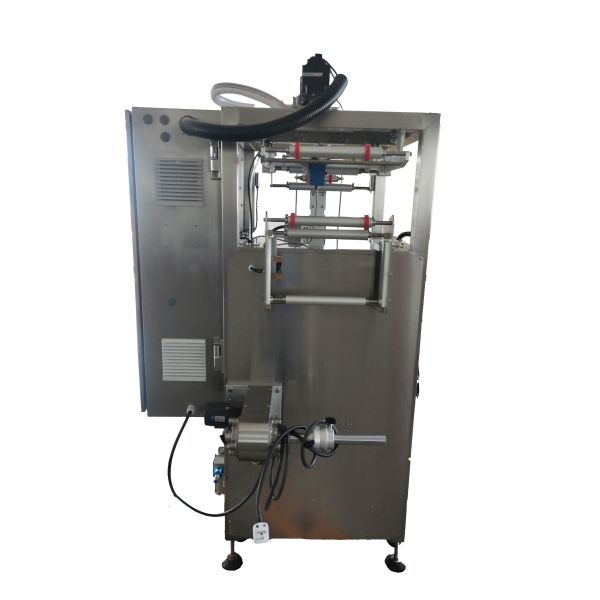

High Accuracy Poly Bag Packing Machine 20-40 Bags/min Stainless Steel
High Accuracy Poly Bag Packing Machine 20-40 Bags/min Stainless Steel
Specifications
Brand Name :
pack mate
Model Number :
EP180
Place of Origin :
made in China
MOQ :
1
Delivery Time :
45work days
Payment Terms :
T/T
Horizontal sealing leak proof line :
1mm (only Applicable To Liquid Packaging)
Weight :
350kg
Cutting method :
Flat Cut Or Serrated Cut (independent Cutter), With A Spacing Of 3mm Between The Cutters
Packaging film :
Composite Packaging Material
Packaging type :
Liquid, Powder, Particles
Speed :
20-40 Bags/min
Sealing form :
Twisted Edge Adhesive Sealing
Packaging film width :
≤ 180mm (standard With 1 Set Of Bag Making Specifications)
Description

High-Accuracy Automatic Bag Packing Machine with JULONG Dual Color Photoelectric Eye

High Accuracy Poly Bag Packing Machine 20-40 Bags/min Stainless Steel

Product Description:

This automatic pouch packing machine is a reliable and efficient packing solution for all types of products. It is designed with PLC control and is highly customizable in terms of size to meet different packaging needs. It is also known as Back Sealing Strip Packaging Machine, and it can range from 20 to 80mm in width and 150mm in length. This machine is capable of providing precise bag making, filling and packaging functions with great accuracy.

This cutting-edge machine is equipped with advanced features such as automatic bagging and sealing, allowing the user to pack products with greater efficiency. Its intuitive design makes it easy to operate and maintain, as well as highly safe and efficient. With its top-notch performance and superior quality, this machine is definitely the perfect choice for any packaging needs.

Features:

  • Product Name: packing machine
  • Sealing form: Twisted Edge Adhesive Sealing
  • Function: Bag Making, filling, package
  • Speed: 20-40 Bags/min
  • Bag pulling method: Variable Frequency Motor Crank Structure, Heat Sealed Bag Pulling
  • Measurement accuracy: ± 1-10% (depending on Packaging Materials and Quantity)
  • Highlight: auto bag filling machine, automatic bag packing machine, automatic pouch sealing machine

Technical Parameters:

Parameter Details
Bag Pulling Method Variable Frequency Motor Crank Structure, Heat Sealed Bag Pulling
Cutting method Flat Cut Or Serrated Cut (independent Cutter), With A Spacing Of 3mm Between The Cutters
Name Back Sealing Strip Packaging Machine
Size Customized
Control PLC Control
Sealing form Twisted Edge Adhesive Sealing
Material Stainless Steel
Weight 350kg
Measurement accuracy ± 1-10% (depending On Packaging Materials And Quantity)
Horizontal sealing leak proof line 1mm (only Applicable To Liquid Packaging)

Applications:

Pack Mate EP180 Automatic Back Sealing Strip Packaging Machine

Pack Mate EP180 Automatic Back Sealing Strip Packaging Machine is a professional equipment for automatic bag filling and packaging. It is made of high quality stainless steel, with a maximum packaging film width of 180mm (standard with 1 set of bag making specifications). It features high speed, precise control, and simple operation. This machine is perfect for a wide range of applications, including food, medicine, daily necessities, chemicals, and tea. It is an ideal choice for mass production.

Features
  • Brand Name: Pack Mate
  • Model Number: EP180
  • Place of Origin: Made in China
  • Minimum Order Quantity: 1
  • Delivery Time: 45work days
  • Payment Terms: T/T
  • Weight: 350kg
  • Function: Bag Making,Filling,Package
  • Packaging film width: ≤ 180mm (standard With 1 Set Of Bag Making Specifications)
Application

Pack Mate EP180 Automatic Back Sealing Strip Packaging Machine is suitable for automatic bag filling and packing for food, medicine, daily necessities, chemicals, and tea. It is an ideal choice for mass production.

Customization:

Packing Machine
  • Brand Name: Pack Mate
  • Model Number: EP180
  • Place of Origin: Made in China
  • Minimum Order Quantity: 1
  • Delivery Time: 45 work days
  • Payment Terms: T/T
  • Horizontal Sealing Width: 8-10mm, with Diagonal Mesh Pattern (spacing of 1mm) or Straight Pattern (spacing of 2mm)
  • Measurement Accuracy: ± 1-10% (depending on packaging materials and quantity)
  • Warranty: 1 Year
  • Type: Automatic
  • Function: Bag Making, Filling, Package
Features:
  • Automatic pouch packing machine
  • Auto bag filling machine
  • Liquid pouch filling machine

Support and Services:

Technical Support and Services for Packing Machine

We offer comprehensive technical support and services for packing machine. Our team of experienced engineers and technicians provide a reliable and professional service that covers everything from installation, maintenance and repair to training and consultation. We also provide customized solutions to meet your needs.

Our technical support and services include:

  • Installation and setup of packing machines
  • Regular maintenance and inspection
  • Troubleshooting and repair
  • Training and consultation
  • Customized solutions

We provide prompt and reliable service to ensure that your packing machine is always running at its optimal performance. If you have any questions or need assistance, please don’t hesitate to contact us.
