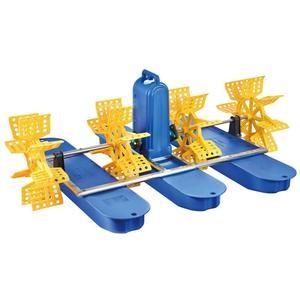

Aquaculture Paddle Water Wheel Pond Aerator Fish Shrimp 2 Impellers
Aquaculture Paddle Water Wheel Pond Aerator Fish Shrimp 2 Impellers
Specifications
Brand Name :
SUNOLTA
Model Number :
FCPWA-1.5
Place of Origin :
China
MOQ :
1 set
Price :
2000USD+
Payment Terms :
T/T
Supply Ability :
60000 SETS/YEAR
Delivery Time :
3-15 Work Day
Product name :
fish pond aerators
Usage :
aquaculture machine aerators
Function :
fish pond aerators
Dynamic Efficiency :
>=1.8(O*2)/kwh
Oxygen increasing capacity :
>=2.25(O*2)/h
Power :
0.75KW
Packaging Details :
Carton
Description

High Efficiency Aquaculture Fish Shrimp Pond Paddle Wheel Aerator 2 Impellers

When the motor is activated, the impellers in the water start to rotate and make contact with the surface. As a result, air is pushed into the water, which helps to increase the oxygen levels. The key to this process is the impellers' ability to create sufficient water splash and a strong water current. The more splash that is created, the more air is taken into the water, leading to a noticeable increase in dissolved oxygen levels.

Another benefit of this process is that the water waves and current generated by the impellers help to eliminate harmful substances such as ammonia, nitrite, and hydrogen sulfide from the water. This results in cleaner, healthier water for aquatic life.

To ensure that our customers receive high-quality products, we use only brand new materials when producing the components for our water oxygenators. Our oxygenators are suitable for use in both freshwater and seawater environments, making them a versatile solution for improving water quality in a variety of settings.

In terms of efficiency, our oxygenators have an impressive oxygen transfer rate of 1.9kgs O2/h. This means that they can effectively oxygenate large volumes of water in a relatively short amount of time, making them an excellent choice for aquaculture and other applications where maintaining optimal oxygen levels is crucial.

Features:
1) Actual-bevel gears are used instead of worm gears, thereby economizing energy with high efficiency, and saving over 20% electric energy over traditional models
2) The accrual-bevel gear is made of chromium-manganese-titanium with carbon-nitride surface treatment. This ensures long usage life spans and high rigidity
3) A mechanical seal is available to prevent oil leakage
4) Inside protectors are available to prevent the motor accidentally burning out
5) PE floats, nylon impellers, and stainless steel shafts and frames are available
6) Our paddle wheel aerators are greatly improved and produced according to the newest international technologies. Adopting whole plastic floats, these aerators have stainless steel transmission shafts and frames
7) In April 2000, these products were examined by the China Fishery Machinery Instruments Equality Supervision Center. All 9 models were evaluated as reaching the SC/T6017-1999 standard
8) With oxygen transfer rates of 2.59kg (O2)/h, 36.3% higher than the standard, power efficiency is 1.71kg (O2)/kWh, 36.8% higher
than the standard

Name
Quantity
Material
Remark
Brushless motor
1 pcs
copper wire motor
DC48V 1000W
L shelf
2 pcs
304 Stainless Steel
Pipe shaft
2 pcs
304 Stainless Steel
800mm Length
Paddle Wheel
4 pcs
Nylon
Float
6 pcs
HDPE
1750mm Length
Connector
2 pcs
Rubber
Bearing bracket
2 pcs
Nylon
Power Distribution Box
1 pcs
circuit breaker
solar controller
DC power supply
Battery
4 pcs
45AH*4
Solar Panel
2 pcs
250W*2

High oxygenation performance :

1 High quality motor expertise design for aquaculture industry

2 Low friction gear reducer with low resistance to decrease energy losses

3 Sturdy stainless steel Frame ensure without any deformation and high durability

4 High performance impeller, replaceable paddle,low maintain cost

5 HDPE float resist impact, acid-alkalinity and sun exposure, one piece blow molded

Working Principle

Powerful features making wave with bottom surface accelerated the exchange of oxygen-rich water to fully utilize photosynthesis of algae to consume organic residues, can save feed, but also purify water, to avoid NH3 and nitrite and other harmful substances. Pond surface waves more easily dissovled oxygen rate,adjust the upper and lower temperature, more conducive to water modulation.

FAQ

Q1. Are you a manufacturer or trading company?
A: We are a manufacturer.

Q2. What's your company's main products?
A: Our company is specialized in kinds of aerators for fish pond and shrimp pond, such as paddlewheel aerator.

Q3. What's the MOQ for your production?
A: NO MOQ.

Q4. What's the lead time?
Usually about 15days-20days, if large quantity, will check the production line and arrange the schedule.

Q5. What's your payment term?
A: 30% T/T in advance, the rest pay off before delivery.

Q6. Where is your loading port?
A: Ningbo, or else port in China as your requirements.
