Specifications
Brand Name :
YAHEA
Model Number :
YH-PA
Certification :
As You Required
Place of Origin :
Changzhou,Jiangsu,China(mainland)
MOQ :
Negotiation
Price :
Negotiation
Packaging Details :
Carton / wooden box package
Delivery Time :
5-8 working
Payment Terms :
Negotiation, L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
800000㎡ Per Month
Name :
Kaptan polyimide tape
Material :
Polyimide
Color :
Coffee
Thickness :
0.03-0.1mm、customized
Width :
2mm-500mm、customized
Length :
33m or custom
Short-term temperature resistance :
>300℃
long-term temperature resistance :
>260℃
Break down voltage :
1000-10000v
Adhesive :
silicone
Use :
Insulation Protection
Description

kaptone polyimide tape Heat Construction electrical motor transformer insulation tape

Product introduction

Polyimide PI Film tape,polyimide film as a substrate,coated on one side of high performance silicone pressure-sensitive adhesive.There are sinlge-sided fluoroplastic from composite materials with or without composite types of materials.Coating precision of 2.5um,no scartches,drawing,and other phenomena,good shear resistance,easy die-cutting excellent heat-resistance and solvent resistance.

Product Parameter

Name Kaptan polyimide tape
Material Polyimide
Color Coffee
Thickness 0.03-0.1mm,customized
Width 2mm-500mm,customized
Length 33m or custom
Adhesive silicone
Short-term temperature resistance >300℃
long-term temperature resistance >260℃

Break down voltage

 1000-10000v
Usage Insulation Protection,electric cables ,electromagnetic wires and motor,Transformer, PCB board, motor, capacitor, peripheral requirements of electronic products

Product Features

Heat resistant tape is a polyester film tape with a high temperature resistant adhesive.

*One-sided self-adhesive.

*Adopts silicone adhesive.

*No residue, protect finger, insulation solder, special for BGA repairing.

*Used for fixing the lithium battery's positive pole and negative pole in high grade electric appliance.

*Greatly protect the PCB flame plating.

*100% brand new and high quality.

*Very durable, almost can not be broken. Easy to tear, simply to stick.

Product application

Suitable for electronic circuit board wave solder masking, protection of gold fingers and high-grade electrical insulation, motor insulation, and lithium battery positive and negative ear fixation

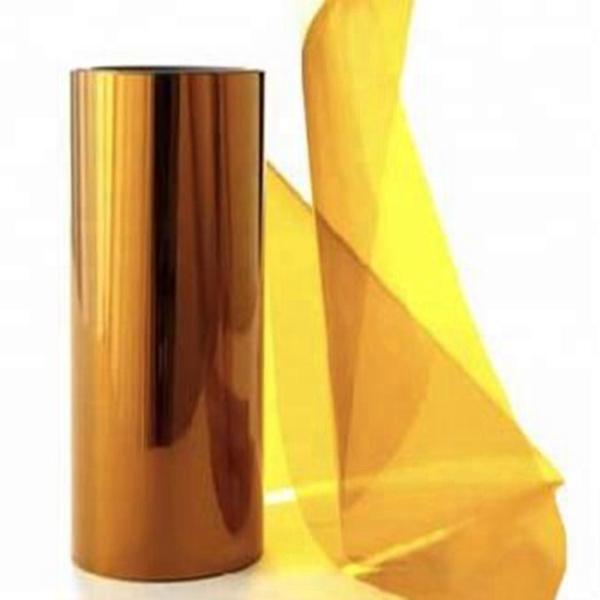

Kaptan polyimide tape

Insulation Protection Kapton Polyimide Tape Heat Construction Electrical Motor Transformer

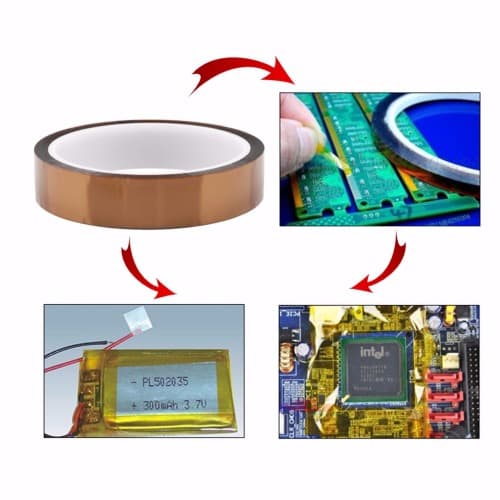

Kaptan polyimide tape application

Insulation Protection Kapton Polyimide Tape Heat Construction Electrical Motor Transformer
