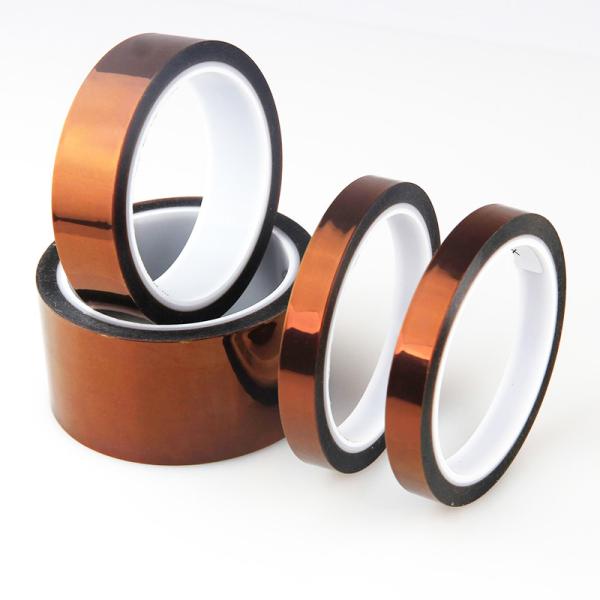

Insulation Silicon Anti Static Kapton Polyimide Tape For PCB Protection
Insulation Silicon Anti Static Kapton Polyimide Tape For PCB Protection
Insulation Silicon Anti Static Kapton Polyimide Tape For PCB Protection
Insulation Silicon Anti Static Kapton Polyimide Tape For PCB Protection
Insulation Silicon Anti Static Kapton Polyimide Tape For PCB Protection
Insulation Silicon Anti Static Kapton Polyimide Tape For PCB Protection
Specifications
Brand Name :
YAHEA
Model Number :
YH-PA
Certification :
As You Required
Place of Origin :
Changzhou,Jiangsu,China(mainland)
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
Negotiation, L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
800000㎡ Per Month
Delivery Time :
5-8 working
Packaging Details :
Carton / wooden box package
Name :
Kaptan polyimide film
Material :
Polyimide Film
Color :
Brown or Amber color
Thickness :
0.03,0.04,0.05,0.06,0.08,0.1,0.18mm custom
Width :
2mm-500mm
Length :
33m or custom
Short-term temperature resistance :
300℃
long-term temperature resistance :
260℃
Break down voltage :
1000-10000v
Adhesive :
silicone
Use :
cable, ESD Protection
Description

Insulation Silicon Anti Static Kapton Polyimide Tape for PCB protection

Product introduction

Kaptons Tape is Made of Polyimide Film Double Sided Coated With Silicone Adhesive For Easy Release,Compatible With a Wide Temperature Range,Can Be Used In Applications At Temperatures As Low As -69℃ and As High As 260℃,You Can Put a Soldering Iron On Kaptons Tape and It Will Not Melt.Kapton Tape Is Also Known As Polyimide Kaptons Tape,Is An Electrical Insulation,High Temperature Tape or Heat Resistant Tape.

Product Features

(1).Good initial adhesive and holding force;

(2).No residue,No wrap and No falling off when spray;

(3).Solvent resistance

(4).Acid and alkali resistance

(5).Long term heat resistance for 30mins when maximum 230℃

(6).Electrical insulation

Product Parameter

Name Kaptan polyimide film
Material

Polyimide Film
Color Brown or Amber color
Thickness 0.03,0.04,0.05,0.06,0.08,0.1,0.18mm custom
Width 2mm-500mm
Length 33m or custom
Adhesive silicone
Short-term temperature resistance 300℃
long-term temperature resistance 250℃
Break down voltage 1000-10000v
Usage widely used in high temperature masking protection in electronics industry

Product application

Used as electrical insulation for winding transformers, motors, coils, capacitors and variable frequency power supplies in the electronics industry.

Kaptan polyimide film

Insulation Silicon Anti Static Kapton Polyimide Tape For PCB Protection

Kaptan polyimide film application

Insulation Silicon Anti Static Kapton Polyimide Tape For PCB Protection

Packing

Insulation Silicon Anti Static Kapton Polyimide Tape For PCB ProtectionInsulation Silicon Anti Static Kapton Polyimide Tape For PCB Protection

pa
