Fluid Management Manual Paint Colorant Dispenser High Accuracy With POM Plastic Canister
Fluid Management Manual Paint Colorant Dispenser High Accuracy With POM Plastic Canister
Specifications
Brand Name :
YIJIU
Model Number :
YJ-1M
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 SET
Supply Ability :
50 SETS PER MONTH
Delivery Time :
Depend on order quantity
Packaging Details :
PLYWOOD CASE
Application Range :
Water based, solvent based, universal colorant
Canister :
POM Plastic canister in 2.0L
Maximal Dispensing at one time :
60 ML
Accuracy :
1/384Y≈0.077ml
Rated Voltage :
110V/220V±10%
Description

High accuracy paint colorant dispenser , manual paint color tinter

Features

The Rotating table is made by stretch thermoforming, instead of welding, the floor stander is make of thick iron plate, POM plastic canisters or stainless steel canisters, insure good durability. Double adhisive sticker gauges or Single laser gauges for optionThe nozzle can be disassemble easily, it's convinient to clear it. The program was set automatically stirring every four hours for five minutes to prevent the colorant to subside, you can also press the button to stirring whenever you want.

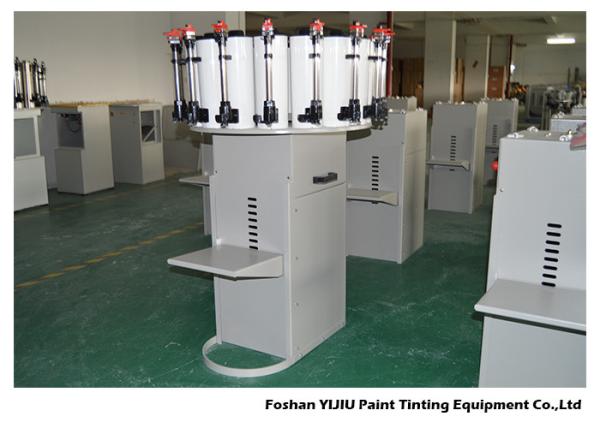

Sample show

Fluid Management Manual Paint Colorant Dispenser High Accuracy With POM Plastic Canister

Technical Data

Canister Capacity (plastic canister) 2.0L,(stainless steel canister)2.3L
Maximal single Dispensing 60 ml
Accuracy 1/384 Y or 0.077ml
Net Weight (12 cans) 51KG, (16 cans) 58KG.
Machine Size 720(l)*720(w)*1240(h)mm--12 cans

860(l)*860(w)*1240(h)mm--16 cans

Options:

Gauge qty single laser gauge or double adhesive sticker gauge;
Gauge unit ml, 1Y=29.574ml, 1Y=31.25ml

Shipping information:

Gross Weight (12 cans) 89KG, (16 cans) 102KG.
Packing Size

920(l)*570(w)*750(h)mm--12 cans

920(l)*755(w)*735(h)mm--16 cans

Manual paint dispneser machine FAQ

1. Do you make the manual dispenser with 24 or 32 canisters?
Normally not, but if the order is big like one hundred sets, please contact us!

2. Can I only order the upper part, no need the floor stander?

Yes, you can!

3.Can you make my logo onto the machine?

Yes !

3. What's the accuracy (minimum dispensing )?
0.077ml or 1/384Y

4. What's the color of the canisters?

black or white can be chose


5. Can it stirring to prevent the clorant from subsiding?

Yes! it can. The program was set automatically stirring every four hours for five minutes to prevent the colorant to subside, you can also press the button to stirring whenever you want.

6. What's the scale/gauge rule?

three options:

a. 60ml (unit: 1ml, 0.1ml)

b. 1Y=29.574ml (unit : 1/48 , 1/384 US oz)

c. 1Y=29.574ml (unit : 1/64 , 1/384 US oz)

Our Service

Testing of equipments: all our machines are tested before shipment. All machines are at its optimal state when shipped.

Warranty Service: Warranty period is 12 months. Within guarantee period,we can help you judge the fault according to the failure phenomenon by E-mail. and send replacement part to you except for the man-made factors.

Training:You can send personnel to our factory for free training on the machine.

Inspection: You can send inspectors to our factory for inspection or we self-inspect following the technical requirements mentioned in contracts.
