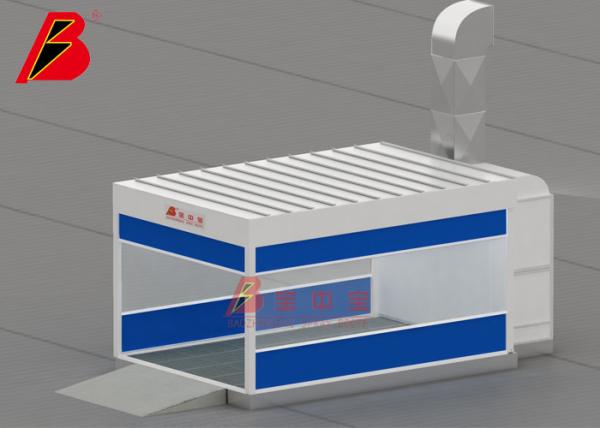

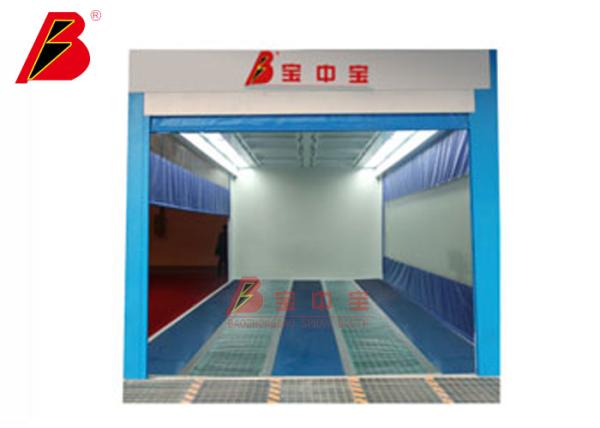

Luxury Type Paint Prep Station For Sale Electric curtain Preparation Room BZB-6600

Cabin System
1. Roof air plenum construction: Cold rolling bending sprayed plate; Roof Panel: Galvanized steel,

Installation type: steel rope hoisting.
2. Front and two sides: PVC rolling curtain, remote control.
3. Back wallboard: EPS steel skin panel, 50mm Thick.
4. Basement: Anti-embroidered, Two Grid& Three Embossed Plate for walking platform;

novel and beautiful frame; good strength, stiffness, stability and impact.
5. Ramps: Three Ramps made of 3.0mm thick embossed plate, 900mm wide..

Circulation System
1. The air is exhausted through the basement.
2. Centrifugal Fan Model: YDW-4.5AL1; Capacity: 12000m3/h; Pressure: 800Pa; Speed: 900rpm,

2 sets, power: 4kw/per set. One is inlet fan, the other is exhaust fan.
3. Fan Cabin: Section steel framework, assembly of coated steel plate cabin; Construction: Solid,

beautiful and easy for maintenance.

Air Purification system
Filtering Structure: Multi-storey fixed under the top network, no corrosion,

easy to replace the filter and can capture granules larger than 5μm.

Environmental System
The first floor filter under the grids can capture big granules. The second fiberglass

equipped in exhaust cabin can capture rest granules.

Lighting System
Ceiling Light: 6 sets*4pcs=24pcs 36w Philips Lamp; Light can make the room bright and uniform.

Ballasts Professional and durable.

Controlling System
It is assembled by good electronic components. Main circuit has Multi-protection. Working Switch,

Light Witch, Emergency Stop, Breakdown Alarm.

Specification for Preparation Room BZB-6100

About Us:

JingzhongJing(JZJ) Group company was set up in 1999,now is a large

comprehensive company which
specialies in the design,manufacture,sales,service for Pre-treatment,

Painting lines and Exhaust Gas
treatment equipments.
Main Product:
Spray booth/Preparation room/Water testing line for Car/Bus/Truck/Train/Boat/aircraft ect;

Sand Blasting
Room/Shot Blasting Room/Power Coating/Painting line,Exhaust gas(Vocs treatment equipment

for all kind
of Industry Product ect.
Two Produce Base:
China South Produce Base (In Guangzhou,Since 1999)

China North Produce Base (Jiangsu,Since 2007)

Some of our Project.


----------------------------------------FAQs-----------------------------------------

Are you Trade company or manufacturer?

We are the manufacturer with export liscence.We have two factory in Guangzhou and in Jiangsu,China.

How can we cooperation?

How can we cooperation?
1. Turn Key Project:
Our company will be responsible to help you to do the production line desing,manufacturing,installation,
debugging and your personnel trainging jobs,Also we will provide you one-stop service for your
production facilities procurement.
2. Equipment Supply:
Our company will not only provide you the equipments,but also will offer you the onsite installation
instruction and guidance as well.
3. Other coopeation style.
Keep flexible and discuss.

How about after sale serivce?

1. Provide technical support and production line upgrade
2. Feedback withini 12h after receive fault notification or service requirement
3. Free training on the user’s manual
4. User-friendly English manual or operation video for machine using and maintanence.
5. On-the spot trainging and installation can be met if required.
6. On time delivery.
7. One Year Gruantee.
