Automatic European Wood Pallet Legs Nailing Machine
Automatic European Wood Pallet Legs Nailing Machine
Automatic European Wood Pallet Legs Nailing Machine
Automatic European Wood Pallet Legs Nailing Machine
Automatic European Wood Pallet Legs Nailing Machine
Automatic European Wood Pallet Legs Nailing Machine
Specifications
Brand Name :
ThoYu
Model Number :
TYLD-720
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C, D/A, Western Union, MoneyGram
Supply Ability :
60 sets per month
Delivery Time :
10-120 working days
Packaging Details :
Strong wooden pallet for global shipping
Product name :
Pallet Legs Nailing Machine
Board/block thickness :
less than 130 mm
Air pressure :
8 MPa
Coil nails :
length< 57 mm
Nailing gun :
3 pieces MAX CN70
Control :
PLC touch screen
keywords :
pallet legs nailing machine,wood pallet nailing machine,european pallet nailing machine
Description

PLC Control Automatic European Wood Pallet Legs Nailing Machine

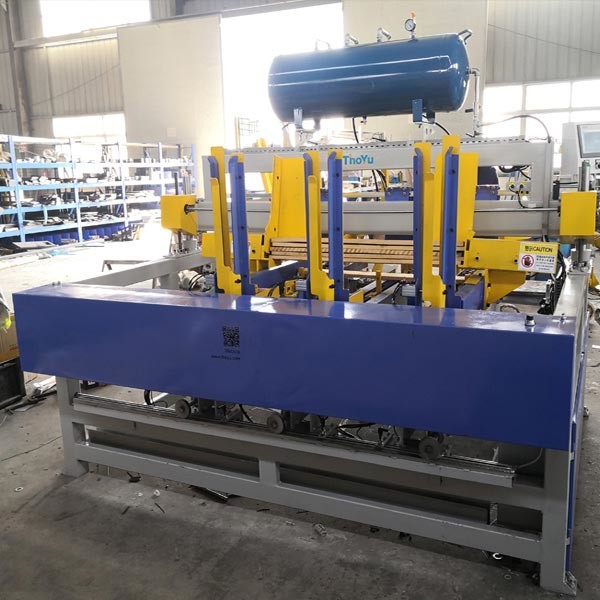

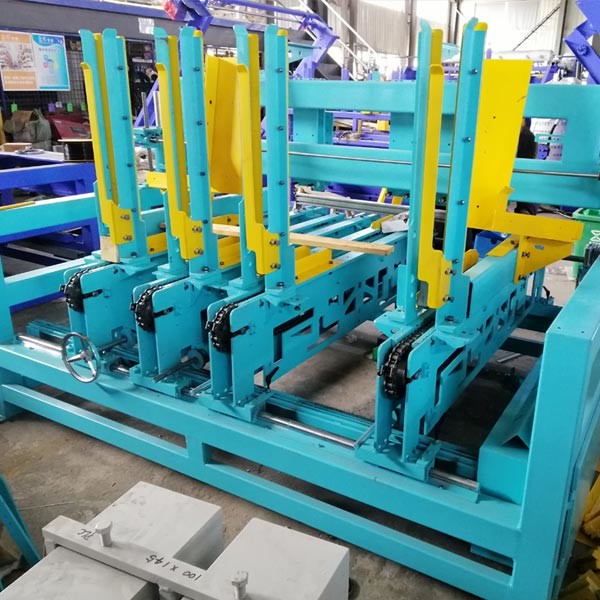

Automatic wood pallet legs nailing machine has two parts, one is the feeding part, and another is the nailing part. And it can nail wood pallet leg automatically, and can make 8~10 pcs/min, with high efficiency. Also, save the labor cost, automatic European wood pallet legs nailing machine just need one worker can operate, manual feeding the blacks, then machine working nailing pallet leg aromatically.

Automatic European Wood Pallet Legs Nailing Machine

Pallet Legs Nailing Machine Technical Parameters

Wood board length 800-1350 mm
Wood board width 80-150 mm
Wood board thickness 12-20 mm
Wood block length 80-150 mm
Wood block width 80-150 mm
Wood block thickness 80-100(110) mm
Wood board + wood block thickness less than 130 mm
Capacity 600-720 pieces/hour
Nailing gun 3 pieces MAX CN70
Coil nails 3000 nails/coil, max. 57 mm length,
Nailing motor power 2.25 kW
Feeding block motor power 0.75 kW
Total power 3 kW
Voltage 380 V, 50 Hz, 3phase (Can customize)
Air pressure 8 MPa
Electric components Schneider brand
Pneumatic components Airtac brand
PLC touch screen Siemens
Machine dimension 6 m*2.4 m*2.4 m (L*W*H)
Machine weight 1100 kg

Automatic European Wood Pallet Legs Nailing Machine
