Diamond Point Hot Dip Galvanized Coil Roofing Nails 15 Degree Round Head
Diamond Point Hot Dip Galvanized Coil Roofing Nails 15 Degree Round Head
Diamond Point Hot Dip Galvanized Coil Roofing Nails 15 Degree Round Head
Diamond Point Hot Dip Galvanized Coil Roofing Nails 15 Degree Round Head
Diamond Point Hot Dip Galvanized Coil Roofing Nails 15 Degree Round Head
Diamond Point Hot Dip Galvanized Coil Roofing Nails 15 Degree Round Head
Specifications
Brand Name :
SUNWELL
Model Number :
3.05×32mm
Certification :
ISO JIS CE
Place of Origin :
CHINA
MOQ :
200 Cartons
Price :
$8.58-$16.88 per cartons
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000 Cartons/Day
Delivery Time :
10-15 Days
Packaging Details :
120*60
Material :
Q195
Shank :
Ring
Point :
Diamond Point
Finish :
EG,HDG
Packing :
120*60
Head :
Round Head
Description

MIAMI-DADE COUNTRY APPROVED ROOFING NAILS 1-1/4" EG Yellow Color Coil Roofing Nail

Product Description

As we know, Florida receives some of the harshest weather in the world. High winds, when coupled with corrosive salt water, can lead to extremely detrimental product failures.

Low quality "EG" nails quickly rust when exposed to salt water. Our double electrical galvanized nails are dipped twice into molten zinc, giving them an unparalleled corrosion-resistant coating.

Specification 0f Roofing Coil Nails


Material: Steel Q195
Head Diameter: 5.0--8.0mm
Head Thickness: 1.00-0.1mm
Shank Type: Smooth/ Screw/ Ring
Shank Diameter: .120''
Welding Position: 8-19mm/19-37mm/19-52mm
Point Type: Diamond /Blunt /Chisel
Finish: Bright/Yellow Painting/E G/H.D.G/M.G/ Stainless steel

ASTM F 1667

Property Test Method Result Requirement
Physical Properties
Ductility,0.125"Mandrel ASTM F 680 Pass Pass
Tensile Strength ASTM F 680 NOT tested Not Required
Dimensions and Tolerances
Length,overall,in ASTM F 680 1.25 Report
Diameter,at thread crest,in ASTM F 680 0.124 Report
Length tolerance,in ASTM F 680 <1/64 ±1/16
Shank diameter tolerance,in ASTM F 680 0.001 ±0.004
Head diameter tolerance,%(power driven) ASTM F 680 3 Report
Zinc Coating
Coating Process ASTM F 1667 Electrogalvanized Hot dip or electrogalvanized
Coating amount,after forming,oz/ft³ ASTM A 90 0.31 ≥0.28
Other
Workmanship ASTM F 680 Pass Free from imperfection,dean,freee of corrosion
Altered Nail Shapes and Deformations ASTM F 1667 Annular Ring Annular Ring

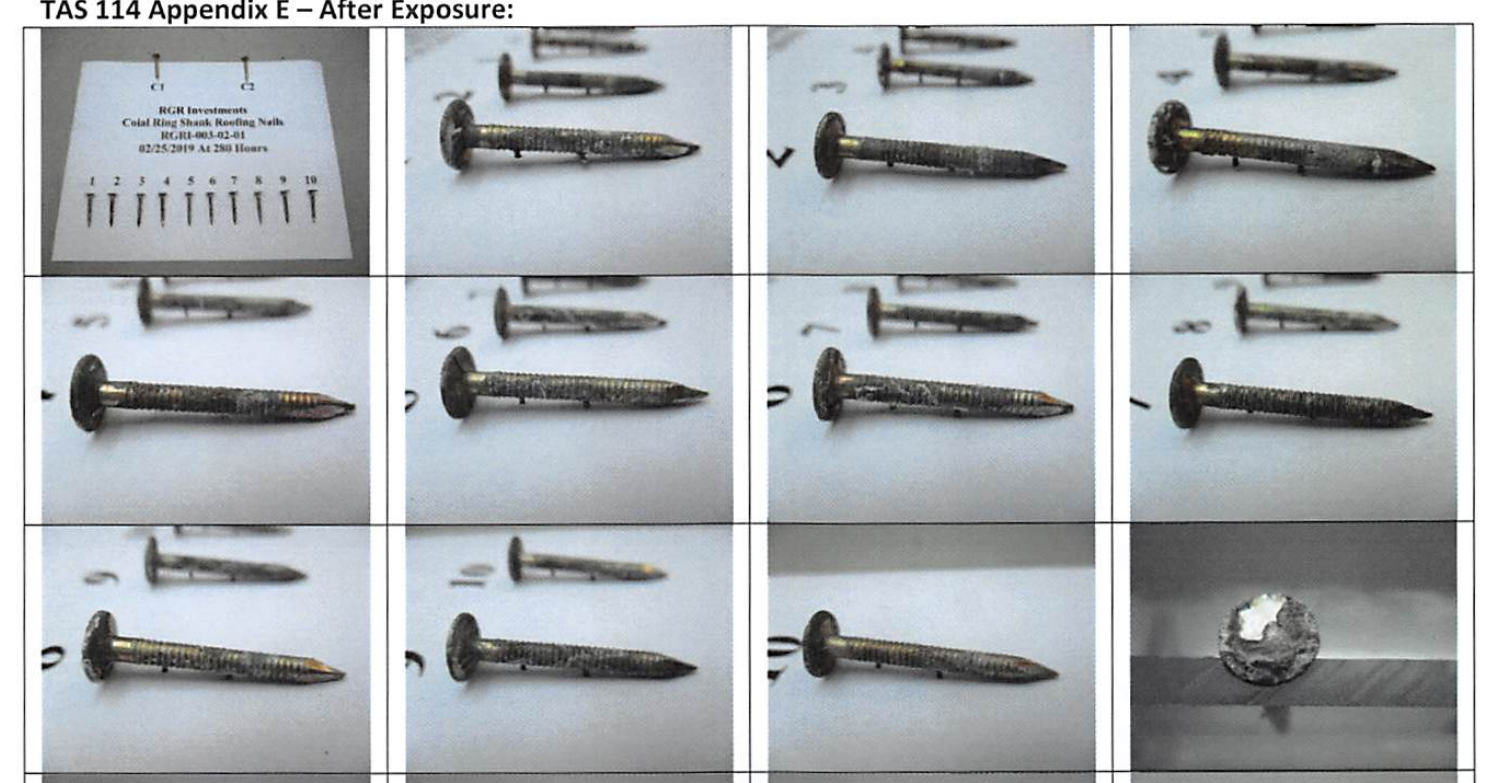

TAS 114 APPENDIX E

Property Test Method Specimen NO. Result Requirement
Corrosion Resistance,(% of surface area)After 140 cycles ASTM G85/TAS 114 App.E/ASTM D 610

1

2

3

4

5

6

7

8

9

10

0

0

0

0

0

0

0

0

0

0

≤5

≤5

≤5

≤5

≤5

≤5

≤5

≤5

≤5

≤5

Statement of Compliance:

The product was tested in accordance with ASTM F 1667-15 Standard Specication For Driven Fasteners:Nails,

Spikes,and Staples and Miami-Dade Country Checklist #0195 for the certification and listing of roofing fasteners,The product

demonstrated compliance with ASTM F 1667 for a ring shank roofing nail,and met the requirements for corrosion resistance

after 140 cycles of TAS 114 Appendix E.

Diamond Point Hot Dip Galvanized Coil Roofing Nails 15 Degree Round Head

Diamond Point Hot Dip Galvanized Coil Roofing Nails 15 Degree Round Head

Diamond Point Hot Dip Galvanized Coil Roofing Nails 15 Degree Round Head
