Specifications
Place of Origin :
Jiangsu, China
Model Number :
HGL-C
MOQ :
1000 kilograms
Price :
$1.30/kilograms 1000-4999 kilograms
Type :
Mezzanine
Material :
Steel
Feature :
Corrosion Protection
Use :
Industrial
Depth :
Customized
Weight Capacity :
300-1500kgs/sqm
Width :
Customized
Height :
Customized
Color :
RAL System
Description
Customized Width and Depth 500kg Load Mezzanine Floor with Solid or Perforated Surface
Product Description
-The steel mezzanine structure is fully assembled.
-Floor is easy to match the lighting system.
-Cargo is transported to the higher floor by forklifts, lifting platforms or freight elevators, and then transported to designated locations by trolleys or hydraulic pallet trucks.
-The column distance of this steel mezzanine is usually 4m to 6m.
-The height of the first floor is about 3m, and the height of the second and third floors is about 2.5m, or height based on
storage needs.
-The floor load is usually from 300kgs/m2 to 1000kgs/m2.
-This type of mezzanine can combine storage and management with the closest distance, and can be used as a warehouse office upstairs or downstairs.
Specification
Rack Type
steel mezzanine
Access Style
flexiable
Structure
knock down or assembled,welded structure available
Working Asile
around 1000mm,depends on customer's storage needs
Load Capacity & Dimension
Load capacity
300～1000kgs/square meter
column distance
3000mm～9000mm
height
3500mm～10000mm
tier
≥1
Components
core components
column(post), main beam, secondary beam, floor,staircase
optional components
handrail, door, bracing, separating mesh, etc.
Core Components Material
upright
square steel tube, round steel tube, H steel
beam
C-shape steel, H steel
floor

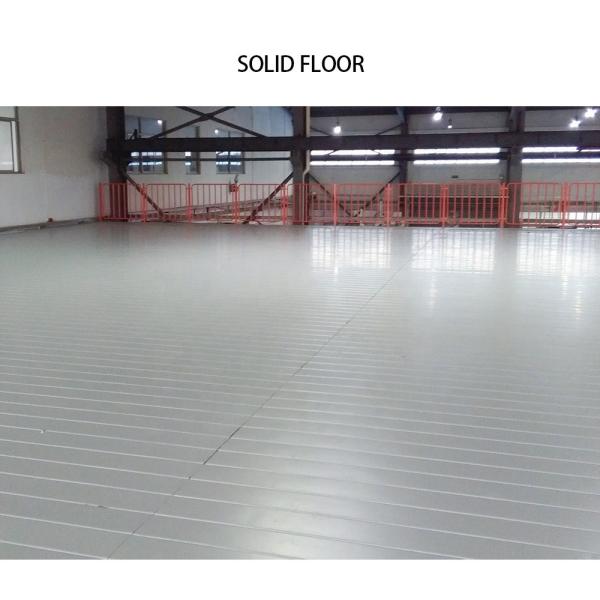

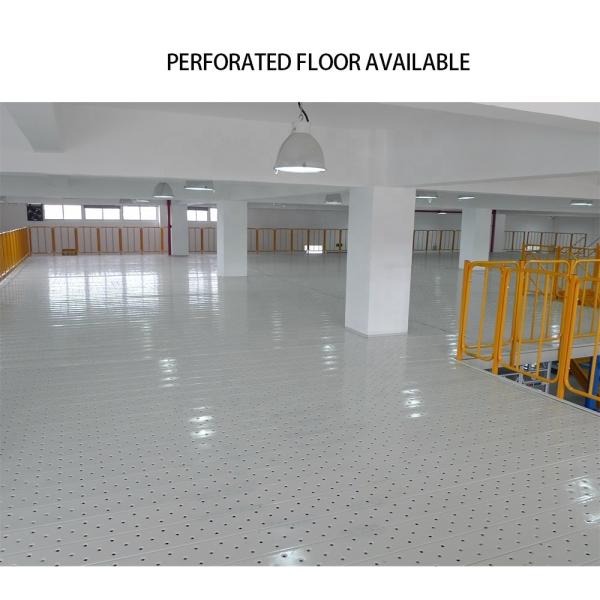

interlock floor, checkered plate, plan plate, steel grating, wooden plate
Material
Q215,Q235(ss400),Q355(S355B,S355JR)
Finish
Epoxy resin electrostatic spraying(powder coating)
Coating thickness
60um or more
Color
ral5015(sky blue),ral5005(signal blue),ral2004(pure orange),ral1003(signal yellow),ral7035(light grey)
Customized colors are available when order above 2*40gp containers

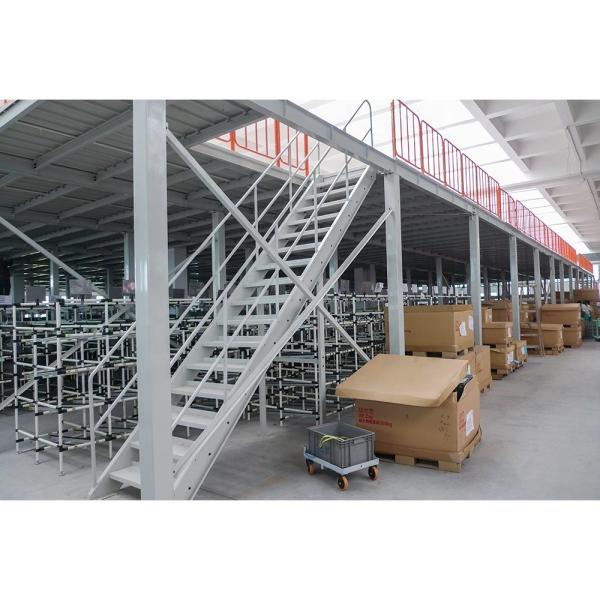

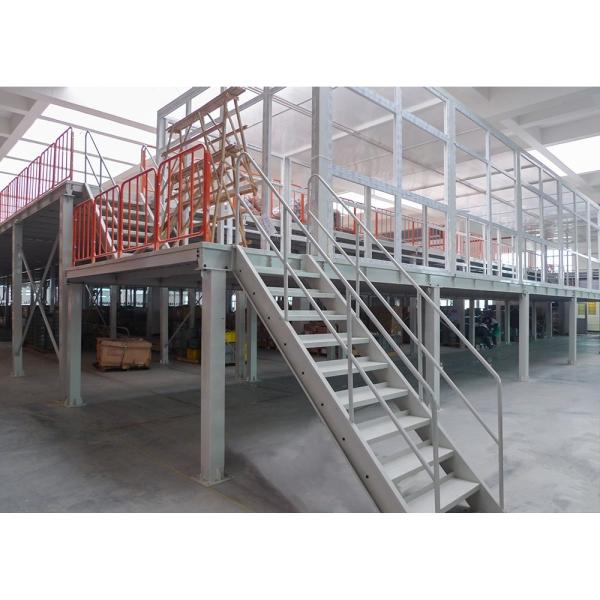

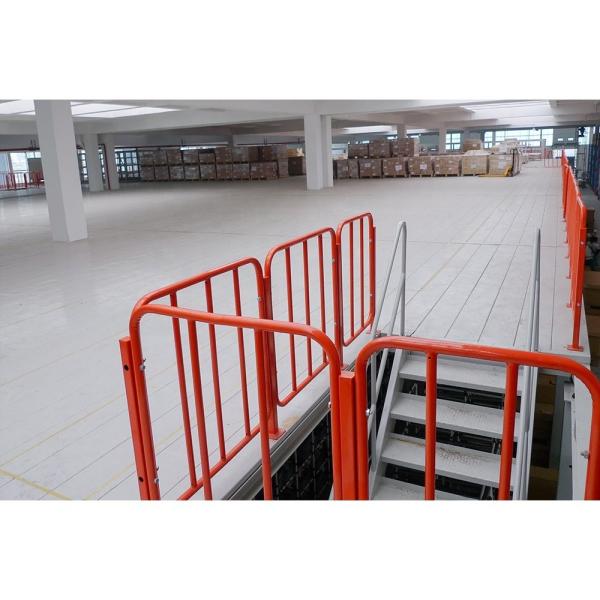

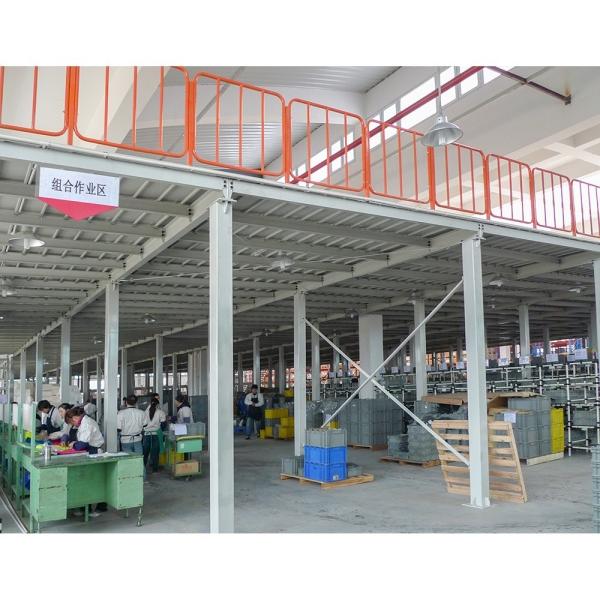

Project show
Customized Width and Depth 500kg Load Mezzanine Floor with Solid or Perforated Surface
Customized Width and Depth 500kg Load Mezzanine Floor with Solid or Perforated Surface
Customized Width and Depth 500kg Load Mezzanine Floor with Solid or Perforated Surface
Customized Width and Depth 500kg Load Mezzanine Floor with Solid or Perforated Surface
Packing & Delivery
To suit different clients needs,HBrack use different storage method.Following are rules followed.
For container order: stretch film+carton board+packing belt+plywood stick+plywood pallet leg
For less than container order:plywood box or other that can keep the product safe during transportation
Other: based on clients' needs, such as vacum packing etc.
Customized Width and Depth 500kg Load Mezzanine Floor with Solid or Perforated Surface
Our Services
Customized Width and Depth 500kg Load Mezzanine Floor with Solid or Perforated Surface
FAQ
Question 1: Are you factory or trading company?
Answer 1: We are factory and also do trading products related to warehouse rack.
Question 2:Do you provide sample? Is it free or extra?
Answer 2: We provide sample parts free charged and you just need to pay the freight. When need whole sample rack for testing the possibility, please contact us for sample cost.
Question 3: I’d like to visit you. Which city should I go?
Answer 3: We are in Nanjing. When needed, we can help you book hotel, traffic ticket. And we will pick you up to the destination place. We have sales person and driver who will be with you during the visit. You don’t have to worry about the traffic matter.
Question 4: Why choose you?
Answer 4:
1. HBrack have engineers who are professional in design warehouse rack more than 10 years and could handle from simple structure to complex one.
2. Your money is safe with HBrack. We accept trading through 3rd party. The sales person have rich experience in warehouse rack, all the personal information is trackable.
3. HBrack offer different design to help client control budget.
