VNA Selective Pallet Rack for High Density Warehouse Storage Height 1500-12000mm
VNA Selective Pallet Rack for High Density Warehouse Storage Height 1500-12000mm
VNA Selective Pallet Rack for High Density Warehouse Storage Height 1500-12000mm
VNA Selective Pallet Rack for High Density Warehouse Storage Height 1500-12000mm
VNA Selective Pallet Rack for High Density Warehouse Storage Height 1500-12000mm
VNA Selective Pallet Rack for High Density Warehouse Storage Height 1500-12000mm
VNA Selective Pallet Rack for High Density Warehouse Storage Height 1500-12000mm
VNA Selective Pallet Rack for High Density Warehouse Storage Height 1500-12000mm
VNA Selective Pallet Rack for High Density Warehouse Storage Height 1500-12000mm
VNA Selective Pallet Rack for High Density Warehouse Storage Height 1500-12000mm
VNA Selective Pallet Rack for High Density Warehouse Storage Height 1500-12000mm
VNA Selective Pallet Rack for High Density Warehouse Storage Height 1500-12000mm
Specifications
Place of Origin :
Nanjing, China
Model Number :
HTP
MOQ :
1000 kilograms
Price :
$1.30/kilograms 1000-4999 kilograms
Type :
Vna Pallet Rack
Material :
Steel
Feature :
Corrosion Protection
Use :
Warehouse Rack
Depth :
800-1500mm
Weight Capacity :
500-4000kgs/pair beam
Width :
1000-3900mm
Height :
1500-12000mm
Usage :
Industry
Color :
Blue, Orange, Yellow, Green etc.
Description

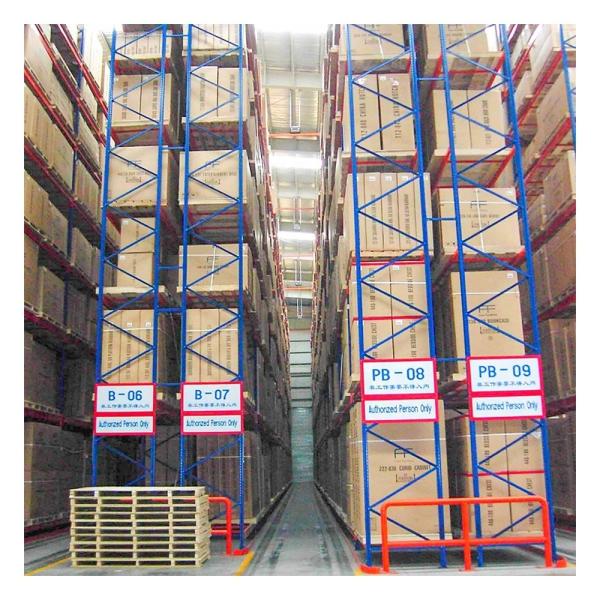

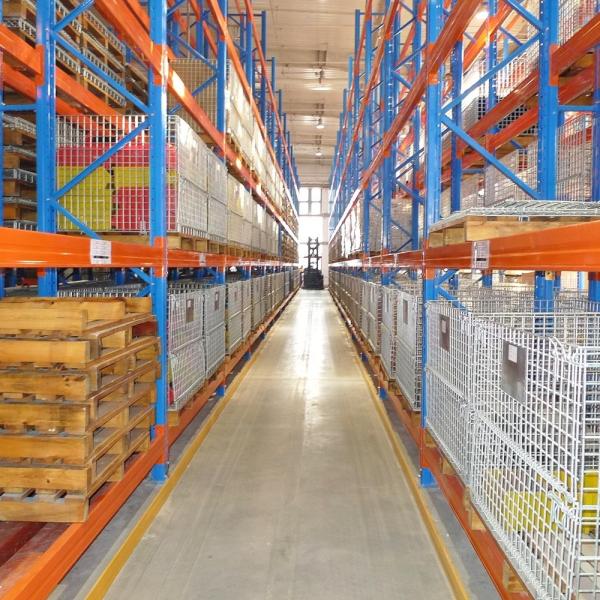

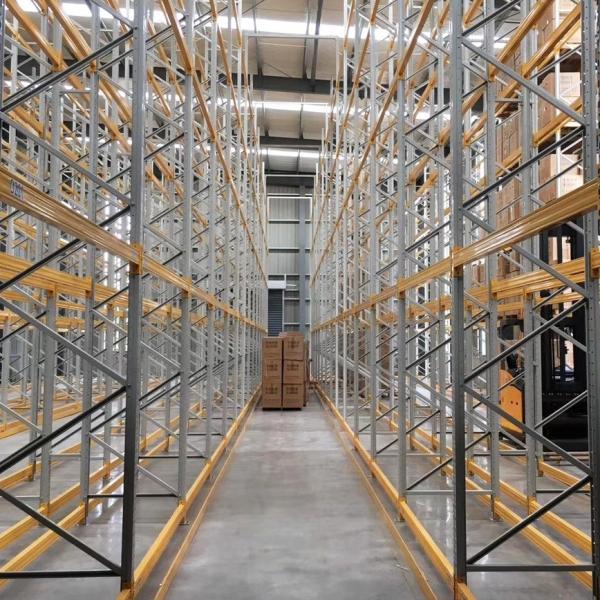

Very narrow aisle pallet rack (abbreviated VNA pallet rack) share similar structure as adjustable pallet rack. The difference is vna pallet rack has narrow aisle than adjustable pallet rack, which lead to high use of warehouse space. Its cost is a little higher than adjustable pallet rack for guide rail and bottom beam are needed. And the forklift for this rack model is 3-way forklift, the cost of which is higher than commonly used forklift.
VNA Selective Pallet Rack for High Density Warehouse Storage Height 1500-12000mm
VNA Selective Pallet Rack for High Density Warehouse Storage Height 1500-12000mm
Specification
Rack Type
VNA very narrow aisle pallet rack
Rack Cost
Low, Medium Low√,Medium,Medium high,High,Higher
Pick-up Mode
flexiable
Structure
knock down or assembled,welded structure available
Forklift Asile
around 1700mm,depends on customer's forklift parameter
Load Capacity & Dimension
Load capacity
≤4000kgs/beam pair
length
950mm～3700mm
depth/width
700mm～1500mm
height
≤12000mm
level
≥2
Components
core components
frame(upright,also called column or post,bracing,base plate,fasteners),beam,(aisle guide)
optional components
spacer,wire mesh decking,board,back stopper,top tie,side mesh,pallet support,back bracing,etc.
Core Components Specification
upright section
face
80mm,90mm,100mm,120mm
height
60mm,67mm,70mm,95mm,135mm
thickness
1.5mm,1.8mm,2.0mm,2.3mm,2.5mm,3.0mm
adjust step
75mm
beam section
height
80mm,100mm,110mm,120mm,130mm,140mm,160mm,180mm
width
50mm
thickness
1.5mm,2.0mm
Material
Q235(ss400),Q355(S355B,S355JR)
Finish
Epoxy resin electrostatic spraying(powder coating)
Coating thickness
no less than 60um for average thickness
Color
ral5015(sky blue),ral5005(signal blue),ral2004(pure orange),ral1003(signal yellow),ral7035(light grey)
Customized colors are available when order above 2*40gp containers
Packing & Delivery
To suit different clients needs,HBrack use different storage method.Following are rules followed. For container order: stretch film+carton board+packing belt+plywood stick+plywood pallet leg For less than container order:plywood box or other that can keep the product safe during transportation Other: based on clients' needs, such as vacum packing etc.
VNA Selective Pallet Rack for High Density Warehouse Storage Height 1500-12000mm

FAQ
Question 1:
What should I provide to get a detailed quote?
Answer 1:
Situation 1: When you have detailed selective pallet racking drawing, provide us the drawing.
Situation 2: When you don’t have drawing, provide us following information:
2.1 Pallet size with product on (length, width and height);
2.2 Forklift entry side;
2.3 Max. Palletized product weight;
2.4 Available warehouse height for storage rack or the storage level you are looking for;
2.5 Warehouse size for storage rack (length, width and height);
2.6 Storage temperature.
Situation 3: When above 2 situation don’t suit you, it is also to get a detailed price. What you do is contact us.

Question 2:
Do you provide sample? Is it free or extra?
Answer 2:
We provide sample parts free charged and you just need to pay the freight.

Question 3:
I’d like to visit you. Which city should I go?
Answer 3:
We have office and factory in Nanjing. Before you come, we will help you book hotel when needed. When you arrive at the Nanjing
International airport, we will pick you up and take to hotel or directly to factory. We have sales person and driver who will be
with you during the visit. You don’t have to worry about the traffic matter.

Question 4:
Why choose you?
Answer 4:
1. Cooperation; we have many years’ experience in storage rack industry and know the importance of cooperation. Happy
cooperation is what we have been working on.
2. Provide not only product but also sourcing service.
3. Committed to providing customers what suit them best than the most.
