1500-12000mm Height VNA Pallet Rack System for High Density Storage in Warehouse
1500-12000mm Height VNA Pallet Rack System for High Density Storage in Warehouse
1500-12000mm Height VNA Pallet Rack System for High Density Storage in Warehouse
1500-12000mm Height VNA Pallet Rack System for High Density Storage in Warehouse
1500-12000mm Height VNA Pallet Rack System for High Density Storage in Warehouse
1500-12000mm Height VNA Pallet Rack System for High Density Storage in Warehouse
1500-12000mm Height VNA Pallet Rack System for High Density Storage in Warehouse
1500-12000mm Height VNA Pallet Rack System for High Density Storage in Warehouse
1500-12000mm Height VNA Pallet Rack System for High Density Storage in Warehouse
1500-12000mm Height VNA Pallet Rack System for High Density Storage in Warehouse
1500-12000mm Height VNA Pallet Rack System for High Density Storage in Warehouse
1500-12000mm Height VNA Pallet Rack System for High Density Storage in Warehouse
Specifications
Place of Origin :
Nanjing, China
Model Number :
HTP
Packaging Details :
Stretch film+carton strip+plywood stick+plywood pallet leg+packing belt
Supply Ability :
2000 Kilogram/Kilograms per Month
MOQ :
10 kilograms
Price :
$0.90 - $1.50/kilograms
Type :
Vna Pallet Rack
Material :
Steel
Feature :
Corrosion Protection
Use :
Warehouse Rack
Depth :
800-1500mm
Weight Capacity :
500-4000kgs/pair beam
Width :
1000-3900mm
Height :
1500-12000mm
Usage :
Industry
Color :
Blue, Orange, Yellow, Green etc.
Port :
Nanjing, Shanghai
Description

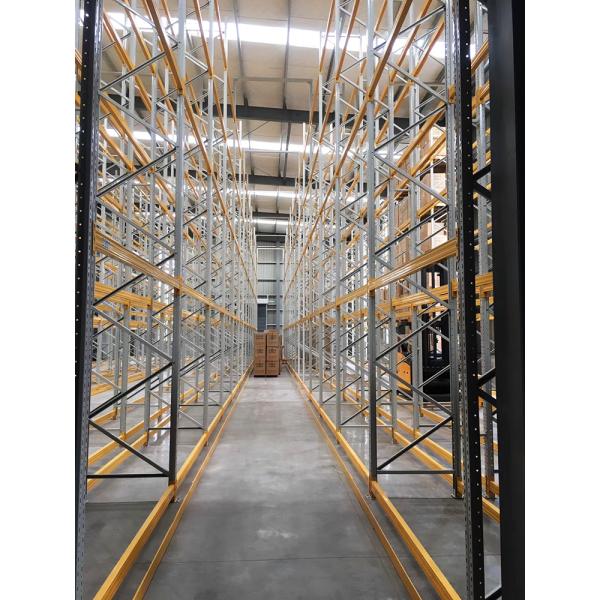

Very narrow aisle pallet rack (abbreviated VNA pallet rack) share similar structure as adjustable pallet rack. The difference is vna pallet rack has narrow aisle than adjustable pallet rack, which lead to high use of warehouse space.

Its cost is a little higher than adjustable pallet rack for guide rail and bottom beam are needed.

1500-12000mm Height VNA Pallet Rack System for High Density Storage in Warehouse

Product Information:

Rack Type VNA very narrow aisle pallet rack
Rack Cost Low, √Medium Low,Medium,Medium high,High,Higher
Pick-up Mode flexiable
Structure knock down or assembled,welded structure available
Forklift Asile around 1700mm,depends on customer's forklift parameter
Load Capacity & Dimension Load capacity ≤4000kgs/beam pair
length 950mm~3700mm
depth/width 700mm~1500mm
height ≤12000mm
level ≥2
Components core components frame(upright,also called column or post,bracing,base plate,fasteners),beam,(aisle guide)
optional components spacer,wire mesh decking,board,back stopper,top tie,side mesh,pallet support,back bracing,etc.
Core Components Specification upright section face 80mm,90mm,100mm,120mm
height 60mm,67mm,70mm,95mm,135mm
thickness 1.5mm,1.8mm,2.0mm,2.3mm,2.5mm,3.0mm
adjust step 75mm
beam section height 80mm,100mm,110mm,120mm,130mm,140mm,160mm,180mm
width 50mm
thickness 1.5mm,2.0mm
Material Q235(ss400),Q355(S355B,S355JR)
Finish Epoxy resin electrostatic spraying(powder coating)
Coating thickness no less than 60um for average thickness
Color ral5015(sky blue),ral5005(signal blue),ral2004(pure orange),ral1003(signal yellow),ral7035(light grey)
Customized colors are available when order above 2*40gp containers

1500-12000mm Height VNA Pallet Rack System for High Density Storage in Warehouse

1500-12000mm Height VNA Pallet Rack System for High Density Storage in Warehouse

FAQ

Question 1: Are you factory or trading company?

Answer 1: We are factory and also do trading products related to warehouse rack.

Question 2:Do you provide sample? Is it free or extra?

Answer 2: We provide sample parts free charged and you just need to pay the freight. When need whole sample rack for testing the possibility, please contact us for sample cost.

Question 3: I’d like to visit you. Which city should I go?

Answer 3: We are in Nanjing. When needed, we can help you book hotel, traffic ticket. And we will pick you up to the destination place. We have sales person and driver who will be with you during the visit. You don’t have to worry about the traffic matter.

Question 4: Why choose you?

Answer 4:

1. HBrack have engineers who are professional in design warehouse rack more than 10 years and could handle from simple structure to complex one.

2. Your money is safe with HBrack. We accept trading through 3rd party. The sales person have rich experience in warehouse rack, all the personal information is trackable.

3. HBrack offer different design to help client control budget.
