Specifications
Place of Origin :
Jiangsu China
MOQ :
10000 kilograms
Price :
$1.00/kilograms >=10000 kilograms
Type :
Drive-In Pallet Rack
Material :
Steel
Feature :
Corrosion Protection
Use :
Warehouse Rack
Depth :
1700-8000mm
Weight Capacity :
300-1500kgs/pallet
Width :
1150-1650mm
Height :
3000-9000mm
Color :
Blue/Orange/Yellow/Grey etc
Access Mode :
First-in, Last-out(FILO)
Finish :
Powder Coated
Description

Drive-In Pallet Rack for High Density Warehouse Storage 3000-9000mm Adjustable Height

1700-8000mm Depth Steel Pallet Rack in Orange for Warehouse Rack
Products Description
1. Drive in pallet rack is used for its high density storage.
2. The access mode is pallet first into rack, last out of rack(FILO).
3. It is for product with few species and large quantity.
4. It is widely used in logistics center, distribution center, food industry, chemical industry, furniture industry, warehouse
supermarket, especially for cold room storage.
5. Averagely, the load per pallet is up to 1500kgs.
6. The height could be as high as 9 meters or even higher.

It is bolted structure and could be dismantled and install to where you need it.
1700-8000mm Depth Steel Pallet Rack in Orange for Warehouse Rack
Product information
Rack Type
drive in pallet racking
Rack Cost
Low, Medium Low,√Medium,Medium high,High,Higher
Pick-up Mode
first in,last out(FILO)
Structure
knock down or bolted,welded frame available
Forklift Asile
around 3200mm,depends on customer's forklift parameter
Load Capacity & Dimension
Load capacity
≤1500kgs/pallet
size
customized based on clients' pallet
Components
core components

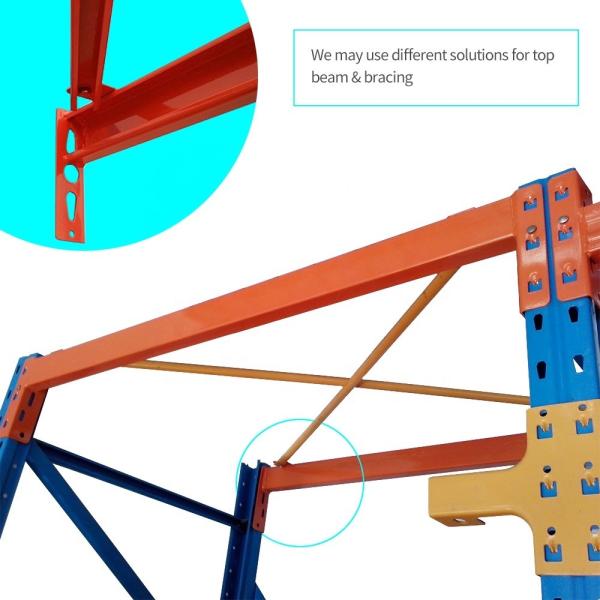

frame(upright,also called column or post,bracing,base plate,fasteners),cantilever arm, support shelf,back bracing, top bracing
other
upright protector,frame protector,guide rail,protect mesh etc.
Core Components Specification
upright section
face
80*60mm,90*60/67mm,100*67mm,120*95/135mm
step
75mm
cantilever arm
thickness
2.0mm, 2.5mm,2.75mm
Material
Q235(ss400),Q355(S355B,S355JR)
Finish
Epoxy resin electrostatic spraying(powder coating),electric galvanized
Coating thickness
no less than 60um for average thickness for powder coating
Color
ral5015(sky blue),ral5005(signal blue),ral2004(pure orange),ral1003(signal yellow),ral7035(light grey)
Customized colors are available when order above 2*40gp containers

1700-8000mm Depth Steel Pallet Rack in Orange for Warehouse Rack
Product packaging
1700-8000mm Depth Steel Pallet Rack in Orange for Warehouse Rack
1700-8000mm Depth Steel Pallet Rack in Orange for Warehouse Rack
FAQ
Question 1: Are you factory or trading company?
Answer 1: We are factory and also do trading products related to warehouse rack.

Question 2:Do you provide sample? Is it free or extra?
Answer 2: We provide sample parts free charged and you just need to pay the freight. When need whole sample rack for testing the
possibility, please contact us for sample cost.

Question 3: I’d like to visit you. Which city should I go?
Answer 3: We are in Nanjing. When needed, we can help you book hotel, traffic ticket. And we will pick you up to the destination
place. We have sales person and driver who will be with you during the visit. You don’t have to worry about the traffic matter.

Question 4: Why choose you?
Answer 4:
1. HBrack have engineers who are professional in design warehouse rack more than 10 years and could handle from simple structure
to complex one.
2. Your money is safe with HBrack. We accept trading through 3rd party. The sales person have rich experience in warehouse rack,
all the personal information is trackable.
3. HBrack offer different design to help client control budget.
