New style Mini Size DIN rail Digital panel meter multi-function energy meter

Specifications

Place of Origin :

Zhejiang, China

Brand Name :

Customized

Model Number :

RH15SD

Display Type :

Digital Only

Phase :

Single Phase

Measuring Energy Range :

5(80)A

Accuracy Class :

1.0

Output Voltage :

220V

Operating Temperature :

-20℃~+50℃

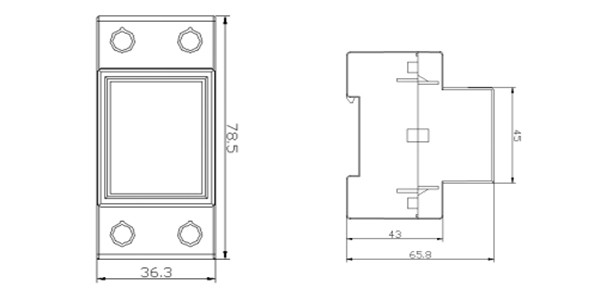

Dimensions :

78*66*43mm

Warranty :

18 Months

Features :

Mini Size

Rated Voltage :

220V 230V

Display Mode :

LCD

Power :

17000 watts

Mounting :

35 mm Din Rail

Frequency :

50HZ/60HZ

Color :

White

Installation :

DIN Rail Installation

QTY :

100pcs/carton

Packaging Details :

Standard Export Packing. The product is first placed in a sealed film bag, then placed in a corrugated box, and finally loaded into a double corrugated Carton.

Port :

SHANGHAI,NINGBO

Supply Ability :

50000 Piece/Pieces per Month

MOQ :

10 pieces

Price :

$6.00 - $7.00/pieces

Description

Technical parameter

Type

Accuracy

Rated voltage

Rated current

Starting current

Insulating performance

RH15SD

Class 1.0

220V

230V

5(30)A 10(40)A

15(60)A 20(80)A

5(80)A

0.04%

Frequency AC voltage 2kv lasted 1minute,the impact voltage 6kv

Basic error

Phase balance load

0.05Ib	Cosφ=1	±1.5%
0.1Ib	Cosφ=0.5L Cosφ=0.8C	±1.5% ±1.5%
0.1Ib-Imax	Cosφ=1	±1.0%
0.2Ib-Imax	Cosφ=0.5L Cosφ=0.8C	±1.0% ±1.0%

After-sales service

Within 18 months from the date of manufacture the user complies with all of above rules. If the meter still being sealed does not conform to any technical requirements of IEC61036, or of any certification of Power Department or Measuring Department, the manufacture guarantees to repair freely or to change. New style Mini Size DIN rail Digital panel meter multi-function energy meter
