Economical digital hz panel Frequency Meter
Economical digital hz panel Frequency Meter
Economical digital hz panel Frequency Meter
Economical digital hz panel Frequency Meter
Economical digital hz panel Frequency Meter
Economical digital hz panel Frequency Meter
Economical digital hz panel Frequency Meter
Economical digital hz panel Frequency Meter
Economical digital hz panel Frequency Meter
Economical digital hz panel Frequency Meter
Economical digital hz panel Frequency Meter
Economical digital hz panel Frequency Meter
Specifications
Place of Origin :
Zhejiang, China
Brand Name :
Customized
Model Number :
CN-F61J
Display Type :
Digital Only
Measuring Range :
0-9999
Accuracy Class :
0.5
Voltage :
AC/DC 80V~270V
Operating Temperature :
-10℃~+55℃
Dimensions :
72*72 mm
Color :
White/Black
Weight :
1.0KG
Standard :
ISO9000:2008
Power supply :
AC 220V, 50/60Hz AC/DC 85~265V
Frequency :
45~65Hz
Certification :
CE,ISO
Usage :
Industrial
Packaging Details :
Standard carbon size
Port :
Ningbo/Shanghai
Supply Ability :
1000 Piece/Pieces per Day
Price :
$11.50 - $15.33/pieces
Description

Economical Electric digital hz panel Frequency Meter

Product Description

Dimension: Customized Custom processing: Yes Measuring range: 0-9999
Model NO.: CN-F61J Accuracy class: 0.5 Installation: Embedded
Brand: Customized Usage: High precision measurement of three phase power factor Auxiliary power supply: AC/DC 80V-270V, DC48V, DC24V, AC220V AC220V AC100V
Perfomance Characteristics
High precision measurement of single phase AC frequency
Provide the digital tube display, local data query
Current and voltage gain programmable settings
Support for RS-485 communication, Modbus-RTU protocol
Support for switching input, output, analog quantity transmitting output
Auxiliary power supply: AC\DC 80V-270V, AC220V, AC380V, AC100V, DC48V, DC24V
A variety of shapes, to meet the different requirements of the cabinet body electric circuit
Technical Index
Accuracy of measurement Active power 0.5,depending on the power level 0.5
Singal input Connection mode of single phase, three phase four wire, three phase three line
Rated voltage of AC57.7V,AC100V,AC220V,AC380V
Rated current of AC 1A, AC 5A
Over load:voltage of 1.2 times( Continued ), 2times / second ( instantaneous )
Current of 1.2 times( Continued ), 10times / 5second ( instantaneous )
Power consumption voltage: <1VA/ phase, current <0.4VA/phase
Impedance:voltage>300KΩ current <20mΩ
Frequency: 45-65Hz
Auxiliary power supply Working range of AC\DC 80V-270V,AC220V,AC380V,AC100V,DC48V,DC24V
Power consumption:<4VA
Function module Communication interface 1 way RS-485 communication, Modbus-RTU protocol
Baud rate: 1200~9600bps, the default 2400bps
Switch input support 4 stem node input
The switch output support 3 relay output, capacity:AC250\5A,DC30V\5A
Transmission output support 3 analog output:0\4-20mA or 0-5\10V
Environment Environment:Working temperature:-10℃~+55℃
Storage temperature:-25℃~+70℃
Relative humidity is less than 93%, no corrosive gas
Elevation≤2500m
Safety Insulation resistance >100MΩ
AC withstand voltage AC2KV
Electromagnetic compatibility ESD level 4
Electrical fast transient burst level 4
Surge level 4
Selcction ofSpecification
Single and three phase active power meter(9999 display programmable)
Model NO. Display Frame size(mm) Hole size(mm) Remark
CN-F11 Digital Single-row LED 80*160 152*76
CN-F21 Digital Single-row LED 120*120 111*111
CN-F31 Digital Single-row LED 96*96 92*92
CN-F41 Digital Single-row LED 120*60 114*56
CN-F51 Digital Single-row LED 96*48 92*45

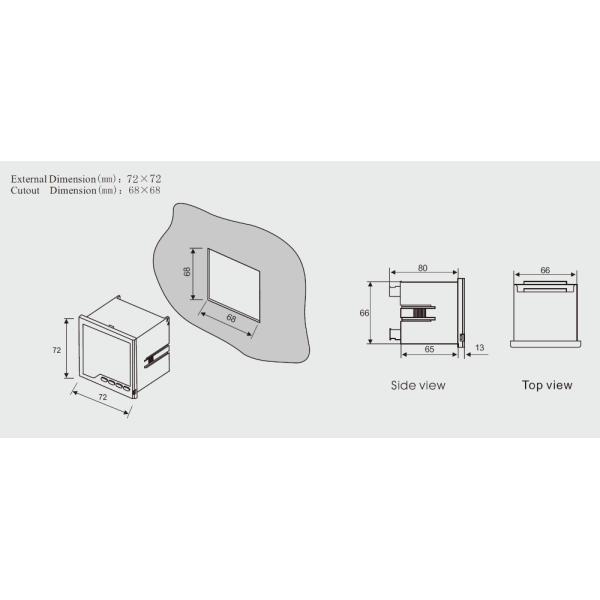

CN-F61 Digital Single-row LED 72*72 68*68
CN-F71 Digital Single-row LED 80*80 76*76
CN-F81 Digital Single-row LED 48*48 45*45
Product Overviews

Economical digital hz panel Frequency Meter Economical digital hz panel Frequency Meter

Economical digital hz panel Frequency Meter Economical digital hz panel Frequency Meter Economical digital hz panel Frequency Meter Economical digital hz panel Frequency Meter
