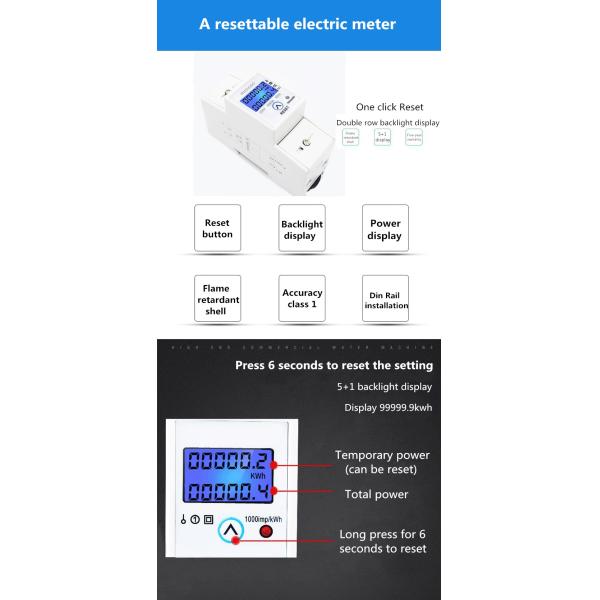

2020 New Style Single Phase Digital Panel Power Meter A Resettable Meter
2020 New Style Single Phase Digital Panel Power Meter A Resettable Meter
2020 New Style Single Phase Digital Panel Power Meter A Resettable Meter
2020 New Style Single Phase Digital Panel Power Meter A Resettable Meter
2020 New Style Single Phase Digital Panel Power Meter A Resettable Meter
2020 New Style Single Phase Digital Panel Power Meter A Resettable Meter
2020 New Style Single Phase Digital Panel Power Meter A Resettable Meter
2020 New Style Single Phase Digital Panel Power Meter A Resettable Meter
Specifications
Place of Origin :
Zhejiang, China
Brand Name :
SUCHEN
Model Number :
CN36SC
Display Type :
Digital Only
Phase :
Single Phase
Measuring Energy Range :
5(80)A
Accuracy Class :
1.0
Operating Temperature :
-10°C - +50°C
Dimensions :
78*66*43mm
Color :
White
Frequency :
50HZ/60HZ
Display :
LCD Display
Poles :
2P
QTY :
100pcs/carton
Rated voltage :
220V 230V
Pulse Constant :
1000imp
Installation :
DIN Rail Installation
Wiring method :
Type S and type U
Warranty :
18 Months
Packaging Details :
Standard Export Packing. The product is first placed in a sealed film bag, then placed in a corrugated box, and finally loaded into a double corrugated Carton.
MOQ :
20 pieces
Price :
$9.09/pieces 20-49 pieces
Description
Technical parameter
Type Accuracy Rated voltage Rated current Starting current Insulating performance
CN36SC Class 1.0

220V

230V

5(20)A 10(40)A

15(60)A 5(80)A

 0.04%

Frequency AC voltage 2kv lasted 1 minute, the impact voltage 6kv
Basic error

Phase balance load

0.05Ib Cosφ=1 ±1.5%
0.1Ib

Cosφ=0.5L

Cosφ=0.8C

±1.5%

±1.5%
0.1Ib-Imax Cosφ=1 ±1.0%
0.2Ib-Imax

Cosφ=0.5L

Cosφ=0.8C

±1.0%

±1.0%

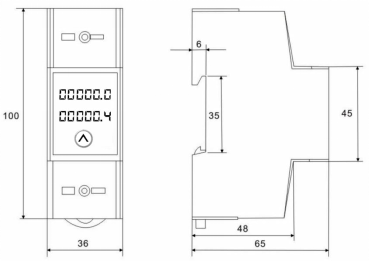

Outline and wiring

2020 New Style Single Phase Digital Panel Power Meter A Resettable Meter 2020 New Style Single Phase Digital Panel Power Meter A Resettable Meter

Wiring diagram

Type S

2020 New Style Single Phase Digital Panel Power Meter A Resettable Meter

After-sales service

Within 18 months from the date of manufacture the user complies with all of above rules. If the meter still being sealed does not conform to any technical requirements of IEC61036, or of any certification of Power Department or Measuring Department, the manufacture guarantees to repair freely or to change.

2020 New Style Single Phase Digital Panel Power Meter A Resettable Meter 2020 New Style Single Phase Digital Panel Power Meter A Resettable Meter 2020 New Style Single Phase Digital Panel Power Meter A Resettable Meter 2020 New Style Single Phase Digital Panel Power Meter A Resettable Meter 2020 New Style Single Phase Digital Panel Power Meter A Resettable Meter
