Original Manufacturer Three Phase Intelligent Digital Multifunction Meter Digital Electrical Panel Meter
Original Manufacturer Three Phase Intelligent Digital Multifunction Meter Digital Electrical Panel Meter
Specifications
Place of Origin :
Zhejiang, China
Brand Name :
SUCHEN
Model Number :
CN-3UI(F)3Y
Display Type :
Digital Only
Phase :
Three Phase
Measuring Energy Range :
0-9999
Accuracy Class :
0.5, 0.2
Output Voltage :
AC 220V
Operating Temperature :
-10℃~+55℃
Dimensions :
96*96
Color :
Black
OEM :
Yes
Power consumption :
<1VA
Communication :
RS485 Port MODBUS-RTU
Display type :
LED/LCD Display
Connection :
3-phase 4-wire/3-phase 3-wire
Power source :
AC85~265V,DC100~300V <5VA
Baud Rate :
1200-38400(Default 9600)
Frequency :
45~65Hz
Warranty :
1 Year
Packaging Details :
1.Strong Strandard Export Package,Meet The Long-Distance Transportation
Port :
Ningbo or Shanghai
Supply Ability :
5000 Piece/Pieces per Month
MOQ :
10 pieces
Price :
$32.00 - $35.00/pieces
Description
Foreword

Thanks for using our company products. We will provide reliable quality and dedicated service to allow you to rest assured to use our company products. Before installation, circuit connection, running and maintenance, please make sure to read carefully the user manual, to ensure the correct using, during using please also make sure know very well of relative safety and caution items.

Original Manufacturer Three Phase Intelligent Digital Multifunction Meter Digital Electrical Panel Meter

Original Manufacturer Three Phase Intelligent Digital Multifunction Meter Digital Electrical Panel Meter

Model Size Connection Display type
CN-3UI(F)2Y 120*120mm 3-phase 4-wire/3-phase 3-wire LED/LCD Display
CN-3UI(F)3Y 96*96mm 3-phase 4-wire/3-phase 3-wire

LED/LCD Display
CN-3UI(F)6Y 72*72mm 3-phase 4-wire/3-phase 3-wire LED/LCD Display
CN-3UI(F)7Y 80*80mm 3-phase 4-wire/3-phase 3-wire LED/LCD Display
Dimension

Original Manufacturer Three Phase Intelligent Digital Multifunction Meter Digital Electrical Panel Meter

Installation sketch

Original Manufacturer Three Phase Intelligent Digital Multifunction Meter Digital Electrical Panel Meter

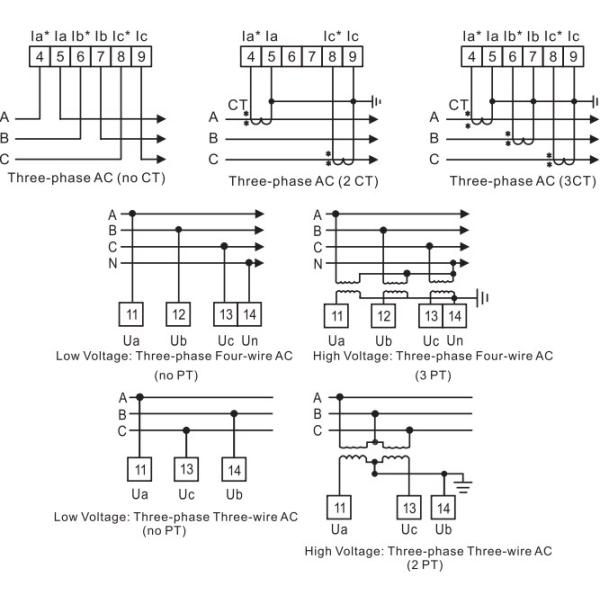

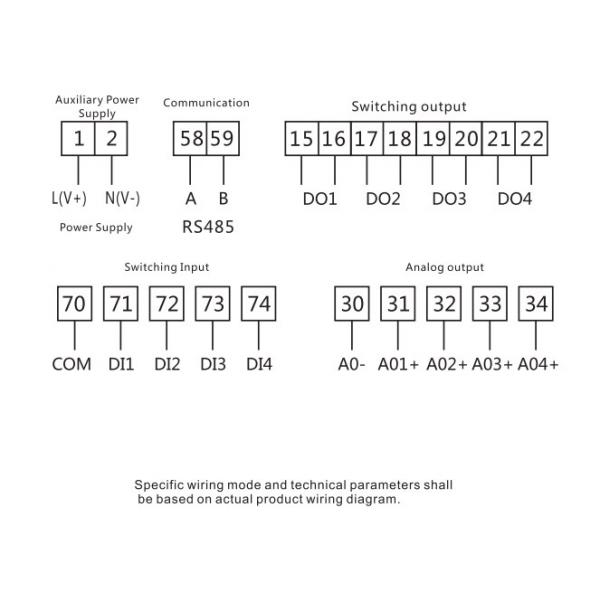

Wiring Diagram

Original Manufacturer Three Phase Intelligent Digital Multifunction Meter Digital Electrical Panel Meter Original Manufacturer Three Phase Intelligent Digital Multifunction Meter Digital Electrical Panel Meter Original Manufacturer Three Phase Intelligent Digital Multifunction Meter Digital Electrical Panel Meter Original Manufacturer Three Phase Intelligent Digital Multifunction Meter Digital Electrical Panel Meter Original Manufacturer Three Phase Intelligent Digital Multifunction Meter Digital Electrical Panel Meter Original Manufacturer Three Phase Intelligent Digital Multifunction Meter Digital Electrical Panel Meter
