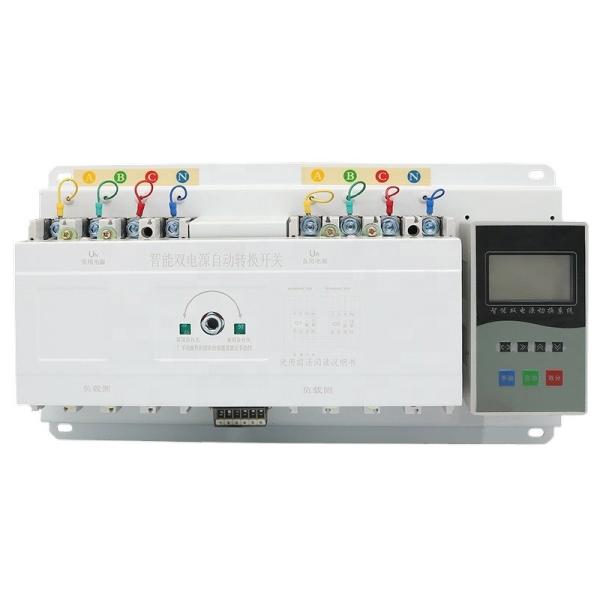

The Latest Design ATSQ2Y series Intelligent Double/Dual Power Automatic Transfer Switch 800/4P
The Latest Design ATSQ2Y series Intelligent Double/Dual Power Automatic Transfer Switch 800/4P
The Latest Design ATSQ2Y series Intelligent Double/Dual Power Automatic Transfer Switch 800/4P
The Latest Design ATSQ2Y series Intelligent Double/Dual Power Automatic Transfer Switch 800/4P
The Latest Design ATSQ2Y series Intelligent Double/Dual Power Automatic Transfer Switch 800/4P
The Latest Design ATSQ2Y series Intelligent Double/Dual Power Automatic Transfer Switch 800/4P
The Latest Design ATSQ2Y series Intelligent Double/Dual Power Automatic Transfer Switch 800/4P
The Latest Design ATSQ2Y series Intelligent Double/Dual Power Automatic Transfer Switch 800/4P
Specifications
Certification :
CE
Whether the smart :
Yes
Place of Origin :
Zhejiang, China
Brand Name :
SUCHEN
Model Number :
ATSQ2Y
Max. Current :
800A
Max. Voltage :
400V
Rated current :
10~1250A
Poles :
3P/4P
Warranty :
1 Year
Material :
Class CB
Handle :
YES
OEM :
Yes
Type :
Mould Case Circuit Breaker
Package :
Standard Export Packing
Express :
DHL,TNT, EMS, FEDEX or as your request
Product name :
Intelligent double power automatic transfer switch
Packaging Details :
1.Strong Strandard Export Package,Meet The Long-Distance Transportation
2.According To Your Requirements.
RH-ATSQ2Y Series double power automatic transfer switch
Port :
Ningbo, Shanghai
Supply Ability :
5000 Piece/Pieces per Month
MOQ :
10 pieces
Price :
$450.00 - $490.00/pieces
Description
Foreword

Thanks for using our company products. We will provide reliable quality and dedicated service to allow you to rest assured to use our company products. Before installation, circuit connection, running and maintenance, please make sure to read carefully the user manual, to ensure the correct using, during using please also make sure know very well of relative safety and caution items.

Usage

RH-ATSQ2Y dual power automatic transfer switch (hereinafter referred to as A.T.S) for 50Hz / 60Hz, the rated operating voltage is 380V (3P, 4P), and the rated current is 10A~1250A (double loop power supply system). It can convert the normal power and reversed power automatically to ensure the reliability of the power, mainly for high -rise buildings, shopping malls, fire pumps, smoke fans, elevators, life water pumps, accident lighting and other places. This product complies with GB/T14048.11 standard.

Model

The Latest Design ATSQ2Y series Intelligent Double/Dual Power Automatic Transfer Switch 800/4P

The Latest Design ATSQ2Y series Intelligent Double/Dual Power Automatic Transfer Switch 800/4P The Latest Design ATSQ2Y series Intelligent Double/Dual Power Automatic Transfer Switch 800/4P

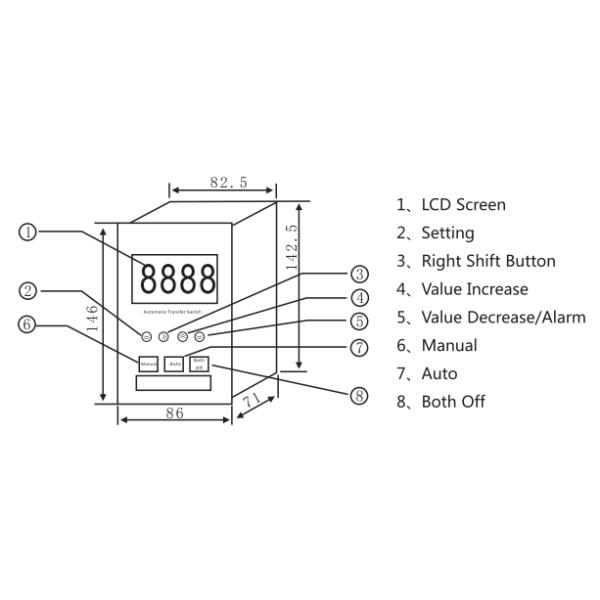

Outline

The Latest Design ATSQ2Y series Intelligent Double/Dual Power Automatic Transfer Switch 800/4P

Installation Size
Model / Size W W1 L L1 H
ATSQ2Y-63/3P 380 345 240 220 140
ATSQ2Y-63/4P 380 345 240 220 140
ATSQ2Y-100/3P 420 385 240 220 140
ATSQ2Y-100/4P 420 385 240 220 140
ATSQ2Y-225/3P 470 435 240 220 150
ATSQ2Y-225/4P 470 435 240 220 160
ATSQ2Y-400/3P 615 555 330 300 200
ATSQ2Y-400/4P 615 555 330 300 200
ATSQ2Y-630/3P 680 620 330 300 200
ATSQ2Y-630/4P 740 680 330 300 200
ATSQ2Y-800/3P 725 670 330 300 200
ATSQ2Y-800/4P 790 735 330 300 200
The Latest Design ATSQ2Y series Intelligent Double/Dual Power Automatic Transfer Switch 800/4P The Latest Design ATSQ2Y series Intelligent Double/Dual Power Automatic Transfer Switch 800/4P The Latest Design ATSQ2Y series Intelligent Double/Dual Power Automatic Transfer Switch 800/4P The Latest Design ATSQ2Y series Intelligent Double/Dual Power Automatic Transfer Switch 800/4P
