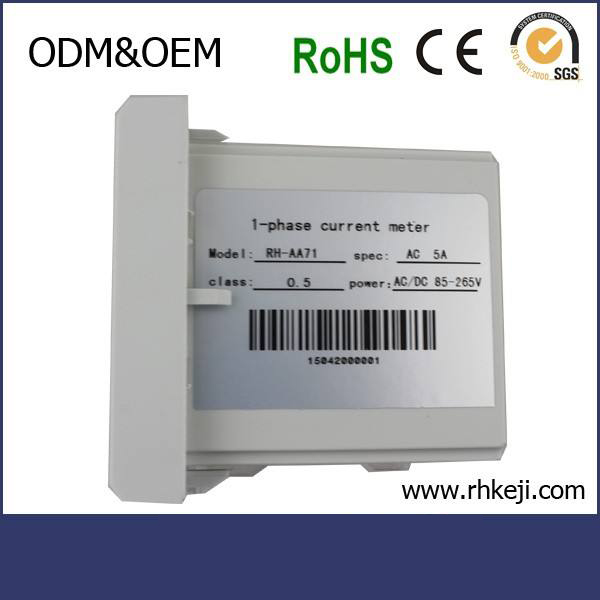

digital ac ammeter current meter program for led panel CN-AA71
digital ac ammeter current meter program for led panel CN-AA71
digital ac ammeter current meter program for led panel CN-AA71
digital ac ammeter current meter program for led panel CN-AA71
digital ac ammeter current meter program for led panel CN-AA71
digital ac ammeter current meter program for led panel CN-AA71
digital ac ammeter current meter program for led panel CN-AA71
digital ac ammeter current meter program for led panel CN-AA71
digital ac ammeter current meter program for led panel CN-AA71
digital ac ammeter current meter program for led panel CN-AA71
Specifications
Place of Origin :
Zhejiang, China
Brand Name :
Customized
Model Number :
CN-AA71
Display Type :
Analog and Digital
Measuring Range :
0-9999
Accuracy Class :
0.5
Supply Voltage :
AC/DC 80-270V
Operating Temperature :
-10℃~+55℃
Dimensions :
80*80mm
Name :
Industrial ammeter
Color :
White/Black
Display :
LED
Warranty :
3 Years
Package :
Polybag+paperbox+export carton
Delivery :
Within 7 days after receipt of 30% payment by T/T
Service :
OEM and ODM available
Packaging Details :
polybag+paperbox+export carton
Price :
$7.30/pieces
Description
Product Description

Dimension:customized Custom processing:Yes Measuring range:0-9999
Model NO.: CN-AA Accuracy class: 0.5 Installation:embedded
Brand: Customized Usage: High precision measurement of single phase AC ampere Auxiliary power supply:DC 80V-270V, DC48V, DC24V, AC220V, AC380V, AC100V(V)
Performance Characteristics
High precision measurement measurement of single phase AC current
Provide the digital tube display, local data query
Programmable voltage ratio
Support for RS-485 communication, Modubus-RTU protocol
Support for switching input, output, analog quantity transmitting output
Auxiliary power supply:AC/DC 80V~270V, AC220V, AC380V, AC100V, DC48V, DC 24V
A variety of shapes, to meet the different requirements of the cabinet body electric circuit
Technical Index
Accuracy of measurement Electric current 0.5

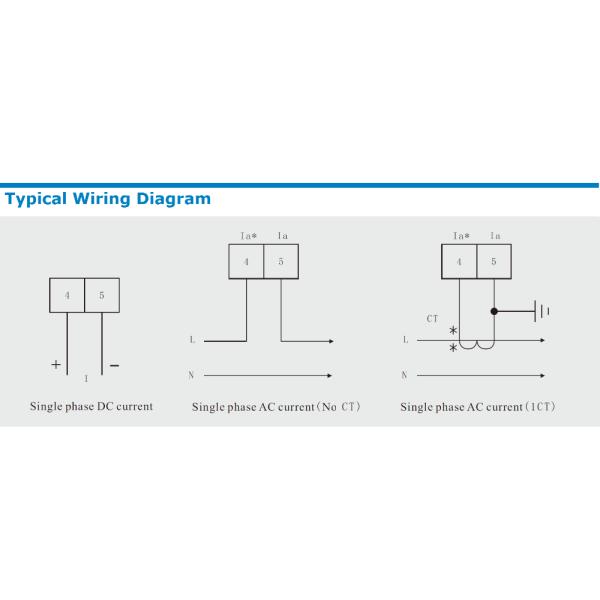

Singal input Connection mode of single phase
Rated current of AC1A,AC5A,DC20mA,DC1A,DC5A,DC75mV
Over load 1.2 times ( Continued ), 2 times / second ( instantaneous )
Power consumption <0.4VA/ phase
Impedance <20mΩ
The frequency of 45~65Hz or DC
Auxiliary power supply AC/DC 80V~270V, AC220V, AC380V, AC100V, DC48V, DC 24V
Power consumption <4VA

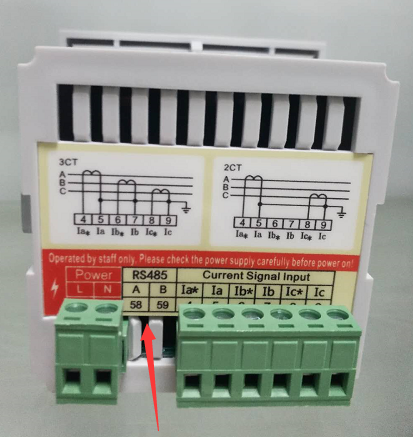

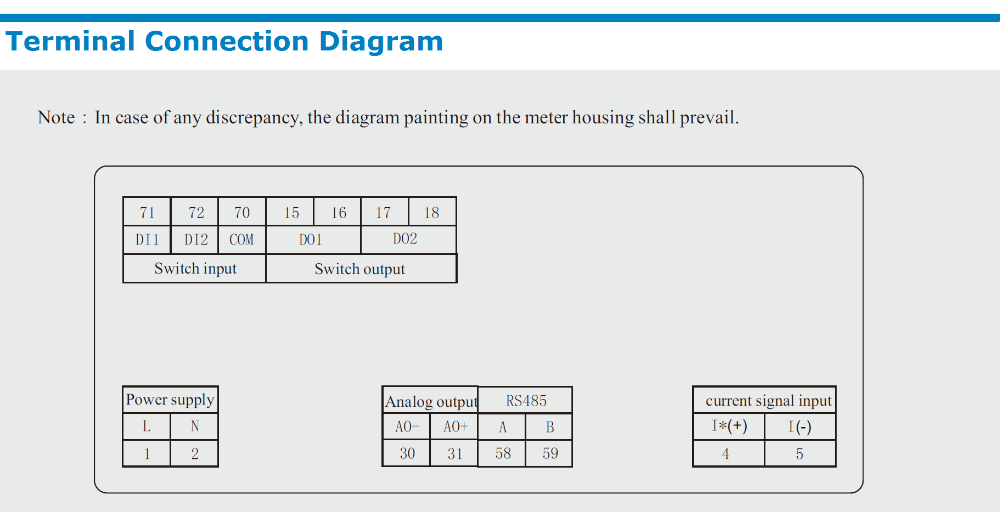

Function module Communication interface 1 way RS-485 communication, Modbus-RTU protocol
Baud rate: 1200~9600bps, the default 2400bps
Switch input support 2 stem node input
The switch output support 2 relay output, capacity: AC 250V/5A, DC 30V/5A
Transmission output support 1 analog output: 0/4~20mA or 0~5/10V
Environment Working temperature:-10°C ~+55°C
Storage temperature:-25°C ~+70°C
Relative humidity is less than 93%, no corrosive gas
Elevation≤2500m
Safety Insulation resistance >100MΩ
AC withstand voltage AC 2KV
Electromagnetic compatibility ESD level 4
Electrical fast transient burst level 4
Selcction of Specification
Digital Intelligent Single phase AC Ampere Meter(9999 display programmable)
Model NO. Display Frame size(mm) Hole size(mm) Remark
CN-AA11 Digital Single-row LED 160*80 152*76
CN-AA21 Digital Single-row LED 120*120 111*111
CN-AA31 Digital Single-row LED 96*96 92*92
CN-AA41 Digital Single-row LED 120*60 114*56
CN-AA51 Digital Single-row LED 96*48 92*45
CN-AA61 Digital Single-row LED 72*72 68*68
CN-AA71 Digital Single-row LED 80*80 76*76
CN-AA81 Digital Single-row LED 48*48 45*45
Remarks:
AC/DC power supply(switching power supply)$20
Order notes: Please write clearly the requested types, input signal and the functional modules, etc when purchasing. Others: Factory default settings (Use default setting if no instruction).
