Three phase 5 rows display digital amp&volt &hertz meter AC combination multimeters
Three phase 5 rows display digital amp&volt &hertz meter AC combination multimeters
Three phase 5 rows display digital amp&volt &hertz meter AC combination multimeters
Three phase 5 rows display digital amp&volt &hertz meter AC combination multimeters
Three phase 5 rows display digital amp&volt &hertz meter AC combination multimeters
Three phase 5 rows display digital amp&volt &hertz meter AC combination multimeters
Three phase 5 rows display digital amp&volt &hertz meter AC combination multimeters
Three phase 5 rows display digital amp&volt &hertz meter AC combination multimeters
Three phase 5 rows display digital amp&volt &hertz meter AC combination multimeters
Three phase 5 rows display digital amp&volt &hertz meter AC combination multimeters
Three phase 5 rows display digital amp&volt &hertz meter AC combination multimeters
Three phase 5 rows display digital amp&volt &hertz meter AC combination multimeters
Specifications
Place of Origin :
Zhejiang, China
Brand Name :
SUCHEN
Model Number :
CN-3UIF35
Measuring Current Range :
0-9999A
Measuring Voltage Range :
0-500V
Measuring Resistance Range :
0-200M
Measuring Capacitance Range :
9999uF
Measuring Inductance Range :
0-9999
Operating Temperature :
-10℃~+50℃
Dimensions :
96*96mm
Display :
5 rows LED display
Rated current :
AC 1A,5A(can add CT)
Power supply :
AC/DC 80V~270V, AC220V, AC380V, AC100V, DC48V, DC 24V
Extended function :
RS-485 , Modbus-RTU ,switch input,output,analog output,signal input
Name :
Amp&Volt&Hz meter
Color :
White/Black
Accuracy of measurement :
class 0.5/±0.02Hz
Certificate :
CE /ISO9001
Impedance :
Voltage: >300KΩ , Current: <20mΩ
Material :
ABS Plastic Shell Housing
Packaging Details :
Package of the combination meter : Polybag & Paper box & Export carton
Port :
Ningbo/Shanghai
Supply Ability :
2000 Piece/Pieces per Day
Price :
$21.85 - $26.45/pieces
Description
Model and meaning

Three phase 5 rows display digital amp&volt &hertz meter AC combination multimeters Three phase 5 rows display digital amp&volt &hertz meter AC combination multimeters

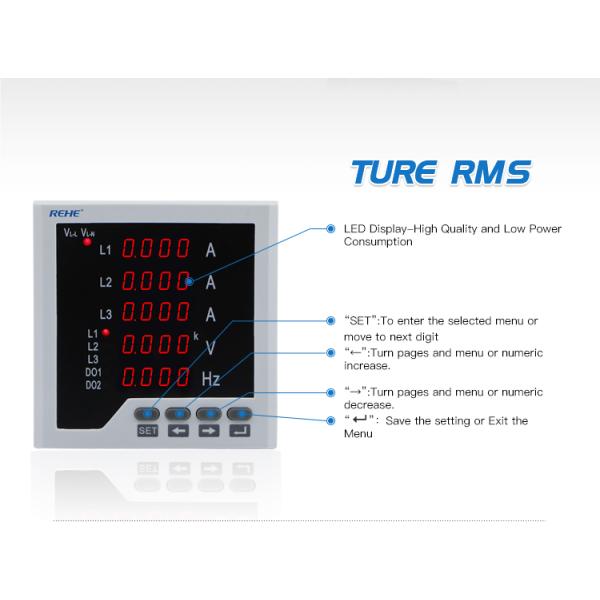

Product display

Three phase 5 rows display digital amp&volt &hertz meter AC combination multimeters Three phase 5 rows display digital amp&volt &hertz meter AC combination multimeters Three phase 5 rows display digital amp&volt &hertz meter AC combination multimeters Three phase 5 rows display digital amp&volt &hertz meter AC combination multimeters

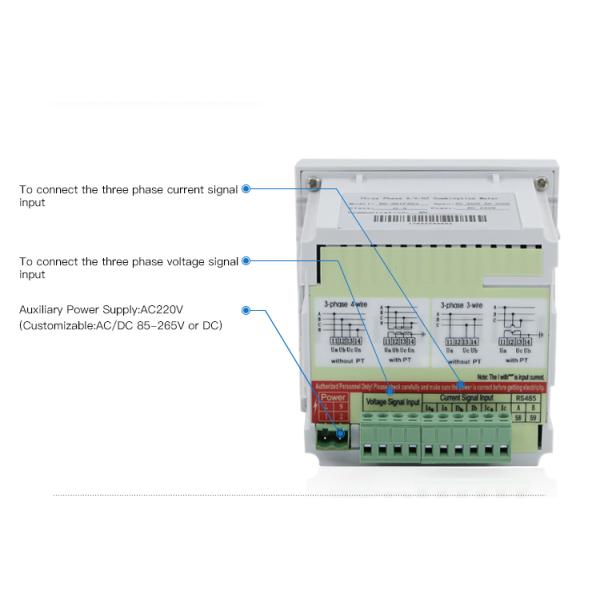

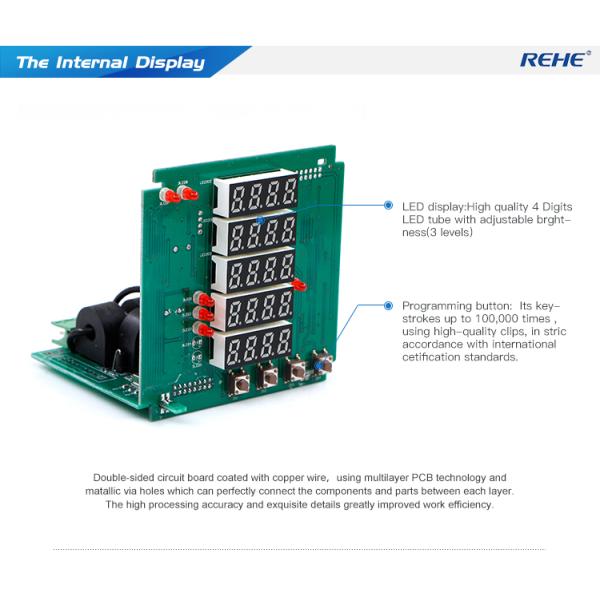

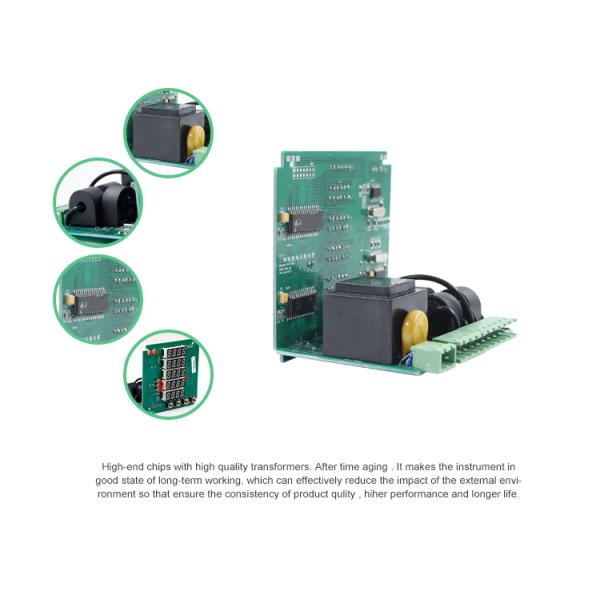

The internal display

Three phase 5 rows display digital amp&volt &hertz meter AC combination multimeters Three phase 5 rows display digital amp&volt &hertz meter AC combination multimeters

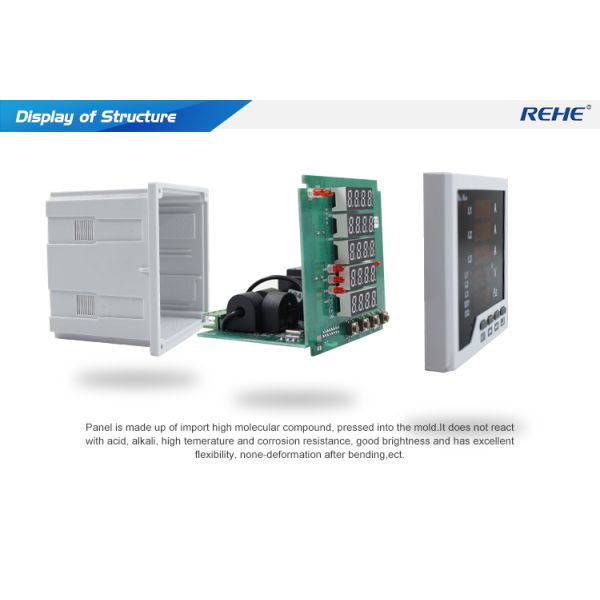

Display of structure

Three phase 5 rows display digital amp&volt &hertz meter AC combination multimeters

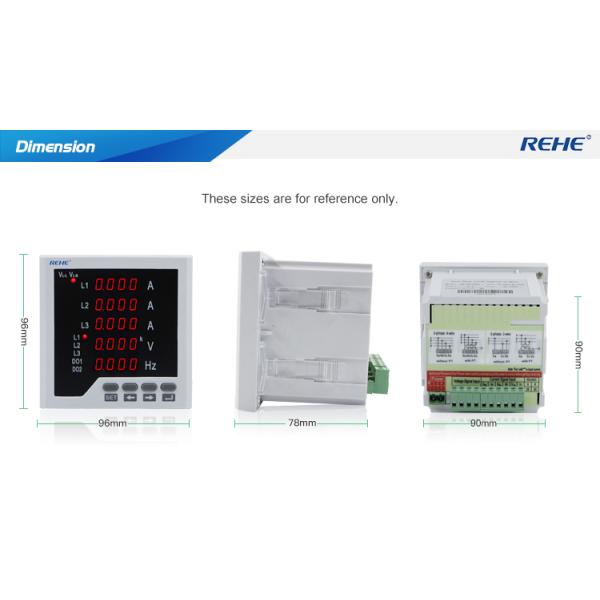

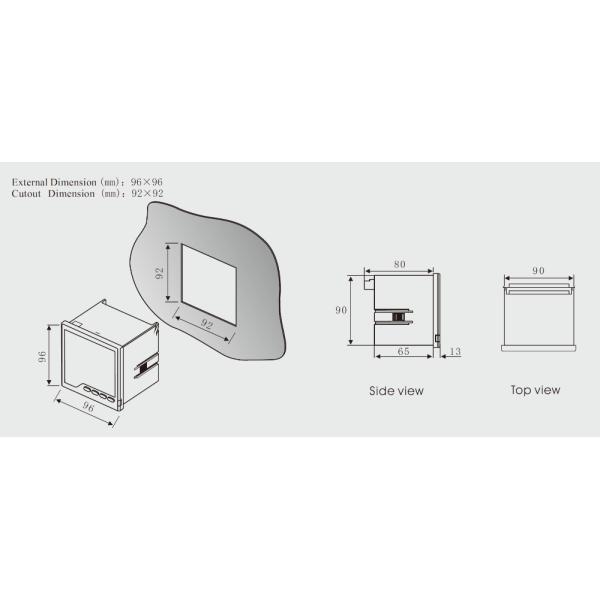

Dimension

Three phase 5 rows display digital amp&volt &hertz meter AC combination multimeters

Specification

Model CN-3UIF35
Measure Current, voltage, frequency
Measure AC 0~500V
Measure AC 0~5A (can add CT)
Measure frequency 45~65Hz
Frame size 96*96mm
Hole size 92*92mm
Connection mode Three phase four wire, three phase three wire
Power supply AC/DC 80~270V, AC380V, AC100V
Three phase 5 rows display digital amp&volt &hertz meter AC combination multimeters Three phase 5 rows display digital amp&volt &hertz meter AC combination multimeters Three phase 5 rows display digital amp&volt &hertz meter AC combination multimeters Three phase 5 rows display digital amp&volt &hertz meter AC combination multimeters Three phase 5 rows display digital amp&volt &hertz meter AC combination multimeters
