Specifications
Place of Origin :
Zhejiang, China
Brand Name :
Customized
Model Number :
CN-DV
Display Type :
Analog and Digital
Measuring Range :
0-9999
Accuracy Class :
0.5
Operating Temperature :
-10℃~+55°C
Dimensions :
Customized
Color :
White/Black
Display :
LED
Name :
Single phase voltmeter
Material :
ABS
Warranty :
3 Years
Power supply :
85~265VAC
Certificate :
CE ISO9000
Delivery Time :
3-5 Working Days
Type :
Digital Panel Meter
Packaging Details :
Customization
Port :
NINGBO / SHANGHAI
Supply Ability :
10000 Piece/Pieces per Month
Price :
$8.05 - $24.15/pieces
Description
Product Description

Performance Characteristics

1.High precision measurement measurement of single phase AC voltage or DC voltage

2.Provide the digital tube display, local data query

3.Programmable voltage ratio

4.Support for RS-485 communication, Modbus-RTU protocol

5.Auxiliary power supply:AC/DC 80V~270V, AC220V, AC380V, AC100V, DC48V, DC 24V

6.A variety of shapes, to meet the different requirements of the cabinet body electric circuit

Technical Index

Accuracy of measurement

♦Voltage level 0.5

Signal input

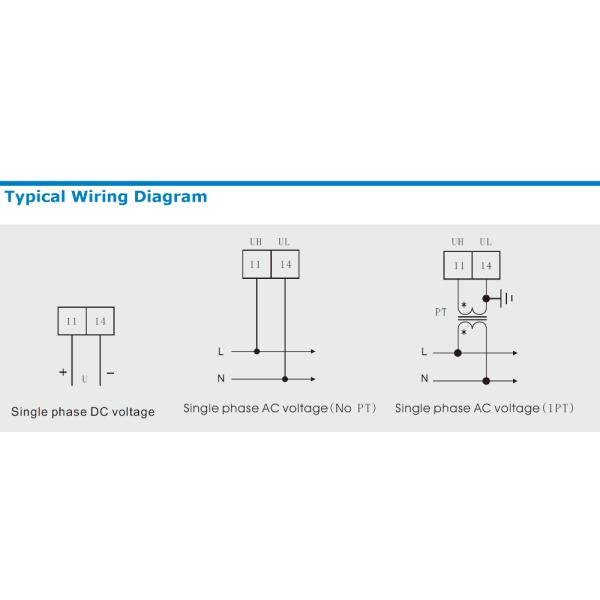

♦Connection mode of single phase

♦Rated voltage of AC 57.7V, AC 100V, AC 220V, AC 380V, DC 2V, DC 20V, DC 200V, DC ♦600V,DC600V

♦Over load 1.2 times ( Continued ), 2 times / second ( instantaneous )

♦Power <1VA/ phase

♦Impedance >300KΩ

♦The frequency of 45~65Hz or DC

Auxiliary power supply

♦Working range of AC/DC 80V~270V, AC220V, AC380V, AC100V, DC48V, DC 24V

♦Power consumption <4VA

Function module

♦Communication interface 1 way RS-485 communication, Modbus-RTU protocol

♦Baud rate: 1200~9600bps, the default 2400bps

♦Switch input support 2 stem node input

♦The switch output support 2 relay output, capacity: AC 250V/5A, DC 30V/5A

♦Transmission output support 1 analog output: 0/4~20mA or 0~5/10V

Section of Specification

Function

Model NO.

measurement

Extended function(optional)

Display

Hole size (mm)

AC

voltage

DC voltage

switching input

switching output

Analog output

Communication interface

LED

LCD

CN-AV11

√

-

2

2

1

1

√

-

152*76

CN-DV11

-

√

2

2

1

1

√

-

CN-AV21

√

-

2

2

1

1

√

-

111*111

CN-AV21

-

√

2

2

1

1

√

-

CN-AV31

√

-

2

2

1

1

√

-

91*91

CN-DV31

-

√

2

2

1

1

√

-

CN-AV41

√

-

2

2

1

1

√

-

114*56

CN-DV41

-

√

2

2

1

1

√

-

CN-AV51

√

-

2

2

1

1

√

-

92*45

CN-DV51

-

√

2

2

1

1

√

-

CN-AV61

√

-

2

2

1

1

√

-

67*67

CN-DV61

-

√

2

2

1

1

√

-

CN-AV71

√

-

2

2

1

1

√

-

76*76

CN-DV71

-

√

2

2

1

1

√

-

CN-AV81

√

-

2

2

1

1

√

-

45*45

CN-DV81

-

√

2

2

1

1

√

-

Function Available

I: Switching input+$2
O: Switching Outputs +$2
T: RS485 Communication+$5
D: Analog Output+$7

Auxiliary power: AD/DC85-265V+$2

Unit (mm)

Code

1

2

3

4

5

6

7

8

Panel Size

160*80

120*120

96*96

120*60

96*48

72*72

80*80

48*48

Hole Size

152*76

111*111

91*91

114*56

92*45

67*67

76*76

45*45
