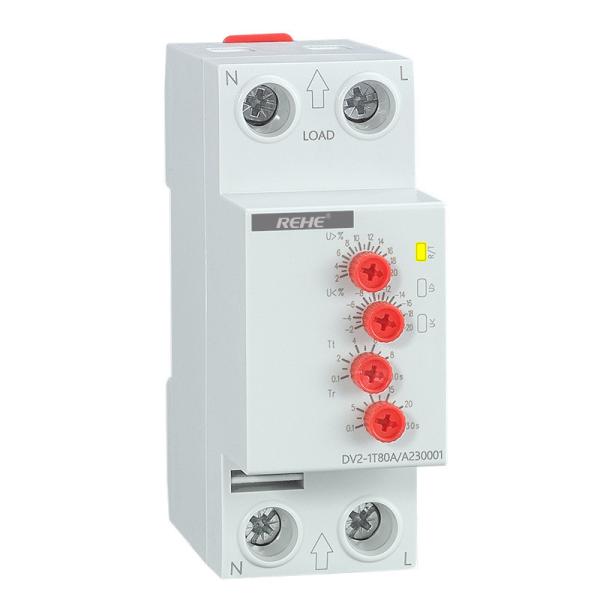

DV2-1T80A Single Phase Intelligent Auto Reset Voltage Device Protector
DV2-1T80A Single Phase Intelligent Auto Reset Voltage Device Protector
Specifications
Place of Origin :
Zhejiang, China
Brand Name :
SUCHEN
Model Number :
DV2-1T80A
Theory :
Voltage Relay
Usage :
PROTECTIVE
Size :
Miniature
Protect Feature :
Sealed
Contact Load :
Low Power
Supply terminals :
L1-N
Voltage range :
145-300V AC 50-60Hz
Burden :
AC max. 1.2VA/0.5W
Upper level (U max) :
AC 225V-275V
Bottom level (U min) :
AC 165V-215V
Max. permanent :
AC 300V
Feature :
Three phase and three phase with neutral
Electrical strength :
4 kV (supply-output)
Switching voltage :
250V AC1
Operational current :
80A
Packaging Details :
1.Strong Strandard Export Package,Meet The Long-Distance Transportation
Port :
Ningbo or Shanghai
Supply Ability :
5000 Piece/Pieces per Week
MOQ :
10 pieces
Price :
$13.10 - $14.00/pieces
Description

DV2-1T80A Single Phase Intelligent Auto Reset Voltage Device Protector

Technical parameters

DV2-1T80A Single Phase Intelligent Auto Reset Voltage Device Protector DV2-1T80A Single Phase Intelligent Auto Reset Voltage Device Protector DV2-1T80A Single Phase Intelligent Auto Reset Voltage Device Protector DV2-1T80A Single Phase Intelligent Auto Reset Voltage Device Protector

It serves to control supply voltage for appliances sensitive to supply tolerance, protection of the device against under/over voltage.

♦ DV2-1G is fixed settings, DV2-1T is Adjustable settings over/under voltage relay. For difference settings of over/under voltage.

♦ 3-state indication-LEDs indicating normal state and 2 fault states.

♦ Supply from monitored voltage (monitors level of its own supply).

♦ 2-MODULE, DIN rail mounting.

Description

DV2-1T80A Single Phase Intelligent Auto Reset Voltage Device Protector DV2-1T80A Single Phase Intelligent Auto Reset Voltage Device Protector

Connection

DV2-1T80A Single Phase Intelligent Auto Reset Voltage Device Protector

Symbol

DV2-1T80A Single Phase Intelligent Auto Reset Voltage Device Protector

Model Voltage range Switching voltage Operational current Unit Price
DV2-1T80A

145-300V

AC 50-60Hz

 250V AC1 80A 1PC $13.04

DV2-1T80A Single Phase Intelligent Auto Reset Voltage Device Protector DV2-1T80A Single Phase Intelligent Auto Reset Voltage Device Protector DV2-1T80A Single Phase Intelligent Auto Reset Voltage Device Protector DV2-1T80A Single Phase Intelligent Auto Reset Voltage Device Protector
