DV2-1S40A Digital LCD Under Voltage Over Voltage Auto Reset Protecter Device
DV2-1S40A Digital LCD Under Voltage Over Voltage Auto Reset Protecter Device
Specifications
Place of Origin :
Zhejiang, China
Brand Name :
SUCHEN
Model Number :
DV2-1S40A
Theory :
Voltage Relay
Usage :
PROTECTIVE
Size :
Miniature
Protect Feature :
Sealed
Contact Load :
Low Power
Feature :
LCD, three phase and three phase with neutral
Supply terminals :
L1-N
Voltage range :
145-300V AC 50-60Hz
Burden :
AC max. 1.2VA/0.5W
Upper level (U max) :
AC 221V-275V
Bottom level (U min) :
AC 150V-229V
Max. permanent :
AC 300V
Electrical strength :
4 kV (supply-output)
Switching voltage :
250V AC1
Operational current :
40A
Packaging Details :
1.Strong Strandard Export Package,Meet The Long-Distance Transportation
Port :
Ningbo or Shanghai
Supply Ability :
5000 Piece/Pieces per Week
MOQ :
10 pieces
Price :
$12.00 - $15.00/pieces
Description

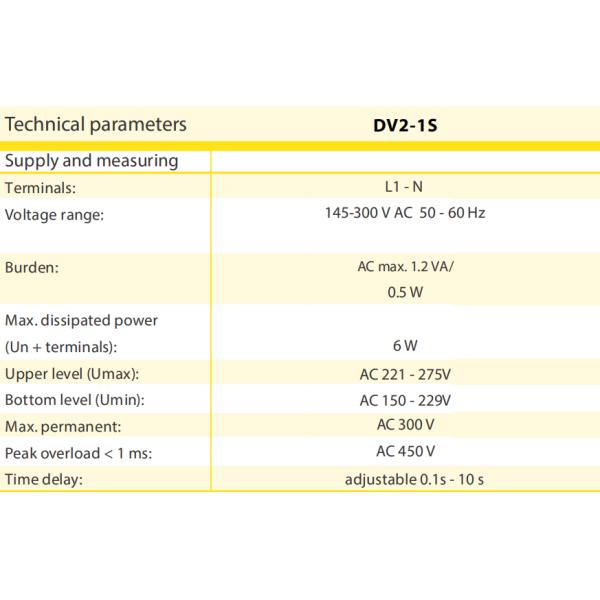

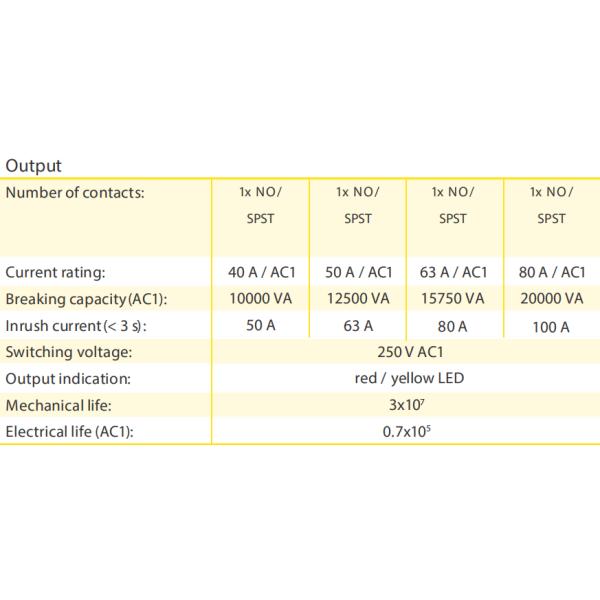

Technical parameters

DV2-1S40A Digital LCD Under Voltage Over Voltage Auto Reset Protecter Device DV2-1S40A Digital LCD Under Voltage Over Voltage Auto Reset Protecter Device DV2-1S40A Digital LCD Under Voltage Over Voltage Auto Reset Protecter Device DV2-1S40A Digital LCD Under Voltage Over Voltage Auto Reset Protecter Device

It serves to control supply voltage for appliances sensitive to supply tolerence, protection of the device against under/over voltage.

♦ DV2-1S is LCD display over/under voltage relay.

♦ With test reset function.

♦ Supply from monitored voltage (monitors level of its own supply).

♦ 2-MODULE, DIN rail mounting.

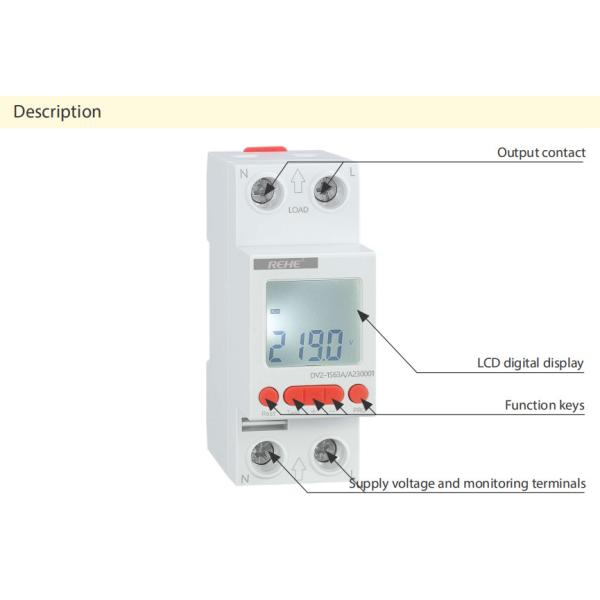

Description

DV2-1S40A Digital LCD Under Voltage Over Voltage Auto Reset Protecter Device DV2-1S40A Digital LCD Under Voltage Over Voltage Auto Reset Protecter Device

Conncetion

DV2-1S40A Digital LCD Under Voltage Over Voltage Auto Reset Protecter Device

Symbol

DV2-1S40A Digital LCD Under Voltage Over Voltage Auto Reset Protecter Device

Model Voltage range Switching voltage Unit Price
DV2-1S40A

145-300V

AC 50-60Hz

 250V AC1 1PC $11.97
DV2-1S40A Digital LCD Under Voltage Over Voltage Auto Reset Protecter Device DV2-1S40A Digital LCD Under Voltage Over Voltage Auto Reset Protecter Device DV2-1S40A Digital LCD Under Voltage Over Voltage Auto Reset Protecter Device DV2-1S40A Digital LCD Under Voltage Over Voltage Auto Reset Protecter Device
