DT9-2M16 Programmable 16 Functions Multi function Digital Relay AC/DC12V-240V or 230V
DT9-2M16 Programmable 16 Functions Multi function Digital Relay AC/DC12V-240V or 230V
Specifications
Place of Origin :
Zhejiang, China
Brand Name :
Customized
Model Number :
DT9-2M16
Theory :
Time Relay
Usage :
General Purpose
Size :
Miniature
Protect Feature :
Sealed
Contact Load :
Low Power
Supply voltage :
AC/DC 12-240V or 230V
Time ranges :
0.01s-100h
Time setting :
Rotary switch and potentiometer
Reset time :
max.200ms
Repeat accuracy :
0.2%- set value stability
Pollution degree :
2
Switching voltage :
250V AC1/24V DC
Electrical strength :
4kV(supply - output)
Mounting :
DIN rail EN 60715
Storage temperature :
-40℃~+85℃
Packaging Details :
1.Strong Strandard Export Package,Meet The Long-Distance Transportation
Port :
Ningbo or Shanghai
Supply Ability :
5000 Piece/Pieces per Month
MOQ :
10 pieces
Price :
$12.63/pieces >=10 pieces
Description

DT9-2M16 Programmable 16 Functions Multi function Digital Relay AC/DC12V-240V or 230V

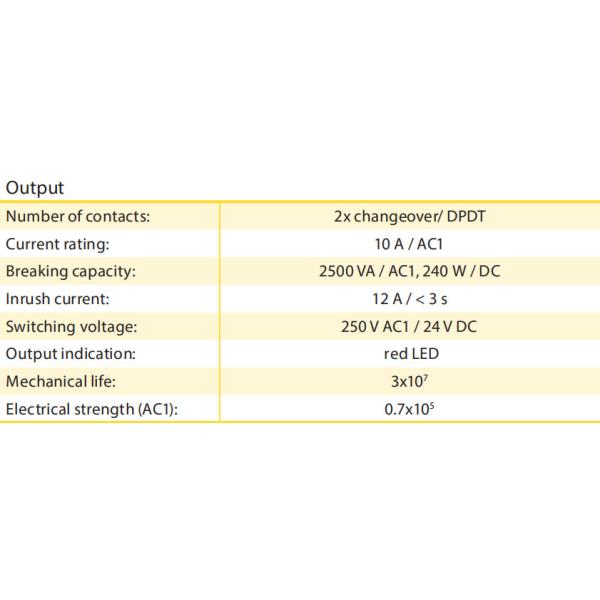

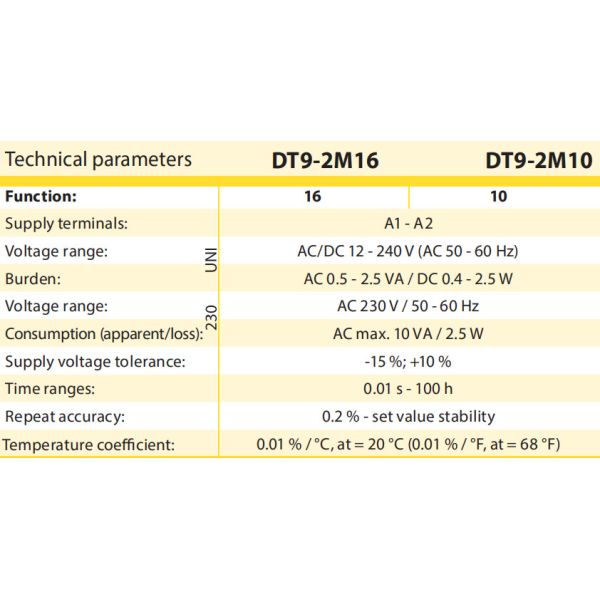

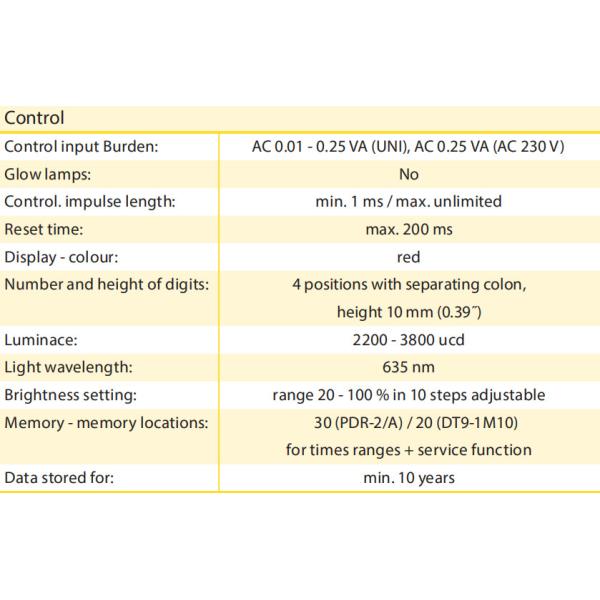

Technical parameters

DT9-2M16 Programmable 16 Functions Multi function Digital Relay AC/DC12V-240V or 230V DT9-2M16 Programmable 16 Functions Multi function Digital Relay AC/DC12V-240V or 230V DT9-2M16 Programmable 16 Functions Multi function Digital Relay AC/DC12V-240V or 230V DT9-2M16 Programmable 16 Functions Multi function Digital Relay AC/DC12V-240V or 230V

♦ Multifunction programmable digital relay with 4 digit LCD display.

♦ Control and setting are done by 3 buttons, user-friendly menu, absolute accuracy in timer setting, time countdown on a display, galvanucally separated START and STOP control inputs with UNI supply.

♦ Thanks to its complexity, it is possible to program also more demanding time functions by using 2 indepedent times.

♦ 2 independent times, with conbination of 2 inputs and 2 outputs.

♦ DT9-2M16: 16 functions, choice of functions of the other relay, 30 memory places for most frequently used times.

♦ 2 independent times in range: 0.01s-100hrs.

♦ Supply voltage: AC/DC 12-240V or AC 230V.

♦ 3 MODULE, DIN rail mounting.

Description

DT9-2M16 Programmable 16 Functions Multi function Digital Relay AC/DC12V-240V or 230V

Symbol

DT9-2M16 Programmable 16 Functions Multi function Digital Relay AC/DC12V-240V or 230V

Time data

DT9-2M16 Programmable 16 Functions Multi function Digital Relay AC/DC12V-240V or 230V

Connection

DT9-2M16 Programmable 16 Functions Multi function Digital Relay AC/DC12V-240V or 230V

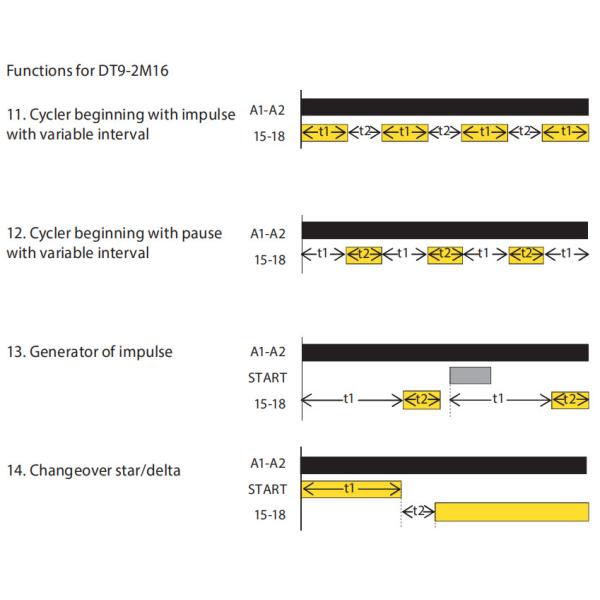

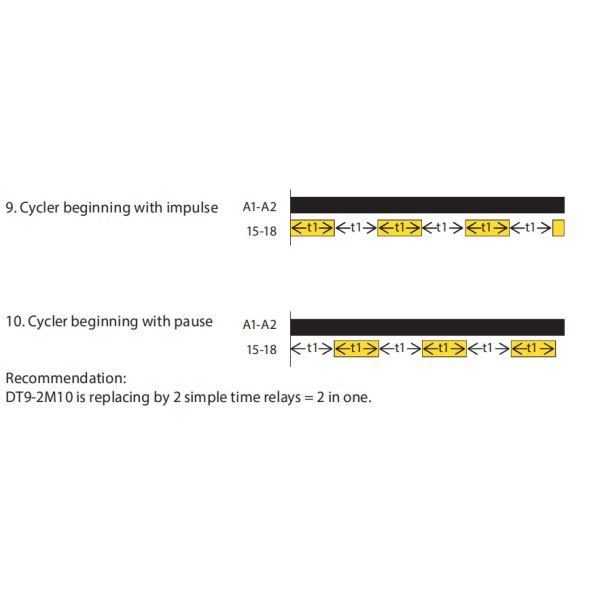

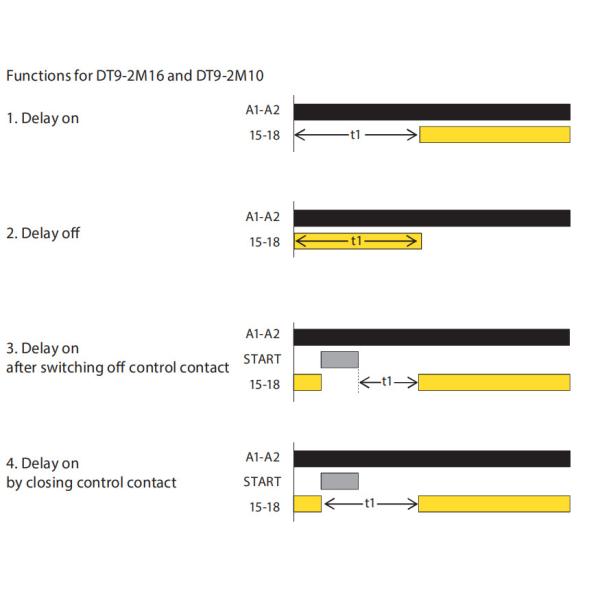

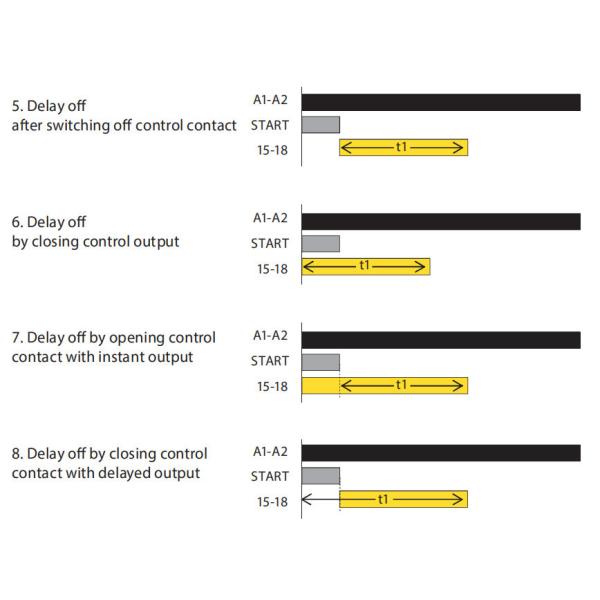

Function

DT9-2M16 Programmable 16 Functions Multi function Digital Relay AC/DC12V-240V or 230V DT9-2M16 Programmable 16 Functions Multi function Digital Relay AC/DC12V-240V or 230V DT9-2M16 Programmable 16 Functions Multi function Digital Relay AC/DC12V-240V or 230V DT9-2M16 Programmable 16 Functions Multi function Digital Relay AC/DC12V-240V or 230V DT9-2M16 Programmable 16 Functions Multi function Digital Relay AC/DC12V-240V or 230V

Model Voltage Unit Dimensions Price
DT9-2M16

AC/DC 12-240V

(AC 50-60Hz)

 1PC 90*36*70mm $12.63
DT9-2M16 Programmable 16 Functions Multi function Digital Relay AC/DC12V-240V or 230V DT9-2M16 Programmable 16 Functions Multi function Digital Relay AC/DC12V-240V or 230V DT9-2M16 Programmable 16 Functions Multi function Digital Relay AC/DC12V-240V or 230V DT9-2M16 Programmable 16 Functions Multi function Digital Relay AC/DC12V-240V or 230V
