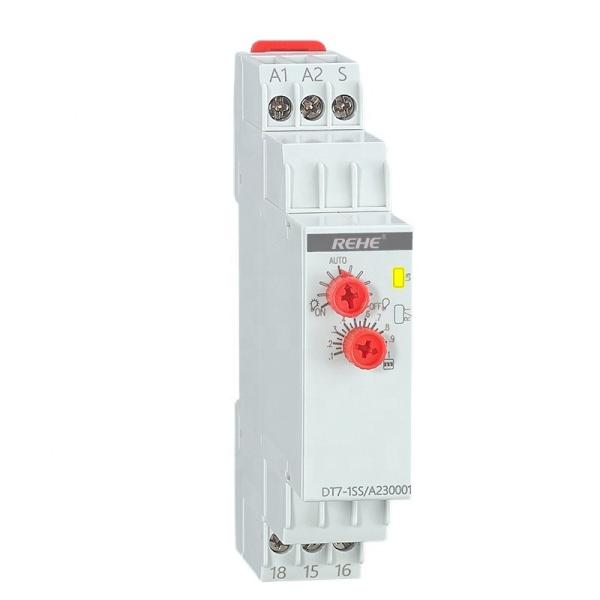

DT7-1SS Din Rail Delay OFF Programmable Staircase Switch with Signalling before Switch off AC 230V Relay
DT7-1SS Din Rail Delay OFF Programmable Staircase Switch with Signalling before Switch off AC 230V Relay
Specifications
Place of Origin :
Zhejiang, China
Brand Name :
SUCHEN
Model Number :
DT7-1SS
Theory :
Time Relay
Usage :
General Purpose
Size :
Miniature
Protect Feature :
Sealed
Contact Load :
Low Power
Function :
Delay off reacting to control contact switching
Voltage range :
AC 230V / 50-60Hz
Supp terrminals :
A1-A2
Time setting :
Potentiometer
Time ranges :
0.5-10min
Repeat accuracy :
5%- set value stability
Control voltage :
AC 230V
Switching voltage :
250V AC1/24V DC
Consumption (apparent/loss) :
AC max. 12VA/1.3W
Numbers of contacts :
1*changeover/SPDT
Packaging Details :
1.Strong Strandard Export Package,Meet The Long-Distance Transportation
Port :
Ningbo or Shanghai
Supply Ability :
5000 Piece/Pieces per Month
MOQ :
10 pieces
Price :
$6.50 - $7.50/pieces
Description

DT7-1SS Din Rail Delay OFF Programmable Staircase Switch with Signalling before Switch off AC 230V Relay

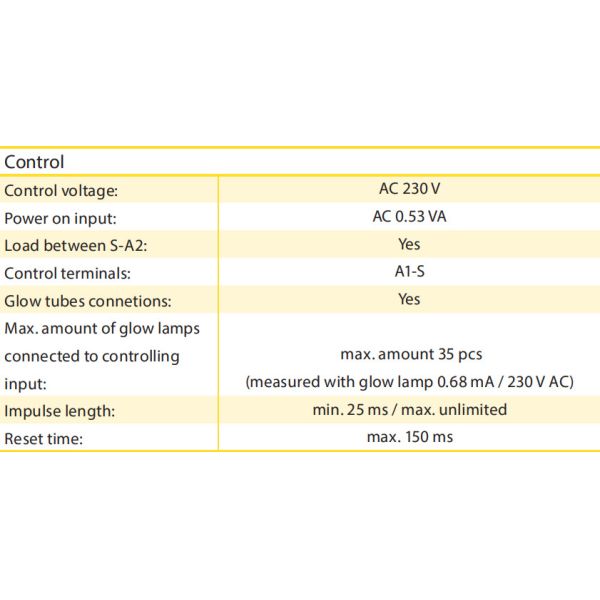

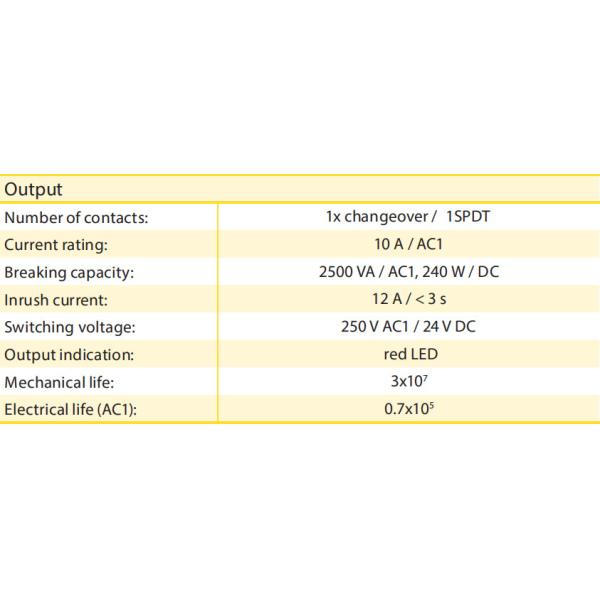

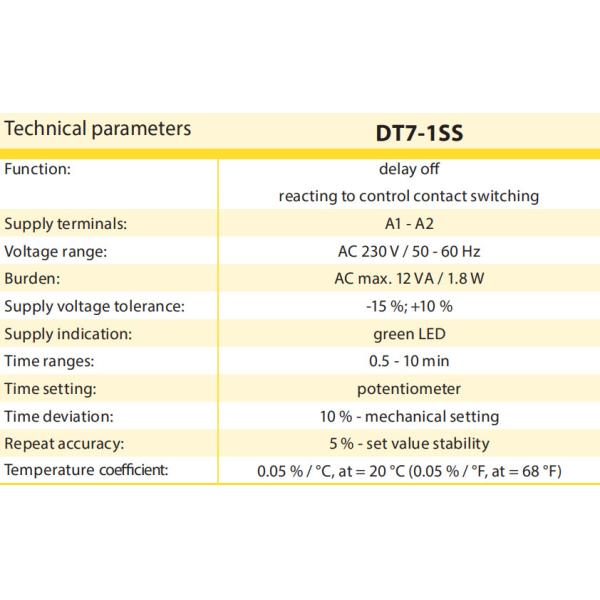

Technical parameters

DT7-1SS Din Rail Delay OFF Programmable Staircase Switch with Signalling before Switch off AC 230V Relay DT7-1SS Din Rail Delay OFF Programmable Staircase Switch with Signalling before Switch off AC 230V Relay DT7-1SS Din Rail Delay OFF Programmable Staircase Switch with Signalling before Switch off AC 230V Relay DT7-1SS Din Rail Delay OFF Programmable Staircase Switch with Signalling before Switch off AC 230V Relay

♦ Used for delayed switching of lights in the corridors, entrances, stairways, halls or for delayed finish of fans (WC, bathrom, etc.).

♦ It is controlled by a button or by several buttons from more places (connected in parallel), buttons can be equipped by glow lamps (max. 20pcs of glow lamps).

♦ Output relay contact 10A/AC 1 with surge current up to 20A enables switching of el.

bulbs and fluorescent lamps.

♦ Operating system switch:

- AUTO - normal function according to set time.

- OFF - permanently OFF (e.g. when changing bulbs).

- ON - permanently ON (e.g. while cleaning, servicing).

♦ Time range: 0.5-10min.

♦ Time setting by potentiometer.

♦ Supply voltage: AC 230V.

♦ Protection against button blocking (e.g. a match inserted in a button).

♦ 1-MODULE, DIN rail mounting.

Description

DT7-1SS Din Rail Delay OFF Programmable Staircase Switch with Signalling before Switch off AC 230V Relay

Circuit connection

DT7-1SS Din Rail Delay OFF Programmable Staircase Switch with Signalling before Switch off AC 230V Relay

Symbol

DT7-1SS Din Rail Delay OFF Programmable Staircase Switch with Signalling before Switch off AC 230V Relay

Function

DT7-1SS Din Rail Delay OFF Programmable Staircase Switch with Signalling before Switch off AC 230V Relay

Model Voltage Unit Dimensions Price
DT7-1SS AC 230V 1PC 90*18*70mm $6.33
DT7-1SS Din Rail Delay OFF Programmable Staircase Switch with Signalling before Switch off AC 230V Relay DT7-1SS Din Rail Delay OFF Programmable Staircase Switch with Signalling before Switch off AC 230V Relay DT7-1SS Din Rail Delay OFF Programmable Staircase Switch with Signalling before Switch off AC 230V Relay DT7-1SS Din Rail Delay OFF Programmable Staircase Switch with Signalling before Switch off AC 230V Relay
