DT7-1ZR SPDT Delay ON Programmable Single Function and Single-Time Relay AC/DC12V-240V
DT7-1ZR SPDT Delay ON Programmable Single Function and Single-Time Relay AC/DC12V-240V
Specifications
Place of Origin :
Zhejiang, China
Brand Name :
SUCHEN
Model Number :
DT7-1ZR
Theory :
Time Relay
Usage :
General Purpose
Size :
Miniature
Protect Feature :
Sealed
Contact Load :
Low Power
Function :
Delay OFF
Voltage range :
AC/DC 12-240 V (AC 50-60 Hz)
Current rating :
10A / AC1
Time setting :
Potentiometer
Repeat accuracy :
0.2%- set value stability
Supply indication :
Green LED
Switching voltage :
250V AC1/24V DC

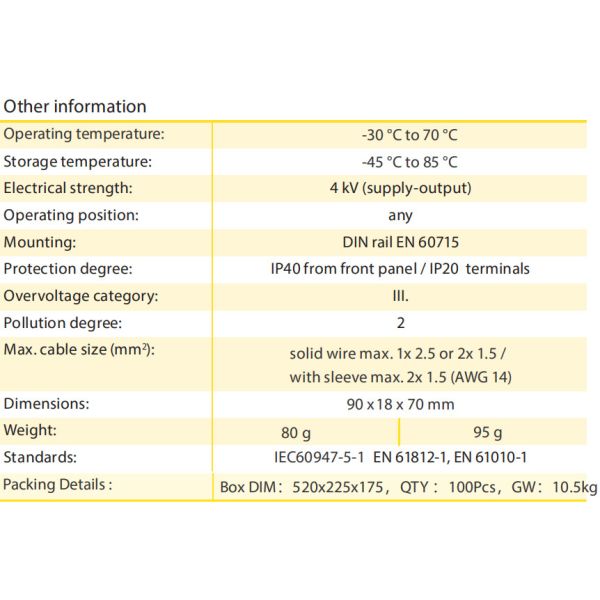

Electrical strength :
4kV(supply - output)
Mounting :
DIN rail EN 60715
Storage temperature :
-40℃~+85℃
Packaging Details :
1.Strong Strandard Export Package,Meet The Long-Distance Transportation
Port :
Ningbo or Shanghai
Supply Ability :
5000 Piece/Pieces per Month
MOQ :
10 pieces
Price :
$7.50 - $8.50/pieces
Description

DT7-1ZR SPDT Delay ON Programmable Single Function and Single-Time Relay AC/DC12V-240V

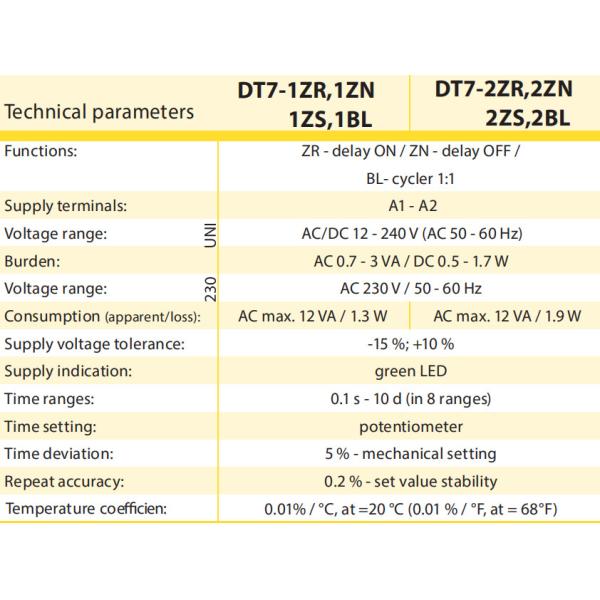

Parameter

♦ Single-function and single-time relay with fine time setting by a potentiometer (within the frames of a particular time range).

♦ Suitable for applications where function and time requirements are known.

♦ Time switch, possible to be used for pump delay after switching heating off, switching of fans.

♦ Choice of 4 functions:

1) ZR - Delay ON

2) ZN - Delay OFF

3) ZS - Delay ON with Puse

4) BL - Repeat Cycle

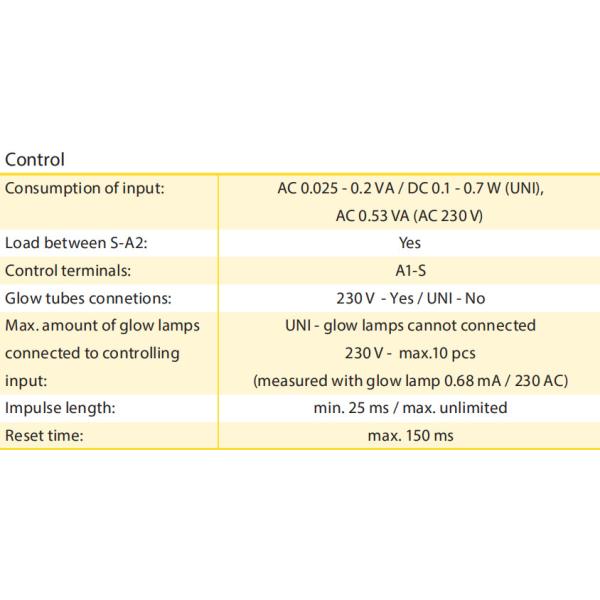

♦ Functions can be controlled by supply voltage or time scale control input.

♦ Choice of 6 time ranges:(0.1s-1s / 1s-10s / 0.1min-1 min / 6s-60s /1 min-10 min / 6min-60min / 1h-10hrs)

♦ Universal supply voltage AC/DC 12-240V or AC 230V,

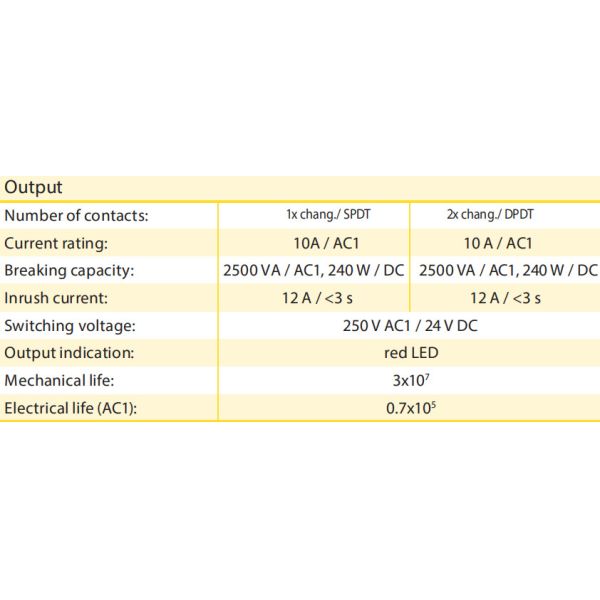

♦ Output contact: DT7-1**.: 1×changeover/SPDT 10A;

DT7-2**.: 1×changeover/DPDT 10A.

♦ Red LED output indicator.

♦ 1-MODULE, DIN rail mounting.DT7-1ZR SPDT Delay ON Programmable Single Function and Single-Time Relay AC/DC12V-240V DT7-1ZR SPDT Delay ON Programmable Single Function and Single-Time Relay AC/DC12V-240V DT7-1ZR SPDT Delay ON Programmable Single Function and Single-Time Relay AC/DC12V-240V DT7-1ZR SPDT Delay ON Programmable Single Function and Single-Time Relay AC/DC12V-240V

Description

DT7-1ZR SPDT Delay ON Programmable Single Function and Single-Time Relay AC/DC12V-240V

Functions

DT7-1ZR SPDT Delay ON Programmable Single Function and Single-Time Relay AC/DC12V-240V

Connection

DT7-1ZR SPDT Delay ON Programmable Single Function and Single-Time Relay AC/DC12V-240V

Symbol

DT7-1ZR SPDT Delay ON Programmable Single Function and Single-Time Relay AC/DC12V-240V

Example of an order

DT7-1ZR SPDT Delay ON Programmable Single Function and Single-Time Relay AC/DC12V-240V

Model Voltage Unit Dimensions Price
DT7-1ZR AC/DC 12-240 V 1PC 90*18*70mm $7.32
DT7-1ZR SPDT Delay ON Programmable Single Function and Single-Time Relay AC/DC12V-240V DT7-1ZR SPDT Delay ON Programmable Single Function and Single-Time Relay AC/DC12V-240V DT7-1ZR SPDT Delay ON Programmable Single Function and Single-Time Relay AC/DC12V-240V DT7-1ZR SPDT Delay ON Programmable Single Function and Single-Time Relay AC/DC12V-240V
