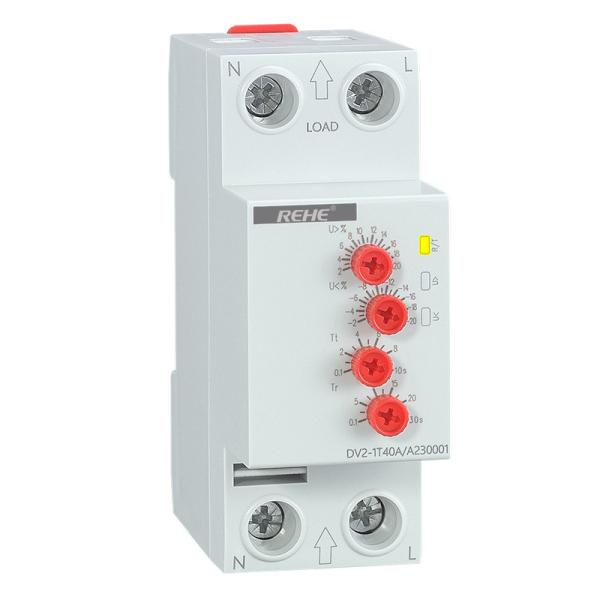

DV2-1T40A Single Phase Auto Reset Over Voltage and Under Voltage Protective Device 40A
DV2-1T40A Single Phase Auto Reset Over Voltage and Under Voltage Protective Device 40A
Specifications
Place of Origin :
Zhejiang, China
Brand Name :
Customized
Model Number :
DV2-1T40A
Theory :
Voltage Relay
Usage :
PROTECTIVE
Size :
Miniature
Protect Feature :
Sealed
Contact Load :
Low Power
Supply terminals :
L1-N
Voltage range :
145-300V AC 50-60Hz
Burden :
AC max. 1.2VA/0.5W
Upper level (U max) :
AC 225V-275V
Bottom level (U min) :
AC 165V-215V
Max. permanent :
AC 300V
Peak overload<1ms :
AC 450V
Electrical strength :
4 kV (supply-output)
Switching voltage :
250V AC1
Operational current :
40A
Packaging Details :
1.Strong Strandard Export Package,Meet The Long-Distance Transportation
Port :
Ningbo or Shanghai
Supply Ability :
5000 Piece/Pieces per Week
MOQ :
10 pieces
Price :
$11.38/pieces >=10 pieces
Description

DV2-1T40A Single Phase Auto Reset Over Voltage and Under Voltage Protective Device 40A

Technical parameters

DV2-1T40A Single Phase Auto Reset Over Voltage and Under Voltage Protective Device 40A DV2-1T40A Single Phase Auto Reset Over Voltage and Under Voltage Protective Device 40A DV2-1T40A Single Phase Auto Reset Over Voltage and Under Voltage Protective Device 40A DV2-1T40A Single Phase Auto Reset Over Voltage and Under Voltage Protective Device 40A

It serves to control supply voltage for appliances sensitive to supply tolerance, protection of the device against under/over voltage.

♦ DV2-1G is fixed settings, DV2-1T is Adjustable settings over/under voltage relay. For difference settings of over/under voltage.

♦ 3-state indication-LEDs indicating normal state and 2 fault states.

♦ Supply from monitored voltage (monitors level of its own supply).

♦ 2-MODULE, DIN rail mounting.

Description

DV2-1T40A Single Phase Auto Reset Over Voltage and Under Voltage Protective Device 40A DV2-1T40A Single Phase Auto Reset Over Voltage and Under Voltage Protective Device 40A

Connection

DV2-1T40A Single Phase Auto Reset Over Voltage and Under Voltage Protective Device 40A

Symbol

DV2-1T40A Single Phase Auto Reset Over Voltage and Under Voltage Protective Device 40A

Model Voltage range Switching voltage Operational current Unit Price
DV2-1T40A

145-300V

AC 50-60Hz

 250V AC1 40A 1PC $11.38

DV2-1T40A Single Phase Auto Reset Over Voltage and Under Voltage Protective Device 40A DV2-1T40A Single Phase Auto Reset Over Voltage and Under Voltage Protective Device 40A DV2-1T40A Single Phase Auto Reset Over Voltage and Under Voltage Protective Device 40A DV2-1T40A Single Phase Auto Reset Over Voltage and Under Voltage Protective Device 40A
