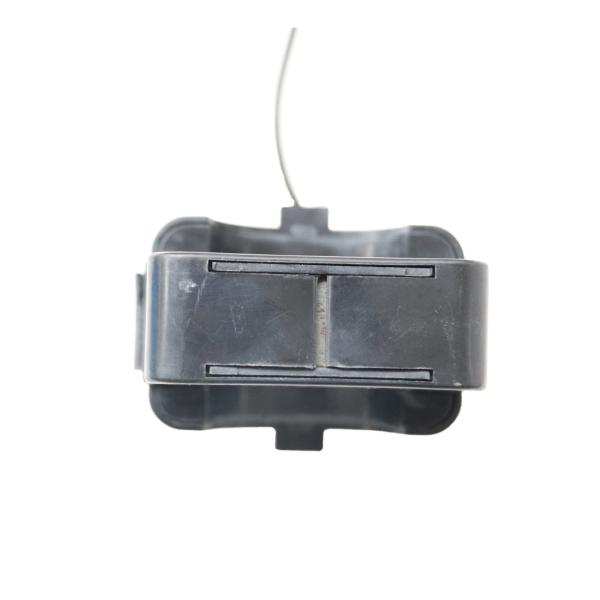

Split Core Current Transformer KCT-36 300A/100mA 400A/40mA 500A/50mA 600A/60mA 300-600/0.333V AC Current Sensor Split
Split Core Current Transformer KCT-36 300A/100mA 400A/40mA 500A/50mA 600A/60mA 300-600/0.333V AC Current Sensor Split
Split Core Current Transformer KCT-36 300A/100mA 400A/40mA 500A/50mA 600A/60mA 300-600/0.333V AC Current Sensor Split
Split Core Current Transformer KCT-36 300A/100mA 400A/40mA 500A/50mA 600A/60mA 300-600/0.333V AC Current Sensor Split
Specifications
Place of Origin :
Zhejiang, China
Brand Name :
Customized
Model Number :
KCT
Usage :
Current
Phase :
Single
Coil Structure :
TOROIDAL
Coil Number :
AUTOTRANSFORMER
Usage: :
Current
Phase: :
Single
Primary input: :
600A
Secondary output: :
0-500mA/1A/5A/333mV
Accuracy: :
1.0/0.5/0.5s
Core :
Silicon steel sheet / Ferrite / AMD / Permalloy
Outer Case: :
PA UL94-V0/ PC
Packaging Details :
1. Standard export carton ,suitable for long distance transportation.
2. Can customized package with customer's design,carton,box,and tape
Port :
NINGBO/SHANGHAI
Supply Ability :
10000 Piece/Pieces per Day
Price :
$10.00 - $25.00/pieces
Description
Product Description

Split Core Current Transformer KCT-36 300A/100mA 400A/40mA 500A/50mA 600A/60mA 300-600/0.333V AC Current Sensor Split

Split Core Current Transformer KCT-36 300A/100mA 400A/40mA 500A/50mA 600A/60mA 300-600/0.333V AC Current Sensor Split

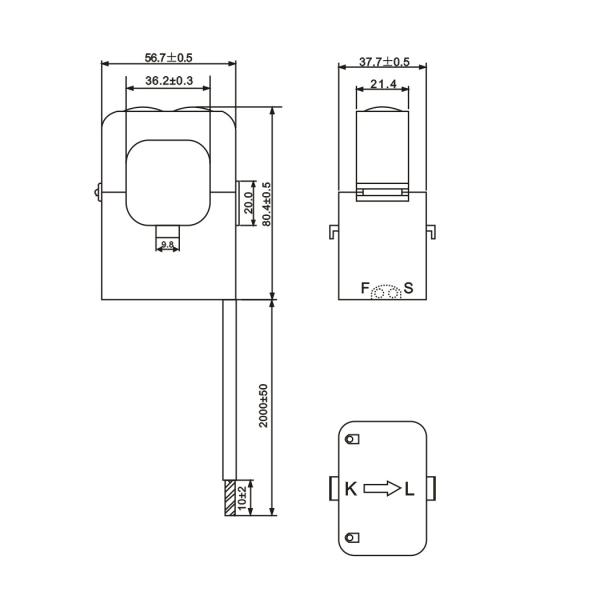

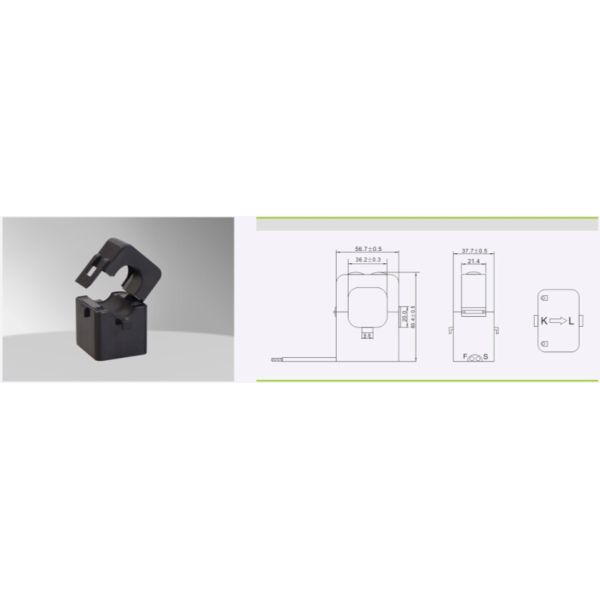

Model KCT-36
Current Ratio 300A/100mA 400A/40mA 500A50mA 600A/60mA 300-600A/0.333V
Primary Current (A) 300A 400A 500A 600A 300-600A
Max. Current (A) 360A 480A 600A 720A 720A
Output 100mA 40mA 50mA 60mA 0.333V
Load Resistance (Ω) 50Ω 50Ω 50Ω 50Ω /
Turns Ration
Class 0.5/1.0
Protection Level 7.5V0-P
Insuliation Category CATIII
Operating Condition -20℃ ~ +50℃, ≤85%RH, No condensation, IN-house & Any direction installable
Storage Condition -30℃ ~ +50℃, ≤85%RH, No condensation
Company Information

Split Core Current Transformer KCT-36 300A/100mA 400A/40mA 500A/50mA 600A/60mA 300-600/0.333V AC Current Sensor Split Split Core Current Transformer KCT-36 300A/100mA 400A/40mA 500A/50mA 600A/60mA 300-600/0.333V AC Current Sensor Split Split Core Current Transformer KCT-36 300A/100mA 400A/40mA 500A/50mA 600A/60mA 300-600/0.333V AC Current Sensor Split

Q: What are we doing?

A: Renhe Electrical manufacturer here, specialized in DIGITAL PANEL METER (A V Hz Cos W Var Kwh Varh) for 12 years.

Q: What’s the advantage compared to other suppliers?

A: Competitive price with high quality of product and superior service. We have professional sales team, production team, researching team.

Q:How is our customer service?

A: all our sales representatives can speak fluent English, some speak French. They will answer all of your questions in 24 hours.

Q:What others can we offer?

A: Based on the wide product range, we offer the best One-Stop sourcing service. We will definitely save you a lot of time and money,

and based on our huge quantity of shipment, we can get the best shipping service from the best forwarders. This will also help you to save a lot on the shipment.

Q:What is the MOQ of our products?

A:The MOQ for digital ammeter is 100 sets.

Q:What is the payment of our company?

A. DP DA T/T L/C O/A is acceptable for us.
