single phase ac current transformer DX-20 50/5A - 150/5A current transformer 200 5 ratio
single phase ac current transformer DX-20 50/5A - 150/5A current transformer 200 5 ratio
single phase ac current transformer DX-20 50/5A - 150/5A current transformer 200 5 ratio
single phase ac current transformer DX-20 50/5A - 150/5A current transformer 200 5 ratio
Specifications
Place of Origin :
China
Brand Name :
SUCHEN
Model Number :
DX-20
Usage :
Current
Phase :
Single
Coil Structure :
TOROIDAL
Coil Number :
AUTOTRANSFORMER

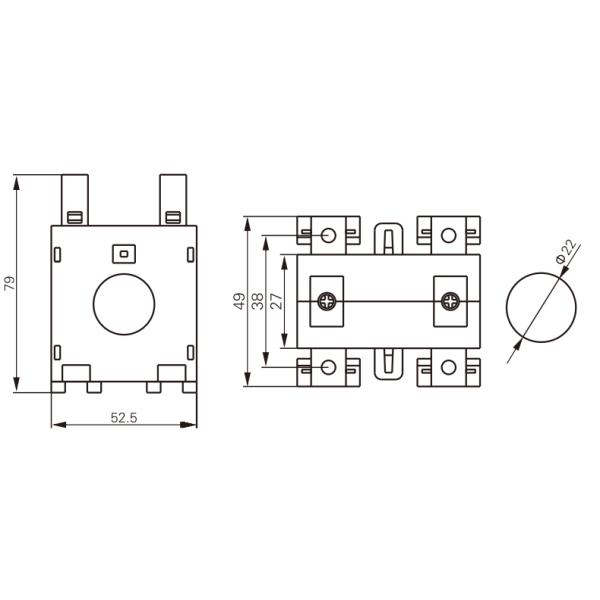

Hole size: :
20mm
Bobbin: :
PBT
Output connection: :
Terminal
Construction: :
Screw
Frequency: :
50/60 Hz
Output: :
5A / 1A
Packaging Details :
1) one piece DX located in one white paper box.
2) then put white boxes to HEYI designed carton.
3) We would design the carton size based on quantity you ordered making the packing size smallest.
Port :
Ningbo
Supply Ability :
10000 Piece/Pieces per Month
Price :
$2.30 - $3.00/pieces
Description
Product Description

Product Description DX discription

DX range of current transformers have been designed to be double terminal entry which allows short circuit

links to be fitted when it is necessary to disconnect the measuring instrument from the transformer without damage

to the CT, or for easier termination to ground of the CT

Features

1) Safe, easy to install, portable

2) Wide inner window, allowing clamping of big cables or bus-bars

3) Wide range of sizes to accommodate all the existing installations

Technique Indes

Electrical Parameter Mechanical Parameter
Frequency 50/60Hz Case PC/UL94-V0
Rated Input

1A-6000A

 Bobbin PBT
Measuring range 5%ln-120%ln Core Silicon steel
Rated Output 1A, 5A Construction Screw
Rated Voltage 0.72KV(AC) Operating Temp -25℃ to +75℃
Dielectric strength 3.0KV/1mA/1min Operating Humidity ≤85%
Insulation Resistance DC500V/100MΩmin Output Connection Terminal

Model Confirm


customers' requirement.
