Intelligent Generator used MCB type double power automatic transfer switch
Intelligent Generator used MCB type double power automatic transfer switch
Intelligent Generator used MCB type double power automatic transfer switch
Intelligent Generator used MCB type double power automatic transfer switch
Intelligent Generator used MCB type double power automatic transfer switch
Intelligent Generator used MCB type double power automatic transfer switch
Intelligent Generator used MCB type double power automatic transfer switch
Intelligent Generator used MCB type double power automatic transfer switch
Intelligent Generator used MCB type double power automatic transfer switch
Intelligent Generator used MCB type double power automatic transfer switch
Intelligent Generator used MCB type double power automatic transfer switch
Intelligent Generator used MCB type double power automatic transfer switch
Specifications
Warranty :
3months-1year
Certification :
CE
Place of Origin :
Zhejiang, China
Brand Name :
SC
Model Number :
q1
ATS Operation type :
ATS dual power switch
Number of poles :
2/3/4 poles
ATS Rated Current :
10,16,20,25,32,40,50,63A
Frame Class :
63A
ATS Function :
generator starting
ATS classification :
Circuit breaker
ATSE :
Class CB,with overload and short circuit protection
Control device :
Built-in controller
ATS size :
258*125*111mm
ATS Switch :
on-off-on
Packaging Details :
Package of the double power switch : Polybag & Paper box & Export carton
Port :
Shanghai/Ningbo
Supply Ability :
2000 Piece/Pieces per Day
Price :
$18.00 - $23.00/pieces
Description

Intelligent Generator used MCB type double power automatic transfer switch

Model No. Specification
ATSQ1-63-4P 63A,4POLES

Intelligent Generator used MCB type double power automatic transfer switch Intelligent Generator used MCB type double power automatic transfer switch Intelligent Generator used MCB type double power automatic transfer switch Intelligent Generator used MCB type double power automatic transfer switch Intelligent Generator used MCB type double power automatic transfer switch Intelligent Generator used MCB type double power automatic transfer switch Intelligent Generator used MCB type double power automatic transfer switch Intelligent Generator used MCB type double power automatic transfer switch

RH-ATSQ1 Dual Power Automatic Transfer Switch (A.T.S for short) applies to the terminal double-loop power supply system that 50Hz/60Hz, rated operating voltage 220V(2p),380V (3p and 4p), rated current 10 ~ 63 A. It can automatically switch the normal power to reserved power to prove the reliability of power supply, mainly used for fire pumps, smoke fans, elevators, pumps, lighting in high-rise buildings, shopping malls and other places.

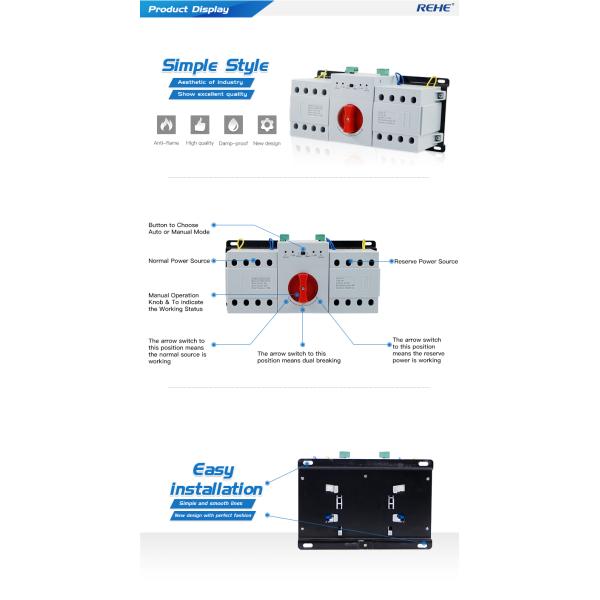

When the main power supply is normal,using the automatic model,the circuit breaker of reserve power supply is off,the circuit breaker of main power supply is on.When one phase or all three phase of the main power supply is off,the ATS will convert to the reserve power supply(the reserve power is normal),when the main power is normal,the reserve power will recover back to main power again.
