Hot sellting Dual Power Automatic Transfer Switch 2P/3P/4P AC400V 32A~125A
Hot sellting Dual Power Automatic Transfer Switch 2P/3P/4P AC400V 32A~125A
Hot sellting Dual Power Automatic Transfer Switch 2P/3P/4P AC400V 32A~125A
Hot sellting Dual Power Automatic Transfer Switch 2P/3P/4P AC400V 32A~125A
Hot sellting Dual Power Automatic Transfer Switch 2P/3P/4P AC400V 32A~125A
Hot sellting Dual Power Automatic Transfer Switch 2P/3P/4P AC400V 32A~125A
Hot sellting Dual Power Automatic Transfer Switch 2P/3P/4P AC400V 32A~125A
Hot sellting Dual Power Automatic Transfer Switch 2P/3P/4P AC400V 32A~125A
Specifications
Certification :
CE, ROHS,
Whether the smart :
NO
Place of Origin :
Zhejiang, China
Brand Name :
Customized
Model Number :
ATSQ1-NA
Max. Current :
125A
Max. Voltage :
400V
Product name :
RH-ATSQ1-NA series Double/Dual Automatic Transfer Switch
OEM :
Yes
Material :
Class PC
Rated voltage :
400V
Rated current :
32A-125A
Standard :
GB/T 14048.11
Number of Poles :
2P/3P/4P
Package :
Standard Export Carton
Express :
DHL, TNT, EMS, Fedex
Type :
Automatic Transfer Switch
Packaging Details :
1.Strong Strandard Export Package,Meet The Long-Distance Transportation
2.According To Your Requirements.
RH-ATSQ1-M Series double power automatic transfer switch
MOQ :
10 pieces
Price :
$137.25/pieces 10-99 pieces
Description
Foreword

Thanks for using our company products. We will provide reliable quality and dedicated service to allow you to rest assured to use our company products. Before installation, circuit connection, running and maintenance, please make sure to read carefully the user manual, to ensure the correct using, during using please also make sure know very well of relative safety and caution items.

Summary

This product is suitable for AC 415V, the rated frequency is 50 Hz, DC 250V and below. All specifications have 3-pole, 4-pole, 400A and below have 2-pole products. This product is mainly used for the first class load specified by the state, and is widely used in fire fighting, post and telecommunications, hospitals, hotels, high-rise buildings, industrial assembly lines, and television stations that need to be connected to important parts of the power supply. The main and backup power sources can be power grids and power grids, and automatic start Generator sets, battery packs, etc.

Hot sellting Dual Power Automatic Transfer Switch 2P/3P/4P AC400V 32A~125A

Hot sellting Dual Power Automatic Transfer Switch 2P/3P/4P AC400V 32A~125A

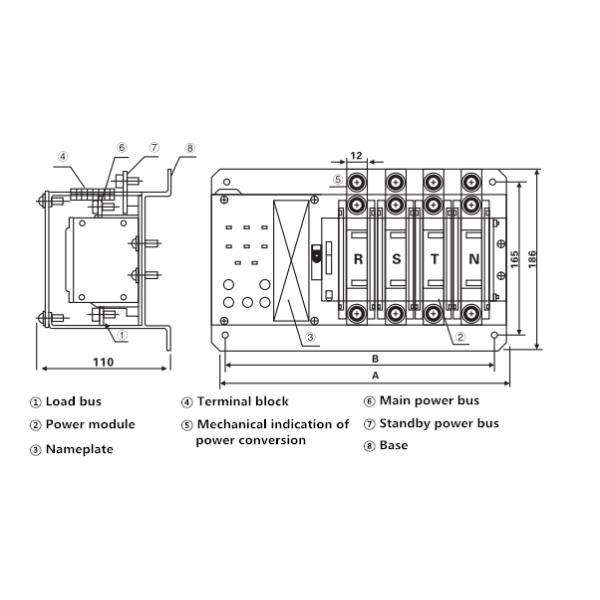

Dimension

Hot sellting Dual Power Automatic Transfer Switch 2P/3P/4P AC400V 32A~125A Hot sellting Dual Power Automatic Transfer Switch 2P/3P/4P AC400V 32A~125A

Model RTSQ1-32NA RTSQ1-40NA RTSQ1-63NA RTSQ1-125NA
Rated current 25.32 40 63 125
Operating current 3.5 3.5 3.5 3.5
Rated short time withstand current 5 5 5 5
Service life (Mechanical) 8000 8000 8000 8000
Service life (Electrical) 3000 3000 3000 3000
Poles 2P/3P/4P 2P/3P/4P 2P/3P/4P 2P/3P/4P
Weight (kg) 4.2/4.7/5.2 5/5.5/6.5 5/5.5/6.5 5/5.5/6.5
Operating cycle 15 15 15 15
Hot sellting Dual Power Automatic Transfer Switch 2P/3P/4P AC400V 32A~125A Hot sellting Dual Power Automatic Transfer Switch 2P/3P/4P AC400V 32A~125A Hot sellting Dual Power Automatic Transfer Switch 2P/3P/4P AC400V 32A~125A Hot sellting Dual Power Automatic Transfer Switch 2P/3P/4P AC400V 32A~125A
