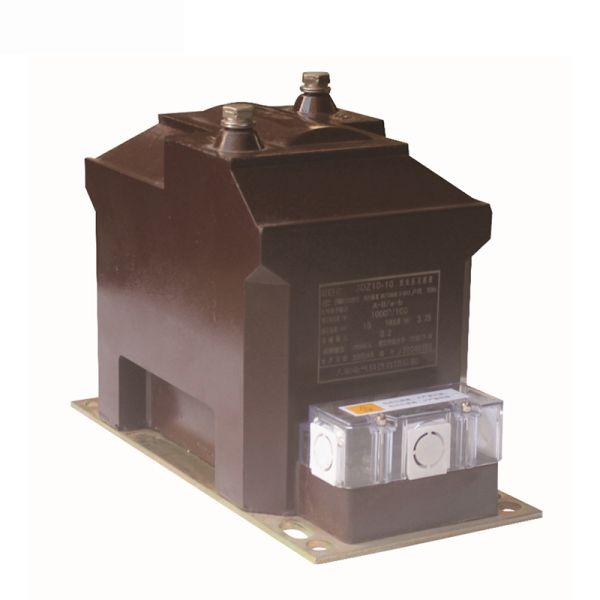

JDZ10-10A Voltage Transformer High-Accuracy High Voltage Transformer
JDZ10-10A Voltage Transformer High-Accuracy High Voltage Transformer
JDZ10-10A Voltage Transformer High-Accuracy High Voltage Transformer
JDZ10-10A Voltage Transformer High-Accuracy High Voltage Transformer
JDZ10-10A Voltage Transformer High-Accuracy High Voltage Transformer
JDZ10-10A Voltage Transformer High-Accuracy High Voltage Transformer
JDZ10-10A Voltage Transformer High-Accuracy High Voltage Transformer
JDZ10-10A Voltage Transformer High-Accuracy High Voltage Transformer
Specifications
Place of Origin :
Zhejiang, China
Brand Name :
Customized
Model Number :
JDZ10-10A
Phase :
Single
Coil Number :
AUTOTRANSFORMER
Usage :
Potential, Metering Protection
Coil Structure :
TOROIDAL
Rated Primary Voltage :
100
Rated Secondary Voltage :
10000
Type :
JDZ10-10A
Color :
Brown
Product name :
Indoor Single Phase Epoxy Resin Casting Type Cureent Transformer
Material :
Copper
Frequency :
50Hz/60Hz
Keyword :
Voltage Transformer
Temperature :
-5℃~+40℃
Specifications :
10/0.1
Rated insulation level :
12/42/75, 7.2/32/60kV
Packaging Details :
Standard Export Packing
MOQ :
10 pieces
Price :
$140.00/pieces 10-299 pieces
Description

JDZ10-10A Voltage Transformer High-Accuracy High Voltage TransformerJDZ10-10A Voltage Transformer High-Accuracy High Voltage Transformer

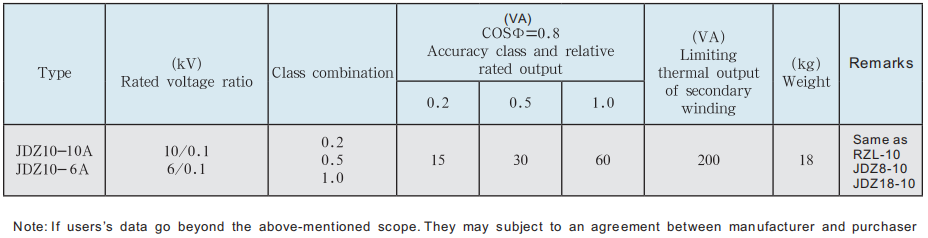

Technical data

The voltage transformers are in accordance
with GB20840.3 and IEC60044-2 standards
Rated insulation level: 12/42/75, 7.2/32/60kV
Rated frequency: 50Hz or 60Hz
JDZ10-10A Voltage Transformer High-Accuracy High Voltage Transformer JDZ10-10A Voltage Transformer High-Accuracy High Voltage Transformer
Model Usage Rated insulation level Unit Price
JDZ10-10A Metering Protection 12/42/75, 7.2/32/60kV 1PC $135~140
JDZ10-10A Voltage Transformer High-Accuracy High Voltage Transformer JDZ10-10A Voltage Transformer High-Accuracy High Voltage Transformer JDZ10-10A Voltage Transformer High-Accuracy High Voltage Transformer JDZ10-10A Voltage Transformer High-Accuracy High Voltage Transformer
