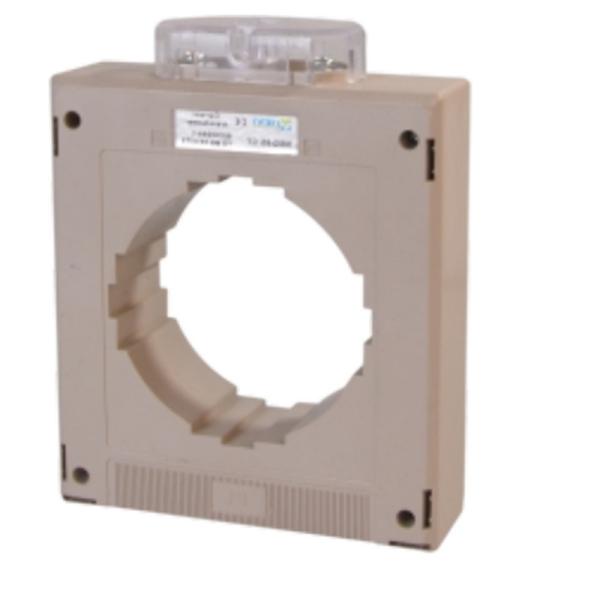

ct 800/5 current transformer MSQ-85 single phase ammeter ct 750/5A to 2000/5A
ct 800/5 current transformer MSQ-85 single phase ammeter ct 750/5A to 2000/5A
Specifications
Place of Origin :
Zhejiang, China
Brand Name :
Customized
Model Number :
MSQ85
Usage :
Current
Phase :
Single
Coil Structure :
TOROIDAL
Coil Number :
AUTOTRANSFORMER
Usage: :
Current
Coil Structure: :
Toroidal, MSQ current transformer
standard: :
IEC60044-1,BS7626,VDE0414
Coil Number: :
Autotransformer
Ratio: :
5/5A--300/5
Sheathing material: :
PC,ABS
Type: :
Busbar current transformer
Rated voltage: :
0.72KV
Frequency: :
50/60Hz
Packaging Details :
one pcs packed one box, 60pcs packed one carton
Port :
Ningbo
Supply Ability :
10000 Piece/Pieces per Month
Price :
$8.00 - $9.00/pieces
Description
Product Description

ct 800/5 current transformer MSQ-85 single phase ammeter ct 750/5A to 2000/5A

MSQ current transformer(MSQ-40 500/5A CLASS:0.5 15VA )

We are direct current transformer manufacturer, not middle man , We can offer you the great quality & competitive price.

MSQ range of Encased metering and measuring current transformer are designed and manufactured to cater for wide range of applications. Its quality has been proven and tested to IEC: 44-1 (1996) & ASTA Certified.

FEATURES:

  • Flame retardant
  • High mechanical strength
  • High dielectric strength
  • Transparent sealable terminal cover
  • Base or Bus bar mounting

Description:

MSQ Current Transformers are suitable to be applied to test, control, display and record the running of the electrical equipment, in the AC circuit with the rated voltage value below 0.72KV and the frequency of 50-60Hz, mainly used in combination with measure meters like ammeter, watt-hour meter, control relayu etc.

MSQ current transformer / MFO current transformer:
1.Model:MSQ-30,MSQ-30B,MSQ-30T,MSQ-40,MSQ-60,MSQ-85,MSQ-100,MSQ-125
2.Standard:IEC60044-1
3.Certificate:ISO9001:2000, ISO14001:1996,CE
4. Professory transformer manufacturer
Specifications:
1.Rated current:5/5A-6000/5A,
2.Secondary current :5A.1A
3.Rated voltage:0.72kV
4.Rated frequency:50/60Hz
5.Class of accuracy:0.5~1.0
6. Rated security coefficient :FS<5
7.Ambient Temperature Range:-20 to +80

NOTE: We can supply some color if customer need ,like Grey ,Black and Blue

Model Primary / Secondary Busbar Hole Dimensions(mm) Rated Burden (VA) Accuracy Class Rated Voltage
MSQ-30B 5/5A~300/5A busbar 5~7.5 0.5 / 1.0 0.72KV(AC)
MSQ-30 30/5A~300/5A φ=30mm 2.5~10 0.5 / 1.0 0.72KV(AC)
MSQ-40 100/5A~500/5A φ=40mm 2.5~10 0.5/1.0 0.72KV(AC)
MSQ-60 250/5A~1600/5A φ=60mm 5~15 0.5/1.0 0.72KV(AC)
MSQ-85 750/5A~2000/5A φ=85mm 5~15 0.5/1.0 0.72KV(AC)
MSQ-100 800/5A~3000/5A φ=100mm 5~15 0.5/1.0 0.72KV(AC)
MSQ-125 1000/5A~6000/5A φ=125mm 5~20 0.5/1.0 0.72KV(AC)

ct 800/5 current transformer MSQ-85 single phase ammeter ct 750/5A to 2000/5A ct 800/5 current transformer MSQ-85 single phase ammeter ct 750/5A to 2000/5A ct 800/5 current transformer MSQ-85 single phase ammeter ct 750/5A to 2000/5A
