Programmable Doublestage Delay Unit DT7-2JR AC/DC12V-240V 50-60Hz Electronic Relay DPDT
Programmable Doublestage Delay Unit DT7-2JR AC/DC12V-240V 50-60Hz Electronic Relay DPDT
Specifications
Place of Origin :
Zhejiang, China
Brand Name :
Customized
Model Number :
DT7-2JR
Theory :
Time Relay
Usage :
General Purpose
Size :
Miniature
Protect Feature :
Sealed
Contact Load :
Low Power
Voltage range :
AC/DC 12-240V(AC 50-60Hz)
Supp terminals :
A1-A2
Time ranges :
0.1s-10 days
Time setting :
Rotary switch and potentiometer
Repeat accuracy :
0.2%- set value stability
Function :
2*Delay ON (2 time relays in one)
Switching voltage :
250V AC1/24V DC
Electrical strength :
4kV(supply - output)
Mounting :
DIN rail EN 60715
Storage temperature :
-40℃~+85℃
Packaging Details :
1.Strong Strandard Export Package,Meet The Long-Distance Transportation
Price :
$10.68/pieces
Description

Programmable Doublestage Delay Unit DT7-2JR AC/DC12V-240V 50-60Hz Electronic Relay DPDT

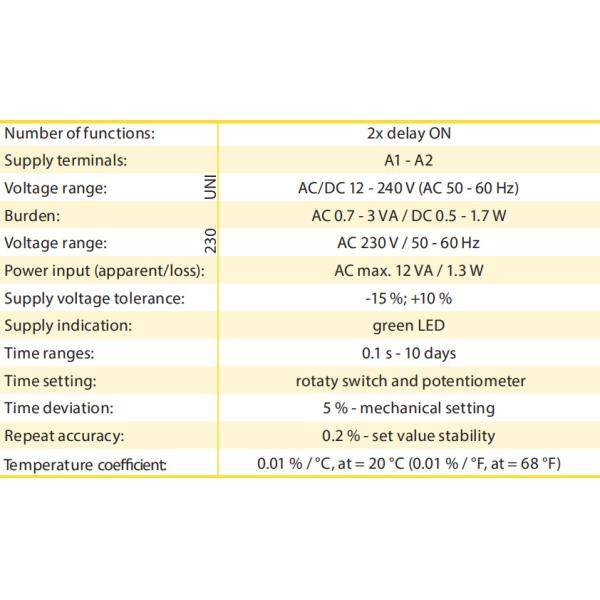

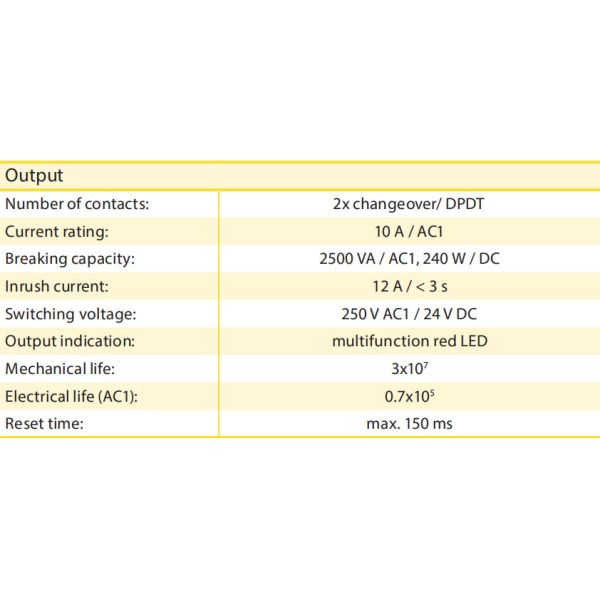

Technical parameters

Programmable Doublestage Delay Unit DT7-2JR AC/DC12V-240V 50-60Hz Electronic Relay DPDT Programmable Doublestage Delay Unit DT7-2JR AC/DC12V-240V 50-60Hz Electronic Relay DPDT Programmable Doublestage Delay Unit DT7-2JR AC/DC12V-240V 50-60Hz Electronic Relay DPDT

♦ For gradual switching of high power (e.g.el.heating), prevents current strokes in the main.

♦ Function: 2×Delay ON (2 time relays in one).

♦ Time scale 0.1s-10 days divided into 10 time ranges:

0.1s-1s / 1s-10s / 0.1min-1min / 1min-10min / 0.1h-1h / 1h-10hrs / 0.1 day-1 day / 1 day-10 days / ON / OFF

♦ Times t1 and t2 are independantly adjustable.

♦ t1 and t2 are switched on after supply voltage connection.

♦ Rough time setting via rotary switch.

♦ Voltage range: AC 230V or AC/DC 12-240V.

♦ Output contact: 2×changeover / DPDT 10A.

♦ Output indication: multifunction red LED, flashing at certain states.

♦ 1-MODULE, DIN rail mounting.

Description

Programmable Doublestage Delay Unit DT7-2JR AC/DC12V-240V 50-60Hz Electronic Relay DPDT

Function

Programmable Doublestage Delay Unit DT7-2JR AC/DC12V-240V 50-60Hz Electronic Relay DPDT

Connection

Programmable Doublestage Delay Unit DT7-2JR AC/DC12V-240V 50-60Hz Electronic Relay DPDT

Symbol

Programmable Doublestage Delay Unit DT7-2JR AC/DC12V-240V 50-60Hz Electronic Relay DPDT

Model Voltage Unit Dimensions Price
DT7-2JR AC/DC 12-240 V 1PC 90*18*70mm $10.68
Programmable Doublestage Delay Unit DT7-2JR AC/DC12V-240V 50-60Hz Electronic Relay DPDT Programmable Doublestage Delay Unit DT7-2JR AC/DC12V-240V 50-60Hz Electronic Relay DPDT Programmable Doublestage Delay Unit DT7-2JR AC/DC12V-240V 50-60Hz Electronic Relay DPDT Programmable Doublestage Delay Unit DT7-2JR AC/DC12V-240V 50-60Hz Electronic Relay DPDT
