DT7-1M10 AC/DC12V-240V Electronic Programmable Multifunction Relay
DT7-1M10 AC/DC12V-240V Electronic Programmable Multifunction Relay
Specifications
Place of Origin :
Zhejiang, China
Brand Name :
SUCHEN
Model Number :
DT7-1M10
Theory :
Time Relay
Usage :
General Purpose
Size :
Miniature
Protect Feature :
Sealed
Contact Load :
Low Power
Supp terminals :
A1-A2
Voltage range :
AC/DC 12-240 V (AC 50-60 Hz)
Time ranges :
0.1s-10 days
Time setting :
Rotary switch and potentiometer
Repeat accuracy :
0.2%- set value stability
Supply indication :
Green LED
Switching voltage :
250V AC1/24V DC
Electrical strength :
4kV(supply - output)
Mounting :
DIN rail EN 60715
Storage temperature :
-40℃~+85℃
Packaging Details :
1.Strong Strandard Export Package,Meet The Long-Distance Transportation
Price :
$8.46/pieces
Description

DT7-1M10 AC/DC12V-240V Electronic Programmable Multifunction Relay

Parameter

1. Multifunction time relay can be used for electrical appliances, control of lights, heating, motors, pumps and fans (10 functions, 10 time ranges, multi-voltage, 10A or 2×10A contacts).

2. Fullfills all requirements for time relays.

3. 10 functions:

- 5 time functions controlled by supply voltage

- 4 time functions controlled by control input

- 1 function of latching relay

4. Comfortable and well-arranged function and time-range setting by rotary switches.

5. Time scale 0.1s - 10 days divided into 10 ranges: (0.1s-1s / 1s-10s / 0.1min-1 min / 1min-10 min / 0.1hrs-1h / 1h-10hrs / 0.1 day-1 day / 1 day-10 days / only ON / only OFF).

♦ DT7-1M10, DT7-3M10

- universal supply voltage AC/DC 12-240V or AC 230V,

- Output contact: DT7-1M10: 1×changeover/SPDT 10A;

DT7-2M10: 1×changeover/DPDT 10A.

6. Multifunction red LED output indicator flashes or shines depending on the status of output.

7. 1-MODULE, DIN rail mounting

DT7-1M10 AC/DC12V-240V Electronic Programmable Multifunction Relay DT7-1M10 AC/DC12V-240V Electronic Programmable Multifunction Relay DT7-1M10 AC/DC12V-240V Electronic Programmable Multifunction Relay DT7-1M10 AC/DC12V-240V Electronic Programmable Multifunction Relay

Description

DT7-1M10 AC/DC12V-240V Electronic Programmable Multifunction Relay

Connection

DT7-1M10 AC/DC12V-240V Electronic Programmable Multifunction Relay

Symbol

DT7-1M10 AC/DC12V-240V Electronic Programmable Multifunction Relay

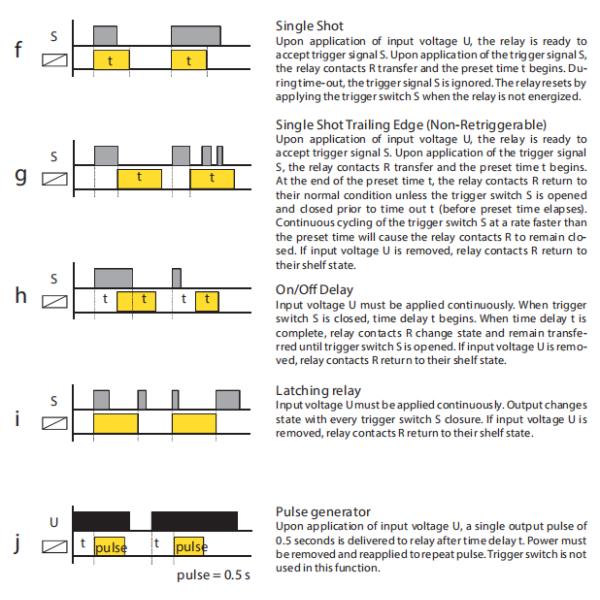

Function

DT7-1M10 AC/DC12V-240V Electronic Programmable Multifunction Relay DT7-1M10 AC/DC12V-240V Electronic Programmable Multifunction Relay

Time ranges

DT7-1M10 AC/DC12V-240V Electronic Programmable Multifunction Relay

Model Voltage Unit Dimensions Price
DT7-1M10 AC/DC 12-240 V 1PC 90*18*70mm $8.46
DT7-1M10 AC/DC12V-240V Electronic Programmable Multifunction Relay DT7-1M10 AC/DC12V-240V Electronic Programmable Multifunction Relay DT7-1M10 AC/DC12V-240V Electronic Programmable Multifunction Relay DT7-1M10 AC/DC12V-240V Electronic Programmable Multifunction Relay
