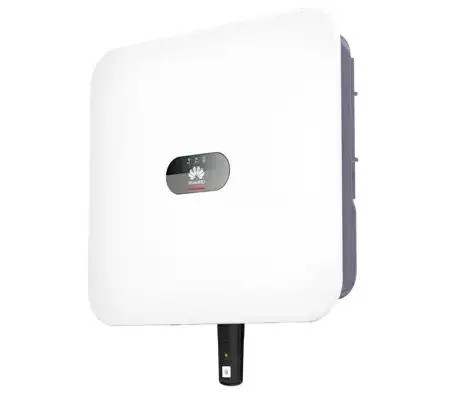

Huawei Hybrid inverter SUN2000-3/4/5/6KTL-L1 single phase solar inverter smart energy controller
Huawei Hybrid inverter SUN2000-3/4/5/6KTL-L1 single phase solar inverter smart energy controller
Huawei Hybrid inverter SUN2000-3/4/5/6KTL-L1 single phase solar inverter smart energy controller
Huawei Hybrid inverter SUN2000-3/4/5/6KTL-L1 single phase solar inverter smart energy controller
Huawei Hybrid inverter SUN2000-3/4/5/6KTL-L1 single phase solar inverter smart energy controller
Huawei Hybrid inverter SUN2000-3/4/5/6KTL-L1 single phase solar inverter smart energy controller
Huawei Hybrid inverter SUN2000-3/4/5/6KTL-L1 single phase solar inverter smart energy controller
Huawei Hybrid inverter SUN2000-3/4/5/6KTL-L1 single phase solar inverter smart energy controller
Huawei Hybrid inverter SUN2000-3/4/5/6KTL-L1 single phase solar inverter smart energy controller
Huawei Hybrid inverter SUN2000-3/4/5/6KTL-L1 single phase solar inverter smart energy controller
Huawei Hybrid inverter SUN2000-3/4/5/6KTL-L1 single phase solar inverter smart energy controller
Huawei Hybrid inverter SUN2000-3/4/5/6KTL-L1 single phase solar inverter smart energy controller
Specifications
Place of Origin :
Shenzhen
Brand Name :
Huawei
Model Number :
SUN2000-6KTL-L1
Input Voltage :
360V
Output Voltage :
220Vac/230Vac/240Vac
Output Current :
27.3A
Output Frequency :
50Hz/60Hz
Output Type :
Single
Size :
365*365*156mm
Type :
DC/AC Inverters
Inverter Efficiency :
98.4%
Certificate :
CE Rohs
Warranty :
5 years
Weight :
21kg
Packaging Details :
One piece per carton.
Port :
Ningbo, Shanghai, Shenzhen
Supply Ability :
100 Piece/Pieces per Week
Price :
$820.00/pieces 1-9 pieces
Description
Recommend Products
Products Description
Huawei Hybrid inverter SUN2000-3/4/5/6KTL-L1 single phase solar inverter smart energy controller
Huawei Hybrid inverter SUN2000-3/4/5/6KTL-L1 single phase solar inverter smart energy controller
Huawei Hybrid inverter SUN2000-3/4/5/6KTL-L1 single phase solar inverter smart energy controller
Huawei Hybrid inverter SUN2000-3/4/5/6KTL-L1 single phase solar inverter smart energy controller
Huawei Hybrid inverter SUN2000-3/4/5/6KTL-L1 single phase solar inverter smart energy controller
SUN2000-6KTL-L1
6KW Single Phase
Datasheet
Model Name
SUN2000 -6KTL-L1
SUN2000-6KTL-L3
Input DC
Recommended max. PV power
9000Wp
7.5kW
9kW
Max. input voltage
600V
Start-up voltage
200V
MPPT voltage range
90V-560V
Max.current per MPPT
12.5A
MPPT number/Max. input strings number
2
Output (AC)
Rated output power
6kW
5kW
6kW
Rated output voltage
220 Vac / 230 Vac / 240 Vac
Rated grid frequency
50/60Hz
Max. output current
27.3A
25 A
27.3 A
Power Factor
0.8leading - 0.8laging
THDi
<3%
Efficiency
Max. efficiency
98.4%
EU efficiency
97.8%
Protection
DC reverse-polarity protection
Yes
Short circuit protection
Yes
Output over current protection
Yes
Surge protection
Yes
Grid monitoring
Yes
Anti-islanding protection
Yes
Temperature protection
Yes
Integrated AFCI (DC arc-fault circuit protection)
Yes
Integrated DC switch
Yes
General Data
Dimensions (W*H*D)
365mm * 365mm * 156 mm
Weight
12 kg
Topology
Transformerless
Self consumption
<5.5W
Operating temperature range
-25 ~ +60°C
Relative humidity
0-100%RH
Ingress protection
IP65
Cooling concept
Natural convection
Max. operation altitude
4000m
Safety Grid Connection Standards
EN 62109-1/-2, IEC 62109-1/-2, EN 50530, IEC 62116, IEC 60068, IEC 61683,IEC 61727, VDE-AR-N4105, VDE 0126-1-1, BDEW, G59/3, UTE C
15-712-1, CEI 0-16, CEI 0-21, RD 661, RD 1699,P.O. 12.3,RD 413, EN-50438-Turkey, EN-50438-Ireland, C10/11, MEA, Resolution
No.7,NRS 097-2-1, AS/NZS 4777.2, DEWA
Features
DC Connector
Staubli MC4
AC Connector
Waterproof Connector + OT/DT Terminal
Display
LED Indicators, Integrated WLAN + FusionSolar APP
Communication
RS485, Optional: Wi-Fi, GPRS
Huawei Hybrid inverter SUN2000-3/4/5/6KTL-L1 single phase solar inverter smart energy controller
Company Profile
Huawei Hybrid inverter SUN2000-3/4/5/6KTL-L1 single phase solar inverter smart energy controller
Why Choose Us
Huawei Hybrid inverter SUN2000-3/4/5/6KTL-L1 single phase solar inverter smart energy controller
Huawei Hybrid inverter SUN2000-3/4/5/6KTL-L1 single phase solar inverter smart energy controller
Product packaging
Huawei Hybrid inverter SUN2000-3/4/5/6KTL-L1 single phase solar inverter smart energy controller
FAQ
Huawei Hybrid inverter SUN2000-3/4/5/6KTL-L1 single phase solar inverter smart energy controller
Q1: What is the delivery time?
A1: It's according to the model. We will ship the items within 3 days if the items in stock.

Q2: What ways of payment do you accept.
A2: We can accept LC, Paypal, Credit card, etc.

Q3: Will you provide shipping sevice?
A3: Yes. We will choose the best shipping way and shipping company for the customers according to the demands.

Q4: What if we have problems after sale?
A4: Don't worry. We have professional technicians ready for our customers who can take care of the problems.

Q5: What is the minimum quantity?
A5: We can send a sample to you. If you are satisfied with our products and service. Please place larger quantity to us.

Q6: Are the inverters original?
A6: Yes. Of course. If it's not. We will return all money back to you.
