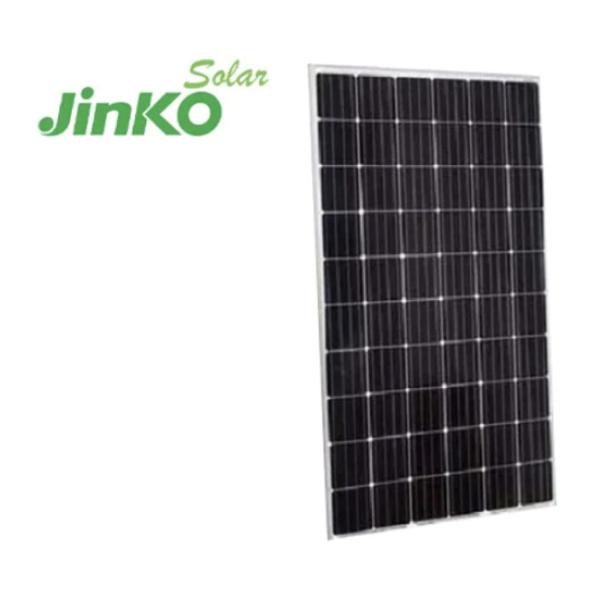

Mono Facial Polycrystalline Solar Panel 480w Jinko Mono Half Cell 182mm JKM480M-7RL3
Mono Facial Polycrystalline Solar Panel 480w Jinko Mono Half Cell 182mm JKM480M-7RL3
Mono Facial Polycrystalline Solar Panel 480w Jinko Mono Half Cell 182mm JKM480M-7RL3
Mono Facial Polycrystalline Solar Panel 480w Jinko Mono Half Cell 182mm JKM480M-7RL3
Specifications
Brand Name :
Jinko
Model Number :
JKM480M-7RL3
Place of Origin :
Jiangxi, China
MOQ :
30 pieces
Price :
$0.23/pieces 30-99 pieces
Supply Ability :
100 Piece/Pieces per Week
Packaging Details :
One piece per carton.
Cell size :
182mmx182mm
Type :
Half Cell
Panel Dimensions :
1903*1134*30mm
Panel Efficiency :
21.38%
Certificate :
CE
Warranty :
25 Years
Port :
Ningbo, Shanghai, Shenzhen
Description

Mono Facial Polycrystalline Solar Panel 480w Jinko Mono Half Cell 182mm JKM480M-7RL3

Product Description
Mono Facial Polycrystalline Solar Panel 480w Jinko Mono Half Cell 182mm JKM480M-7RL3

Specification

item value
place of Origin China Jiangxi
Brand Name Jinko
Model Number JKM465M-7RL3
Cell size 182mmx182mm
Type Half Cell
Panel Dimensions 1903*1134*30mm
Panel Efficiency 20.71%
Certificate CE
Warranty 25 Years
STC:Irradiance 1000W/m² Cell Temperature 25°C AM=1.5 / NOCT:Irradiance 800W/m² Cell Temperature 20°C AM=1.5 Wind Speed 1m/s
Module Type JKM460M-7RL3
JKM460M-7RL3-V		 JKM465M-7RL3
JKM465M-7RL3-V		 JKM470M-7RL3
JKM470M-7RL3-V		 JKM475M-7RL3
JKM475M-7RL3-V		 JKM480M-7RL3
JKM480M-7RL3-V
STC NOCT STC NOCT STC NOCT STC NOCT STC NOCT
Maximum Power (Pmax) 460Wp 342Wp 465Wp 346Wp 470Wp 350Wp 475Wp 353Wp 480Wp 357Wp
Maximum Power Voltage (Vmp) 43.08V 39.43V 43.18V 39.58V 43.28V 39.69V 43.38V 39.75V 43.48V 39.90V
Maximum Power Current (Imp) 10.68A 8.68A 10.77A 8.74A 10.86A 8.81A 10.95A 8.89A 11.04A 8.95A
Open-circuit Voltage (Voc) 51.70V 48.80V 51.92V 49.01V 52.14V 49.21V 52.14V 49.21V 52.34V 49.40V
Shart-circuit Current (Isc) 11.50A 9.29A 11.59A 9.36A 11.68A 9.43A 11.77A 9.51A 11.86A 9.58A
Module Efficiency STC(%) 20.49% 20.71% 20.93% 21.16% 21.38%
Operating Temperature(°C) -40°C - +85°C
Maximum System Voltage 1000/1500VDC(IEC)
Maximum Series Fuse Rating 20A
Power Tolerance 0-+3%
Temperature Coefficients of Pmax -0.35%／°C
Temperature Coefficients of Voc -0.28%／°C
Temperature Coefficients of Isc -0.048%／°C
Nominal Operating Cell Temperature (NOCT) 45土2°C

Mono Facial Polycrystalline Solar Panel 480w Jinko Mono Half Cell 182mm JKM480M-7RL3
Mono Facial Polycrystalline Solar Panel 480w Jinko Mono Half Cell 182mm JKM480M-7RL3
Mono Facial Polycrystalline Solar Panel 480w Jinko Mono Half Cell 182mm JKM480M-7RL3
Mono Facial Polycrystalline Solar Panel 480w Jinko Mono Half Cell 182mm JKM480M-7RL3
Mono Facial Polycrystalline Solar Panel 480w Jinko Mono Half Cell 182mm JKM480M-7RL3
Mono Facial Polycrystalline Solar Panel 480w Jinko Mono Half Cell 182mm JKM480M-7RL3
Packing & Delivery
Mono Facial Polycrystalline Solar Panel 480w Jinko Mono Half Cell 182mm JKM480M-7RL3
Mono Facial Polycrystalline Solar Panel 480w Jinko Mono Half Cell 182mm JKM480M-7RL3
One piece per carton.
Company Profile
Mono Facial Polycrystalline Solar Panel 480w Jinko Mono Half Cell 182mm JKM480M-7RL3
Mono Facial Polycrystalline Solar Panel 480w Jinko Mono Half Cell 182mm JKM480M-7RL3
Mono Facial Polycrystalline Solar Panel 480w Jinko Mono Half Cell 182mm JKM480M-7RL3

Mono Facial Polycrystalline Solar Panel 480w Jinko Mono Half Cell 182mm JKM480M-7RL3

Fuzhou Thinmax is a solar company located at the city Fuzhou which is the capital of Fujian province. We have about 50 office colleagues and 100 factory colleagues. With the professional colleagues and over 10 years experience of dealing with solar system, we are able to provide 100% satisfying service for customers. Not only for the ready products but also the customized products. In order to make the ship more fluently. We have cooperated with more than 20 shipping companies. After customers place the order. We will always choose the cheapest and reliable one to arrange the shipment. When customers have received the items. We have professional technician ready for customers if they have any problems.

Mono Facial Polycrystalline Solar Panel 480w Jinko Mono Half Cell 182mm JKM480M-7RL3
Mono Facial Polycrystalline Solar Panel 480w Jinko Mono Half Cell 182mm JKM480M-7RL3
Mono Facial Polycrystalline Solar Panel 480w Jinko Mono Half Cell 182mm JKM480M-7RL3Mono Facial Polycrystalline Solar Panel 480w Jinko Mono Half Cell 182mm JKM480M-7RL3
Mono Facial Polycrystalline Solar Panel 480w Jinko Mono Half Cell 182mm JKM480M-7RL3
Why Choose Us
Mono Facial Polycrystalline Solar Panel 480w Jinko Mono Half Cell 182mm JKM480M-7RL3Mono Facial Polycrystalline Solar Panel 480w Jinko Mono Half Cell 182mm JKM480M-7RL3
Product packaging
Mono Facial Polycrystalline Solar Panel 480w Jinko Mono Half Cell 182mm JKM480M-7RL3
FAQ
Q1: What is the delivery time?
A1: It's according to the model. We will ship the items within 3 days if the items in stock.

Q2: What ways of payment do you accept.
A2: We can accept LC, Paypal, Credit card, etc.

Q3: Will you provide shipping sevice?
A3: Yes. We will choose the best shipping way and shipping company for the customers according to the demands.

Q4: What if we have problems after sale?
A4: Don't worry. We have professional technicians ready for our customers who can take care of the problems.

Q5: What is the minimum quantity?
A5: We can send a sample to you. If you are satisfied with our products and service. Please place larger quantity to us.

Q6: Are the inverters original?
A6: Yes. Of course. If it's not. We will return all money back to you.
