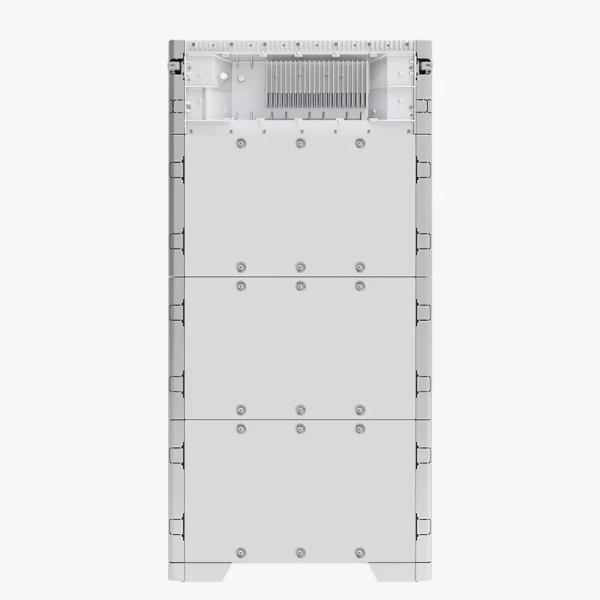

5kwh Solar Battery Storage System Huawei LUNA2000-5-S0 C0/E0 For Solar Inverter
5kwh Solar Battery Storage System Huawei LUNA2000-5-S0 C0/E0 For Solar Inverter
5kwh Solar Battery Storage System Huawei LUNA2000-5-S0 C0/E0 For Solar Inverter
5kwh Solar Battery Storage System Huawei LUNA2000-5-S0 C0/E0 For Solar Inverter
5kwh Solar Battery Storage System Huawei LUNA2000-5-S0 C0/E0 For Solar Inverter
5kwh Solar Battery Storage System Huawei LUNA2000-5-S0 C0/E0 For Solar Inverter
5kwh Solar Battery Storage System Huawei LUNA2000-5-S0 C0/E0 For Solar Inverter
5kwh Solar Battery Storage System Huawei LUNA2000-5-S0 C0/E0 For Solar Inverter
5kwh Solar Battery Storage System Huawei LUNA2000-5-S0 C0/E0 For Solar Inverter
5kwh Solar Battery Storage System Huawei LUNA2000-5-S0 C0/E0 For Solar Inverter
5kwh Solar Battery Storage System Huawei LUNA2000-5-S0 C0/E0 For Solar Inverter
5kwh Solar Battery Storage System Huawei LUNA2000-5-S0 C0/E0 For Solar Inverter
Specifications
Brand Name :
Huawei
Certification :
ce
Model Number :
LUNA2000-5-S0
Place of Origin :
Guangdong, China
Packaging Details :
One piece per carton.
Supply Ability :
100 Piece/Pieces per Week
MOQ :
5 pieces
Price :
$1,989.00/pieces 5-19 pieces
Weight :
63.8 kg
The charging ratio :
5kwh
The discharge rate :
5kwh
Warranty :
1 year
Anode Material :
LFP
Chargeable :
Yes
Application :
Solar Energy Storage Systems
Product ordering model :
LUNA2000-5KW-C0, LUNA2000-5-E0, LUNA2000 Wall Mounting Bracket
Port :
Ningbo, Shanghai, Shenzhen
Description

Huawei battery LUNA2000-5-S0 5kwh C0/E0 for solar inverter Smart String Energy Storage System Lithium Battery

Product Description
5kwh Solar Battery Storage System Huawei LUNA2000-5-S0 C0/E0 For Solar Inverter
5kwh Solar Battery Storage System Huawei LUNA2000-5-S0 C0/E0 For Solar Inverter
5kwh Solar Battery Storage System Huawei LUNA2000-5-S0 C0/E0 For Solar Inverter
5kwh Solar Battery Storage System Huawei LUNA2000-5-S0 C0/E0 For Solar Inverter
Specification
Technical Specification
LUNA2000-5-S0
LUNA2000-10-S0
LUNA2000-15-S0
Performance
Power module
LUNA2000-5KW-CO
Number of power modules
1
Battery module
LUNA2000-5-E0
Battery module energy
5 kwh
Number of battery Modultes
1
2
3
Battery usable energy
5 kwh
10 kwh
15 kwh
Max.output power
2.5 kW
5 kW
Peak output power
3.5 kw,10s
7kw,10s
Nominal voltage(uingle phane system
450V
Operating voltoge range (single phase system)
350-560V
Nominal voltage(three phase system)
600V
Opurating valtage range(three phase system)
600-980V
Communication
Dimension (W*D*H)
670*150*600(26.4*5.9*23.6 inch)
670*150*960mm(26.4*5.9*37.8 inch)
670*150*1320mm(26.4*59*60.0 inch)
Weight(Floor stand toolrit incuded)
63.8 kg(140.71b)
113.8kg(250.9 1b)
163.8 kg(361.1 b)
Power module dimension (W*D*H)
670*150*240mm(26.4*5.9*9.4 inch)
Power module weight
12 kg (26.5 lb)
Battery module dimension (W*D*H)
670*150*360mm(26.4*5.9*14.0 inch)
Battery module weight
50kg(110.21b)
Instaltation
Floor stand(standard),Wait mount (optional)
Operating temperature
-10℃~+55℃(-40F~1310F)2
Max,operating altiude
4.000m(13,123t)(Derating above 2.000 m)
Environment
Indoor/ Outdoor
Retative humidity
5%-95%
Cooling Naturd convection Protection rating


1P 66
Noise emssion
<29 dB
Cell technology
Lithium-iron phosphate(LiFePO4)
Scalability
Max.2systerns in parallet operation
Compatibte lnverters
SUN2000-364/5.58F10KTL-MOSUN2000-3/4/5/6/8/10KTL-M15UN2000273136814/46/5/6XTL-L1.
Standard Compliance(more available upon request)
Certificates
CERCMCECVDE2510-50IEC626191EC60730,UN38.3
Ordering and Deliverable Part
Product ordering model
LUNA2000-5KW-CO,LUNA2000-5-E0,LUNA2000 Wal Mounting Bracket
5kwh Solar Battery Storage System Huawei LUNA2000-5-S0 C0/E0 For Solar Inverter
Q1: What is the delivery time?
A1: It's according to the model. We will ship the items within 3 days if the items in stock.

Q2: What ways of payment do you accept.
A2: We can accept LC, Paypal, Credit card, etc.

Q3: Will you provide shipping sevice?
A3: Yes. We will choose the best shipping way and shipping company for the customers according to the demands.

Q4: What if we have problems after sale?
A4: Don't worry. We have professional technicians ready for our customers who can take care of the problems.

Q5: What is the minimum quantity?
A5: We can send a sample to you. If you are satisfied with our products and service. Please place larger quantity to us.

Q6: Are the inverters original?
A6: Yes. Of course. If it's not. We will return all money back to you.
