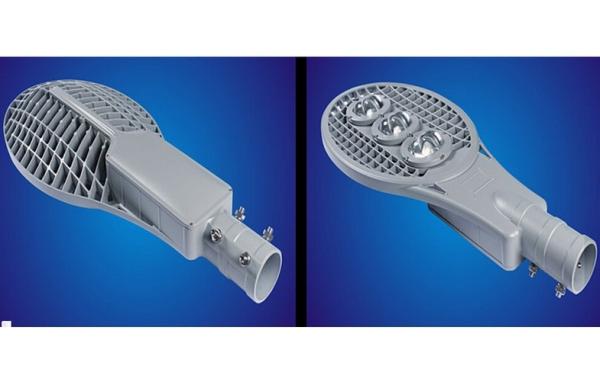

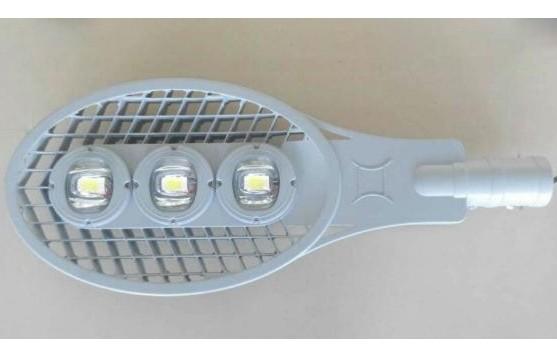

160W 180W 150W LED Street Lamp Bulbs for 12 pole with 3 Pieces COB Bridgelux chip
160W 180W 150W LED Street Lamp Bulbs for 12 pole with 3 Pieces COB Bridgelux chip
160W 180W 150W LED Street Lamp Bulbs for 12 pole with 3 Pieces COB Bridgelux chip
160W 180W 150W LED Street Lamp Bulbs for 12 pole with 3 Pieces COB Bridgelux chip
Specifications
Brand Name :
Bellaid
Model Number :
BLD-ST-YD-QP-240W
Certification :
CE/ROHS/FCC/TUV
Place of Origin :
Suzhou ,China
MOQ :
5pcs
Price :
negotiation
Payment Terms :
T/T, L/C, Western Union,Paypal
Supply Ability :
10,000pcs per month
Delivery Time :
20 working days after received your deposit
Packaging Details :
Packed in carton firstly,and then put them on pallet for shipment
Product Name :
LED street light
Input voltage :
90~265/305 AC operation with included LED driver
LED Chip brand: :
Bridgelux with 50mil LED chip
Lifespan: :
50000 Hrs
Application :
garden, courtyard, sidewalks, etc.
Wattage :
150-180W
Lumen Output: :
16000-18000Lm
Warranty: :
3 Years Warranty
Material Of Body: :
High pressure casting of aluminum
Beam angle :
70*140deg
Description

150-180W die casting aluminum LED street light for 12-15M pole with 1 Piece COB Bridgelux chip, up to 120lm/w from fixture.

Product Introduction :

Widely used in the main roads, highways, elevated roads, urban streets, bridges, sidewalks and other road lighting And other outdoor lighting places such as square, school, residential area, industrial zone, park and so on.

  • Environmental friendly with no mercury content
  • LED as light source offer very long life as compared to conventional source
  • Wide operating voltage of 100-305V
  • Color rendering index (CRI) >78
  • Pre-wired, easy installation
  • Warm white, pure white and cool white available
  • Compact design, less weight and high cost performance


A unique, tennis design with enhanced optic-lense, makes this IP66-rated area luminaire the most versatile to date, providing exceptional lighting performance and reduced total cost of ownership in variety of applications. The modular design accommodates up LEDs to allow for customization of illumination and economic performance for a wide range of applications. The advanced thermal management system contributes to unparalleled lumen maintenance

Can directly replace the traditional street lamp. Widely used in highway, trunk road, sub trunk road, branch and road lighting places

Specifications

Description led street light
Input Voltage AC85-305V
Freqency Range: 47-63HZ
Power Factor > 0.90
LED Consumption 150-180W
Beam Angel Transverse 150 °, Longitudinal 75 °
1W LED Luminous Efficiency: 110-130 lm/w
Lamp fixture Luminous Efficiency: 100-110 lm/w
Lamp fixture Flux(LM): eg: 180w: 16200-18000lm
Lamps Efficiency: > 80%
Color temperature Warm color(WW) 2700-3500K
Pure white(PW) 5000-6500K
Cold white(CW) 6500-7500K
Color Rendering Index Ra>=78
Life time >50, 000 Hours
Operating Temperature -30°Cto+50°C
Humidity Operating 10-80%
IP Code IP65, IP66 or IP67


Application:

1.Building outdoor wall Lighting

2.Outdoor Billboard Lighting

3.Palaestra Lighting

4.Square Lighting

Our services

Pre-sale service

1.Your inquiry related to our products or prices will be replied in 6 hours latest.
2. Provide professional offer.Provide detailed products test report and related specifications.
3. Provide professional led lighting technology support to meet the requirements of customers about photoelectric color.
4.OEM&ODM, any your customized lightings we can help you to design and put into product.


After sale service

We product provide 2 years warranty, all freight for replacing parts/lamp at our side

1. If driver failed, we’ll send new driver
2. If LED failed, we’ll sent new LED moduale
3. Unclear reason, we will sent full new set

Why choose Bellaid?

1. 8 years focused on LED.
2. One-stop lighting solutions (lighting designing, lighting choosing, solar and wind power solution etc.)
3. OEM & ODM are optional.
4. Independent innovation, design, open mold, striking Bellaid characteristic.
5. R&D team: 10 engineers with 9 years LED street light design work experience.
