Specifications
Brand Name :
BELLAID
Model Number :
BLD-GT-DL5inch-158-45W
Certification :
CE,SAA,FCC,C-TICK,Rosh.
Place of Origin :
China
MOQ :
25
Price :
USD5-7
Supply Ability :
50000 pcs per month
Delivery Time :
15-20 days
Packaging Details :
carton
Material :
1070 aluminum heat sink +aluminum reflective cup
Power :
45w
Color temperature :
2700-6500K
Input voltage :
AC90-264/277V
Lenght :
Dia 158*140mm
Lumen :
3900~4200 LM
CRI :
over 80
Description

We supply Free samples for your test/ref.

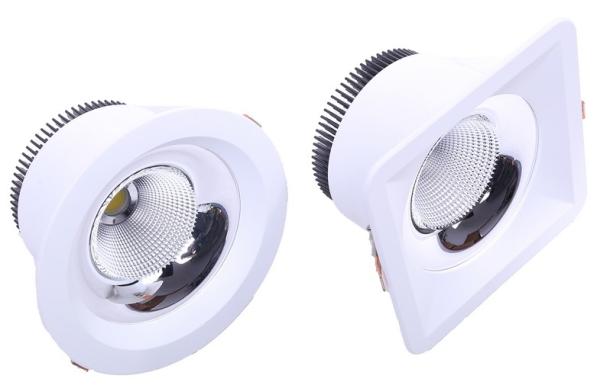

5 inch 30W,45W led downlight with 100-277V,high bright and effiency

Description:

This series LED COB downlight is for high grade commerical application,because it's have own excellent feature and made of integrated pure aluminum and cold forging process radiator, special design and machining several hundreds fins to ensure quick cooling for led chip, so that the lifespan will be keep longer and high bright can be realized. from 3-8 inch with 10-80W as prefer. beam angle 15, 24, 38 ,60 deg as option.it's very suitable for high proof with high intensity requested.if you right need high quality commerical requirement,pls contact us freely. ,this is the right product for you.

Features of COB Downlight LED :

1. Lighting Source: Original Cree COB/Citizen COB source as option.

2. CRI>90 and CRI>80 selectable;

3. High luminous flux up to 95LM/W from fixture.

4. Pure alluminum cool forging heat sink for very high efficient heating dissipation.

4. Input voltage:90-264/277/305V 47/63 Hz as your choose.

5. Style: opular modern design

6. 5 inch size with 30W and 45W for your need.

7. TUV approval highquality LED driver.

8. Competitive: CE, RoHS, SAA, C-tick, EMC certificate with competitive price.

Specification:

Model No.

BLD-GT-DL5inch-158-30W

BLD-GT-DL5inch-158-45W

Power consumption

30W

45W

Dimension

Φ158*110mm,cutout:Φ135

Φ158*140mm,cutout:Φ135

Input voltage

AC100-264V/277V,50/60HZ

LED type&quantity

Citizen COB

Luminous flux

2650-2800Lm

3900-4200LM

Color temprature

Warm white2800-3500K,Normal white4500-5500K,Cool white6500-7500K

Beam angle

15°, 24°, 38° ,60°

CRI

>80

Work temprature

-20°C~40°C

Lampshade

Pure aluminum reflective cup.

Housing

Pure aluminum cold forging

Driver type

External TUV LED Driver

Life span

50000hs

Certificate

CE &ROHS

Warranty

3 years

5 Inch 30W , 45W LED Recessed Downlight 100-277V high bright and effiency

Application:

  • School, university, hospital, hotel;
  • Conference,meeting room, show room, showcase;
  • Commercial complexes;
  • Factory,plant,warehouse, office;
  • Supermarket,department store.
  • Speciality stores, hotel, bar, cafe, jewelers.
  • Indoor lighting, villa, high-quality hotel, meeting room.

About Samples

1. Samples: one set for free but freight cost on your account.

1. Sample leading time: 1 to 3 days

2. Samples for testing are available

3. We declare that the bulk production order will be the same good quality with sample.

4. OEM and ODM are available

Our Services

1.Company: Ruidisi light always positioning in research, development , production and sales of LED product with high quality.


2.Lead time: 2-4 days for samples, 10~15 days for standard order.best production capability ,best quality control, Best Service .


3.shipment:100% QC inspection Before Shippment.


4. Certification:SAA/C-TICK/CE/ROHS listed,competitve price.


5.Service:Customized design is available. OEM&ODM are welcome.


6. After-sales:Enquiry will be replied within 8 working hours,We replace with new lights or send replacement components

free of charger for those broken lights under warranty time.
