Building Materials 15mm Aluminum Honeycomb Panel Fiberglass Partition Board
Building Materials 15mm Aluminum Honeycomb Panel Fiberglass Partition Board
Building Materials 15mm Aluminum Honeycomb Panel Fiberglass Partition Board
Building Materials 15mm Aluminum Honeycomb Panel Fiberglass Partition Board
Building Materials 15mm Aluminum Honeycomb Panel Fiberglass Partition Board
Building Materials 15mm Aluminum Honeycomb Panel Fiberglass Partition Board
Specifications
Brand Name :
Alumtimes
Model Number :
AHP-01
Certification :
ISO, CE, SGS
Place of Origin :
China
MOQ :
100 SQM
Price :
US$20-46/SQM
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
30000 SQM per Month
Delivery Time :
18-22 days
Packaging Details :
Plywood Case
Name :
Aluminum Honeycomb Panel
Size :
Standard 1220*2440mm
Color :
Wooden/Stone, original, RAL colors
Panel Thickness :
6-100mm
Description

AHP Partition Board Building Materials Aluminum Honeycomb Panel for Ceiling

PRODUCT DESCRIPTION

Alumtimes aluminum honeycomb panels are sandwich-structured composites with honeycomb cores. They are manufactured by using a variety of different materials, depending on the intended application and required characteristics, from paper or thermoplastics, used for low strength and stiffness for low load applications, to high strength and stiffness for high performance applications, from aluminum or fiber reinforced plastics. The strength of laminated or sandwich panels depends on the size of the panel, facing material used and the number or density of the honeycomb cells within it. Aluminum honeycomb panels are widely used in automotive and furniture to construction and logistics.

Standard Specification and Parameter
Specification

Overall Thickness:10, 12, 15, 20, 25 mm

Width ≤ 2200 mm ( Other width can be negotiated)

Length ≤ 10000 mm ( Other width can be negotiated)
Front Panel

Material: High grade aluminum alloy (3003,5005, 5754, AA1100)

Thickness ≥ 1.0 mm(curtain wall panel's standard); ≥ 0.7 mm(nonstandard)
Core Materials

Material : High grade anticorrosive aluminum honeycomb core material

Aluminum foils' thickness: 6mm
Back Panel

Material : High grade aluminum alloy (3003,5005, 5754)

Thickness ≥ 0.7 mm(standard) ; ≥ 0.5 mm(standard)
Binder

Two-component high-temperature curing polyurethane adhesive of fuller/hot

melt adhesive membrane.
Treatment

Roller coating/ Anodized oxidation/ Powder coating/ PVDF coating
Color

Plain colored, metallic color, pearl etc..
Density

5.0-7.5 kg/ m2
Fireproof Performance

A2 (GB8624-2012)

Building Materials 15mm Aluminum Honeycomb Panel Fiberglass Partition Board

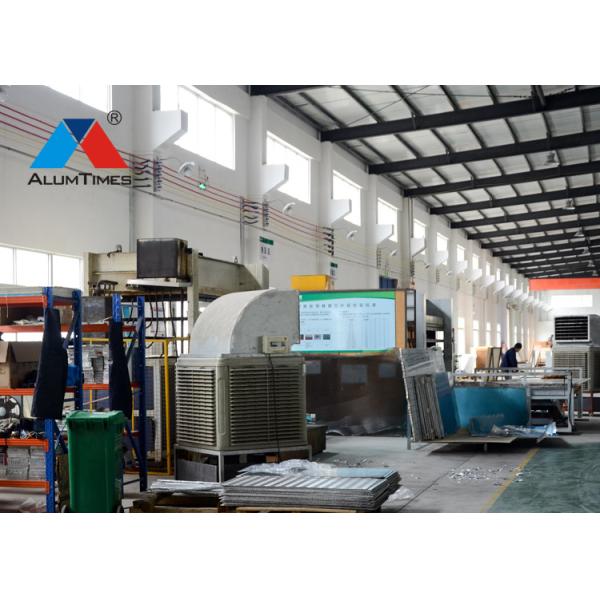

WORKSHOP

Building Materials 15mm Aluminum Honeycomb Panel Fiberglass Partition Board

Features

1. Energy saving, green material: Good thermal and sound insulation & sound insulation, fire resistance.


2. High wind load resistance: High strength & rigidness and stable structure of honeycomb core.


3. Easy installation & low labor cost: Light weight


4. Good decoration: Excellent flatness & wide color selection.

5. Working Temperature: -55℃ to 175℃ in long term

APPLICATION

A. Gas piping, cables, building materials, etc (this product fills a gap in the domestic construction materials field, with

performance indexes superior to panels manufactured overseas)

B. Curtain wall decoration for buildings where security is important, as airports, hospitals and research centers

C. Curtain wall boards for outside walls of normal buildings

D. Renovations for old buildings and movable houses

E. Reformation and decoration for indoor walls, ceilings, bathrooms, kitchens and balconies
