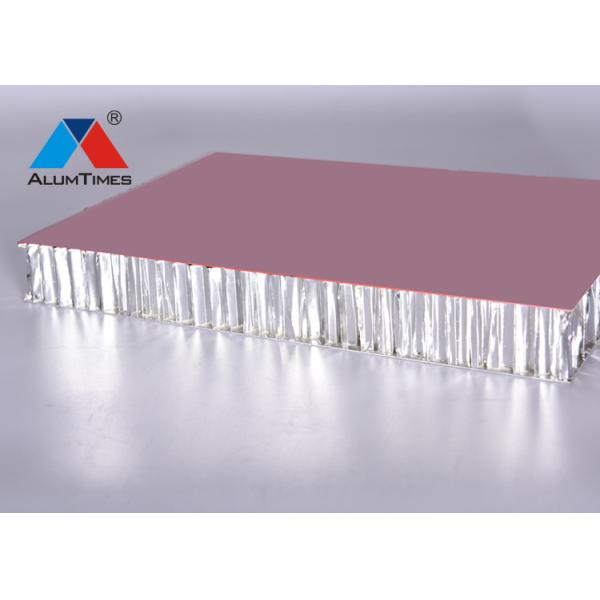

Fire Resistant Mirror Aluminum Honeycomb Sandwich Panels For Furniture Industry
Fire Resistant Mirror Aluminum Honeycomb Sandwich Panels For Furniture Industry
Fire Resistant Mirror Aluminum Honeycomb Sandwich Panels For Furniture Industry
Fire Resistant Mirror Aluminum Honeycomb Sandwich Panels For Furniture Industry
Fire Resistant Mirror Aluminum Honeycomb Sandwich Panels For Furniture Industry
Fire Resistant Mirror Aluminum Honeycomb Sandwich Panels For Furniture Industry
Fire Resistant Mirror Aluminum Honeycomb Sandwich Panels For Furniture Industry
Fire Resistant Mirror Aluminum Honeycomb Sandwich Panels For Furniture Industry
Specifications
Brand Name :
Alumtimes
Model Number :
AHP-01
Certification :
ISO, CE, SGS
Place of Origin :
China
MOQ :
100 SQM
Price :
US$20-46/SQM
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
30000 SQM per Month
Delivery Time :
18-22 days
Packaging Details :
Plywood Case
Name :
Mirror Aluminum Honeycomb Panel
Size :
1200*2500mm, 1500*4800mm
Max Size :
1650*12000mm, 2000*3000mm
Panel Thickness :
3-100mm
Surface Treatment :
Anodized, PE/PVDF Coated, Printing, film coated,
Function :
Anti-Static, Antibacterial, Fireproof, Mould-Proof
Usage :
Exterior wall cladding, Partition, Ceiling, Truck and Vessel, etc
Skin Materials :
aluminum, fiberglass, zinc, carbon fiber, galvanized sheet
Description

Mirror aluminium honeycomb backed stone panel of creative design

PRODUCT DESCRIPTION

Aluminum Honeycomb Panels are sandwich panels made up of aluminum, fiberglass, zinc, carbon fiber, galvanized sheet, stone veneer reinforced with an aluminum honeycomb backing. The stone veneer can be almost any stone including granite, marble, limestone, travertine and onyx.

Specification

TOP ALUMINIUM SKINS Thickness (mm):

0,5 - 0,7 - 1 (standard)

Special thickness according to customers’ requirements (such as, 1.5-2.0-3.0mm)

ALUMINUM CORE

Hexagonal cells, Alloy series 3003

Diameter in inches: Ø1/4”, Ø3/8”, Ø1/2”, Ø3/4”

Foil thickness: from 50 to 70 microns

Alloy series 5052 could be customized

BOTTOM ALUMINIUM SKINS Thickness (mm):

0,5 - 0,7- 1 (standard)

Special thickness according to customers’ requirements (such as, 1.5-2.0-3.0mm)

On request: Special alloys, treatments and coating with RAL colors

Fire Resistant Mirror Aluminum Honeycomb Sandwich Panels For Furniture Industry

Mill finished aluminum honeycomb panel

Colored aluminum honeycomb panels

Fiberglass honeycomb composite panel

Standard Construction:
Face: 0.5-3 mm aluminum sheet
Core: cell size 1/4”,3/8” ,

1/2” ,3/4, aluminum foil 0.04

to 0.08mm
Back: 0.5-3 mm aluminum sheet

Standard Construction:
Face: 0.5-1 mm aluminum sheet
Core: cell size 1/4”,3/8” ,1/2” ,3/4 aluminum foil 0.04 to 0.08mm
Back: 0.5-1 mm aluminum sheet

Standard Construction:
Face: 0.5-1 mm fiberglass impregnated with epoxy resin
Core: cell size 1/4”,3/8” ,1/2” ,3/4, aluminum foil 0.04 to 0.08mm
Back: 0.5-1 mm fiberglass impregnated with epoxy resin

Company prodution capacity: 1000000m2 / year

Company Certificate: ISO9001:2008, ISO14001:2004

WORKSHOP

Fire Resistant Mirror Aluminum Honeycomb Sandwich Panels For Furniture Industry

FEATURES

Color coated aluminum honeycomb panel

Laser television is achieved by laser projector and special metal curtain. The current manufacturers are mainly using a blue single laser light source to transmit the screen, and then through the screen to the image. Because the screen material is special and it can reflect off only the light source from the laser. So in a high brightness environment, it can show a good picture. Aluminum honeycomb panel, due to its high flatness, is the material for metal screen.

HPL honeycomb composite panels, color coated aluminum honeycomb panel, stone honeycomb composite panel, porcelain honeycomb composite panels

The shipbuilding industry is constantly seeking the use of new technologies for products and solutions that achieve a greater degree of efficiency in the manufacturing process and improve business productivity.

Cruise ships, large yachts, patrol boats and even offshore platforms have introduced aluminum totally or partially in their designs. In particular, high-speed vessels for the transport of passengers continuously search how to increase speed so that employ materials based on different aluminum alloys.

APPLICATION

a. Decoration Materials
b. Wall cladding
c. Building materialHigh-rise building
d. Audio Industry
e. Transportation Industry
f. Furniture Industry
