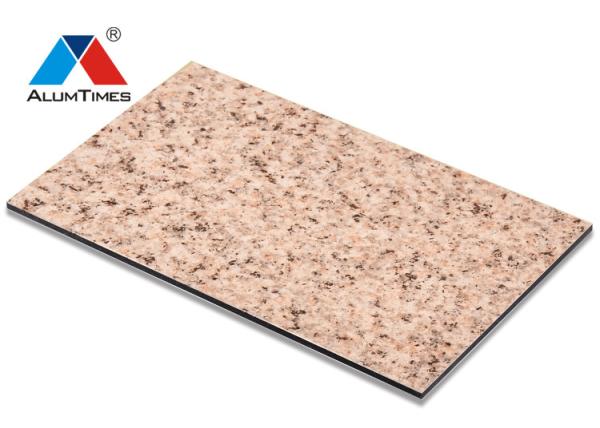

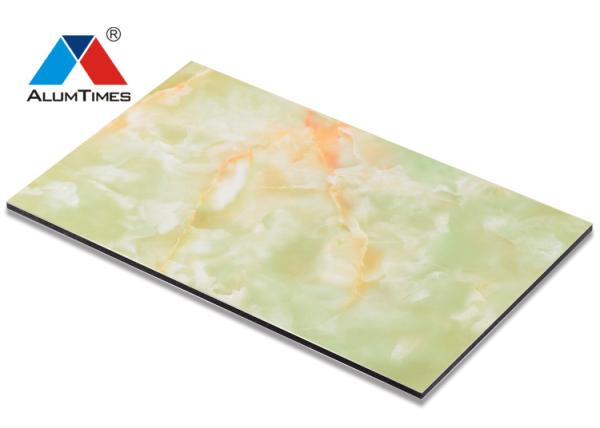

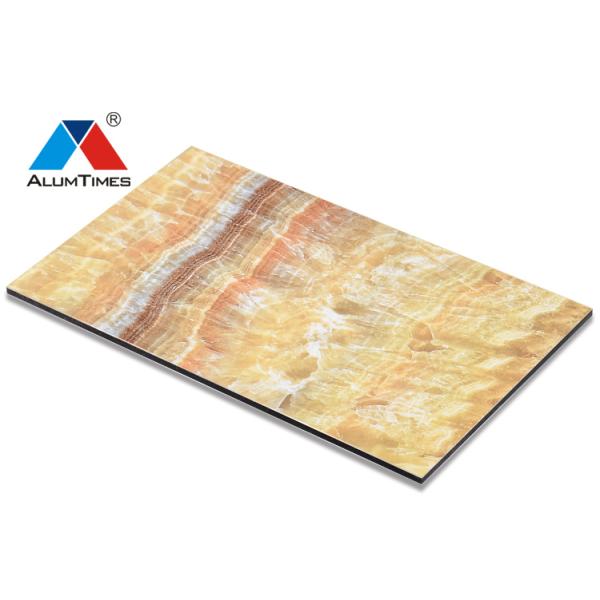

Stone Look Aluminum Composite Panel , Decorative Aluminium Exterior Wall Panels
Stone Look Aluminum Composite Panel , Decorative Aluminium Exterior Wall Panels
Stone Look Aluminum Composite Panel , Decorative Aluminium Exterior Wall Panels
Stone Look Aluminum Composite Panel , Decorative Aluminium Exterior Wall Panels
Stone Look Aluminum Composite Panel , Decorative Aluminium Exterior Wall Panels
Stone Look Aluminum Composite Panel , Decorative Aluminium Exterior Wall Panels
Stone Look Aluminum Composite Panel , Decorative Aluminium Exterior Wall Panels
Stone Look Aluminum Composite Panel , Decorative Aluminium Exterior Wall Panels
Specifications
Brand Name :
ALUMTIMES
Model Number :
AP019
Certification :
CE ISO Fire retardant certificates
Place of Origin :
China
MOQ :
500 square meters
Price :
USD 8- 13 per square meter
Payment Terms :
L/C, T/T
Supply Ability :
10000 square meters per day
Delivery Time :
10 - 20 days
Packaging Details :
FCL by nude in 1*20 GP
MOQ :
500 square meters
Color :
Customized
Aluminum thickness :
0.06 - 0.5 mm
Coating :
PE PVDF
Warranty :
10 - 15 years
Protective film :
Customized Logo
Packing :
FCL by nude or LCL by plywood case
Panel thickness :
2 - 6 mm
Description

aluminum composite panel decorative building material mirror exterior wood wall panel

Width(mm)

Standard 1220mm&1250mm, options 900mm, 1500mm, 2000mm,

or any other width

Length(mm)

Standard 2440mm,options: 3050mm, 5000mm, 5800mm, or any other

length that can be put into a 20gp container

Panel

thickness(mm)

Standard thickness: 3mm&4mm,options: 1mm, 2mm, 5mm,

6mm,7mm, 8mm,etc

Aluminium

thickness(mm)

0.5mm, 0.45mm, 0.4mm, 0.35mm, 0.3mm, 0.25mm, 0.21mm,

0.18mm,etc

Coating

PE, HDPE, PVDF, FEVE, Epoxy coating,etc

Color

Solid, metallic, high gloss, pearl, spectra mirror,stone look,

wood look,brushed,etc

Weight

5-6.5kg/Square meters, based on 4mm thickness

3-4.5kg/Square meters, based on 3mm thickness

Function

Fireproof, Mould Proof, self-cleaning, Anti-Static, Antibacterial,etc

Certification

SGS / CE / CTC / ISO 9001:2008 / ISO 14001:2004 /

GB/T 1774-1999,etc

Material:


a) Front: aluminum alloy sheet coated with fluoro-carbon resin
(PVDF) and polyester resin (PE) roasting painting
b) Core: nontoxic polyethylene.
c) Back: aluminum alloy sheet coated with polyester resin painting
d) Surface finish: treated with PVDF and PE resin rolling roasting .
coating
e) Surface coating thickness: 30um
f ) Aluminum alloy sheet thickness: 0.1mm, 0.12mm, 0.15mm, 0.2mm,
0.3mm, 0.4mm, 0.45mm, 0.5mm

Dimensions:


a) Thickness: 3mm, 4mm
b) Width: 1220mm 1500mm..
c) Length: 2440mm, 3200mm, 4000mm,5000mm (max: 6 meter)
d) Weight: 5.5kg/sqm based on 4mm thickness.
e) Standard size: 1220 x 2440mm
f) Nonstandard sizes are available according to requirement of customers

Specifications

1) Beckers Kynar 500,PVDF
2) Alcoa aluminum coil
3) 10 days delivery time
4) TOP 500 Privated Company
5) Reliable company

1. Sheet Thk ranges:2mm-6mm

2. ALu Thk:0.06mm-0.5mm

3. Alu Alloy:1100,H 18

4. Coating:PVDF,kynar 500.

5. certificates:SGS,ASTM

6. Available size(W):1220/1250mm,1500mm etc

7. Available size(L):Max 6000mm

8. Availalbe colors: over 84 colors.

9. Special finish:

a) Gold and Silver,bronze Mirror

b) granite&Marble,

c) Silver brush,gold brush,green brush.

d) pearl finish

e) others

Application scope:

1) Building exterior curtain walls..

2) Decoration and renovation additions for old buildings

3) Decoration of interior walls, ceilings, bathrooms, kitchens and balconies

4) Shop door decorations

5) Advertisement board display platforms and sign boards

6) Wallboards and ceilings for tunnels..

7) Industrial materials, materials for vehicles and boats

Specification:

Commodity

Aluminium Composite Panel

Brand

LUCKYBOND & OEM

Panel thickness

2mm/3mm/4mm/5mm/6mm

Aluminum thickness

0.03~0.50mm

Panel Width

1000mm/1220mm/1250mm/1500mm/1570mm

Panel length

1000~6000mm

Color

White,Sparkling Silver,Wooden Grain,Mirror,Brushed(any color can be customized)

Surface finish

PE/PVDF/HEVE

Stone Look Aluminum Composite Panel , Decorative Aluminium Exterior Wall Panels

FAQ:

1. Q: What is your delivery time?

A : Within 7-12days after receive your prepayment,and we can also deliver as per your requirement.

2. Q: Which payment can you accept?

A: TT , L/C or Western Union.

3. Q: What is your MOQ?

A: That's about 30 cubic meters.

4. Q: Which countries do you usually exports?

A: We export range is very wide, every continent there are our customers.

5. Q: Can I get some samples for check?

A: Yes. Samples can be provided for free but you should take charge for the freight fee and we will deduct the cost from your first order.
