Specifications
Brand Name :
GDJD
Model Number :
VA-DP-T081-1
Certification :
CE
Place of Origin :
China
working voltage :
9~36V
working temperature :
-20℃~+65℃
levels of protection :
IP65
communication interface :
1×CAN
size :
209mmx98mmx57mm
Description

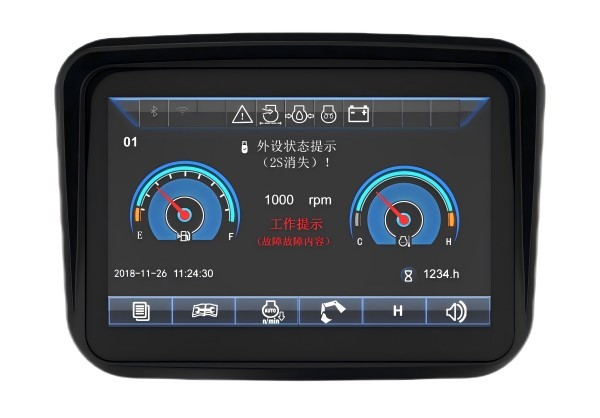

Specialized Electronic Operating Unit Excavator Display Board for Lifting Machinery with Harsh Environment Adaptability

This instrument assembly is a specialized electronic operating unit designed for mobile construction machinery, aiming to provide customers with an easy-to-install, reliable performance, and clear human-machine interaction terminal. The instrument assembly fully considers the harsh working environment of outdoor mobile vehicles, has excellent adaptability to wide temperature, high humidity, strong corrosion, and large vibration, and can be widely used in fields such as excavation machinery, construction machinery, road machinery, lifting machinery, logging machinery, agricultural machinery, and rock drilling machinery.

The parameter name Parameter values and descriptions
microprocessor
processor ST;180MHZ
internal storage 32MBytes
FLASH 1MBytes
memory 128MBytes
Electrical parameters
working voltage 9~36V (recommended work at 12V or 24V)
No load current consumption 120mA(@24VDC)
5V constant pressure source Maximum current is 0.3A
Power detection Internal power supply detection function
communication interface 1×CAN
Display parameter
size 5.0 Inch
resolution ratio 800*480
greatest brilliancy 400nits
environmental suitability
storage temperature -40℃~+80℃
working temperature -20℃~+65℃
relative humidity 90%RH(-10℃~+85℃)
impact strength 30g,18ms,(X,Y,Z)
oscillation intensity 10g,63.0221~250Hz,
levels of protection Front IP65
Anti-salt fog At 72h, 35℃, HCl
electrostatic discharge Contact with ± 8KV air with ± 15KV
environmental suitability GB/T2423(IEC60068)
reliability GB/T5080
electromagnetic compatibility ISO13766
Case with plug-in
sheathing material PC+ABS
size 209mmx98mmx57mm
connector 34 needles 4-1437290-1
Port configuration
Digital input 8 Road High or low effectiveness via hardware configuration; peak signal: 0~36V.DC
Digital output 6 Road Switching current: 2A; 3 low output; 3 high output (with 2 PWM).
read analogue input 6 Road 0~5V.DC, 0 / 4 ~ 20 mA; resistance type (200R~1K); hardware configuration.
Frequency input 1 Road Signal peak: 3V~36V.DC; range: 100 Hz ~ 1 KHz;
The motor drives the output 2 Road Load capacity: 0~3A; frequency: 0 ~ 1 KHz;
CAN 1 Road Rate is optional (125Kbit/s),CAN2.0B, ISO11898, SAEJ1939
Reference voltage output 1 Road 5V.DC0.3A;
