Specifications
Brand Name :
Pangolin
Place of Origin :
HeBei China
Price :
Negotiation
Payment Terms :
T/T
Delivery Time :
5-15 work day
Applicable Industries :
Construction works , Energy & Mining
Machine Type :
Drilling Equipment
Use :
Well Drilling
Application :
HDD reamer
Usage :
Hole Drilling
Advantage :
High Performance Cost Ratio
Service life :
Long
Features :
Durable
Description

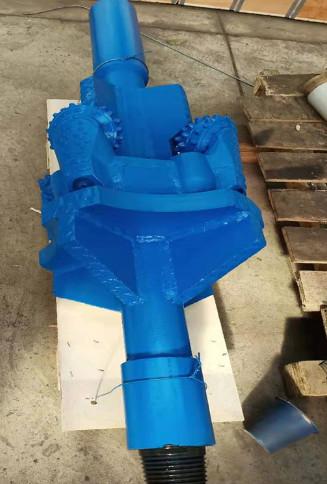

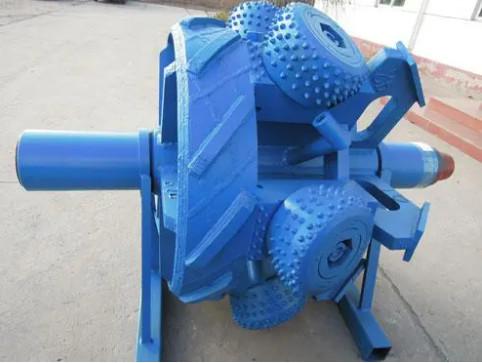

Steel Body HDD Hole Opener With Removable Cut Directional Drilling HDD Back Reamers


Description:

We can customize 3 wheels, 4 wheels rock reamer according to customer expansion force and drill pipe size: suitable for hard formations with high compressive strength, such as sandstone, limestone, dolomite gypsum, marble, etc. Seal type: rubber seal and metal seal tooth wheel palm plate are available.
We produce rock reamers suitable for various formations, soft rocks like limestone and sandstone, hard rocks like granite and basalt, etc. Choosing the right palm can increase drilling speed and service life. The size of the water spray hole can be designed according to the hole diameter of the reamer under construction.
, rock reamers with 5 or more rounds. There are many options for buckle types, like API, IF, FH, etc. One such product is the rock reamer, which is an exploration tool for rocks.

Product name HDD hole opener
Usage horizontal directional drilling
Weight 200kg-400kg
MOQ 1
Application formation medium hard with relatively higher compressive strength and hard stringers, such as hard shale, sandstone and limestone, etc.

Reamer Size

Cone size and # of Cones Threads
Cone size #of Cones Cone size # of Cones
10“ 6 1/2” 3 NC23 NC26(2 3/8IF) D50 D80 NC31(2 7/8IF) NC38(3 1/2IF)
12“ 8 1/2” 3
16“

8 1/2”or 9 1/2”

4

For 8 1/2”-9 1/2” Cone:

NC23 NC26(2 3/8”IF) D50 D80 NC31(2 7/8”IF) NC38(3 1/2”IF)

For 12 1/4”-13 5/8” Cone:

4”IF 4 1/2IF 5 1/2FH 6 5/8FH

18”-20“ 5 12 1/4” 4
22”-24“ 6

12 1/4” or 13 5/8”

5
28”-30” 7 6
32”-34” 8 7
36“-38” 9 8
40“-42” 10 9
44“-46” 11 10
48”-50” 12-13 11

Wear Resistance Steel HDD Hole Opener HDD Back Reamers 200kg-400kg

Machine Type Drilling Equipment
Use Well Drilling
Application HDD reamer
Usage Hole Drilling
Advantage High Performance Cost Ratio
Applicable Industries Construction works , Energy & Mining

Wear Resistance Steel HDD Hole Opener HDD Back Reamers 200kg-400kg

Pangolin (China) Construction Machinery Co., Ltd. is a drill manufacturer with complete testing equipment and strong technical force. Our products have a wide range, high quality, reasonable price, and timely delivery, which are widely used in oilfields, drilling, non-excavation fields and other industries. Our products are widely recognized and trusted by users, and can meet the ever-changing economic and social needs. To
We welcome new and old customers from all walks of life to contact us for future business relations and mutual success!

Wear Resistance Steel HDD Hole Opener HDD Back Reamers 200kg-400kg

FAQ

1. How to order products?
A: Direct order!


2. How to control quality?
A: we should check and test everyone's bit before shipment.


3. Do you agree to order samples?
A: Yes, we welcome your sample order to test our quality.


4. Can we choose the color of drill bit?
A: Yes, we have blue, gold, silver and other colors for you to choose from. If you need, we can make the drill color according to your requirements.
