Jam Detection Outsert Pharmaceutical Leaflet Folding Machine Automatic CE Certificate
Jam Detection Outsert Pharmaceutical Leaflet Folding Machine Automatic CE Certificate
Jam Detection Outsert Pharmaceutical Leaflet Folding Machine Automatic CE Certificate
Jam Detection Outsert Pharmaceutical Leaflet Folding Machine Automatic CE Certificate
Jam Detection Outsert Pharmaceutical Leaflet Folding Machine Automatic CE Certificate
Jam Detection Outsert Pharmaceutical Leaflet Folding Machine Automatic CE Certificate
Jam Detection Outsert Pharmaceutical Leaflet Folding Machine Automatic CE Certificate
Jam Detection Outsert Pharmaceutical Leaflet Folding Machine Automatic CE Certificate
Jam Detection Outsert Pharmaceutical Leaflet Folding Machine Automatic CE Certificate
Jam Detection Outsert Pharmaceutical Leaflet Folding Machine Automatic CE Certificate
Jam Detection Outsert Pharmaceutical Leaflet Folding Machine Automatic CE Certificate
Jam Detection Outsert Pharmaceutical Leaflet Folding Machine Automatic CE Certificate
Jam Detection Outsert Pharmaceutical Leaflet Folding Machine Automatic CE Certificate
Jam Detection Outsert Pharmaceutical Leaflet Folding Machine Automatic CE Certificate
Specifications
Brand Name :
AOQI
Model Number :
Pharmaceutical Leaflet Folding Machine
Certification :
CE Certificate
Place of Origin :
Dongguan City , China
MOQ :
1
Price :
Negotiated
Payment Terms :
T/T
Supply Ability :
10 lines per year
Delivery Time :
45-60 days
Packaging Details :
Export wooden box
Model Name :
Pharmaceutical Leaflet Folding Machine
First station :
600TS
Max. width :
600*1000mm
Min. paper format :
100*160mm
Second Station :
4、6、8 buckle Plates
Driving type :
Belt driving
Functions :
paper ejection ; ultrosonic double sheet ; camera inspection；noise hood
Optional devices :
parallel knife , pressing unit , vertical stacker , labeling machine
suitable industry :
printing , cosmetics, electricity , pharmaceutical and so on
Product certificate :
CE Certificate
Packing :
export wooden box
Description

Jam Detection Outsert Pharmaceutical Leaflet Folding Machine Automatic CE CertificateAutomatic 600TS Jam Detection Outsert Pharmaceutical Leaflet Folding Machine

This Flat pile feeder folding outsert system is designed to handle light-weight pharmacetical and miniature leaflet folding . In order to meet different cutomers' needs , we have 480TS and 600TS for the first station . Different width format with 6-20 plates . The second station is to handle the thick and small-size leaflets with 4,6 or 8 buckle plates.

Jam Detection Outsert Pharmaceutical Leaflet Folding Machine Automatic CE Certificate

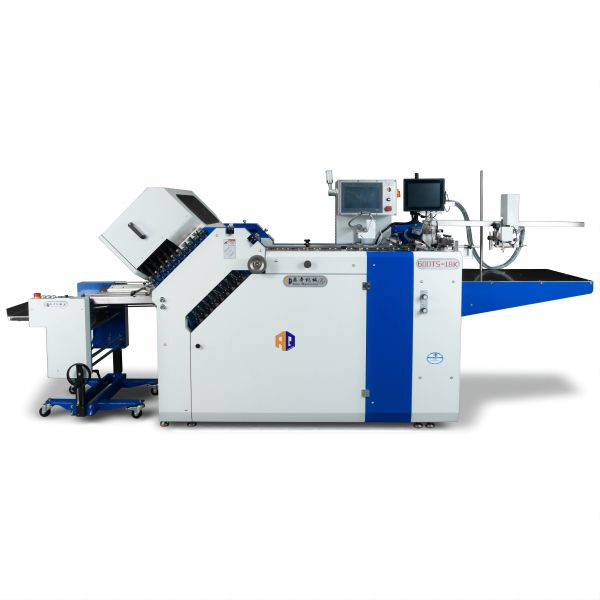

Station I :

600TS Paper Folder --- 600mm width format with 6-18 plates

Station II is to handle the thick and small-size leaflets with 4 ,6 or 8 plates.

Jam Detection Outsert Pharmaceutical Leaflet Folding Machine Automatic CE Certificate

Jam Detection Outsert Pharmaceutical Leaflet Folding Machine Automatic CE Certificate

Pressing unit:160YP

Max. infeed width : 160mm

Product Max. thickness : 10mm

Max. speed : 60m/min

voltage: 380V,075KW

Dimension(L*W*H) : 600*560*(1150-1250)mm

Weight : 185KG

Jam Detection Outsert Pharmaceutical Leaflet Folding Machine Automatic CE Certificate

Parallel knife:160PX

Max. infeed size:140*160(L*W)

Min. infeed size : 70*25(L*W)

Max. thickness : 12mm

Speed: 90m/min

Jam Detection Outsert Pharmaceutical Leaflet Folding Machine Automatic CE Certificate

Labeling machine:200TB

Labeling Process: Product entry -- Conveying ---Product inspection---Flip Product----Conveying ---Labeling

Parameters :

Parameters of labeling machine
Label Accuracy ±2mm(not including error of products and labels
Labeling Speed 80-90pcs/min( related to the size of products and labels)
Label Length 25-35 mm
Label width 15-20 mm
Product Size L 50~200mm
W 30~45mm
H 2~10mm
Dimension(L*W*H) 2600mm*750mm*1750mm
Voltage 220V/50HZ
Net weight 457.5kg
Label material Avery brand , model BW777

Jam Detection Outsert Pharmaceutical Leaflet Folding Machine Automatic CE Certificate

Vertical stacker-200LS

Max.delivery width:200mm

Min.delivery width:25mm

Min.finished product size:20*20mm

Max.delivery height:150mm

Min.delivery height:20mm

Power:220V,0.2KW

Machine net weight:100KG

Machine dimensions:130*75*94-123cm

Jam Detection Outsert Pharmaceutical Leaflet Folding Machine Automatic CE Certificate

Jam Detection Outsert Pharmaceutical Leaflet Folding Machine Automatic CE Certificate

Jam Detection Outsert Pharmaceutical Leaflet Folding Machine Automatic CE Certificate

Jam Detection Outsert Pharmaceutical Leaflet Folding Machine Automatic CE Certificate

Jam Detection Outsert Pharmaceutical Leaflet Folding Machine Automatic CE Certificate
