Specifications
Brand Name :
AOQI
Model Number :
Pharmaceutical Outsert Folding System
Certification :
CE Certificate
Place of Origin :
Dongguan City, China
MOQ :
1 set
Price :
Negotiated
Payment Terms :
T/T
Supply Ability :
10 lines per year
Delivery Time :
25-30 days
Packaging Details :
export wooden box
Max. infeed size :
480/600*1000mm
Driving type :
Belt Driving
Min. infeed size :
100*160mm
Paper thickness :
40-300gsm
Max. roller speed :
220m/min
Power :
380V,4.2KW
Net weight :
877KG
Machine dimensions :
3350*1100*1570mm
Optional device :
Independent knife，Parallel knife，Hot melt gluing machine，pressing unit
Packing :
wooden box
Certificate :
CE certificate
Application :
pharma industry，cosmetic，electronic appliances
Condition :
New
Description

Large Format Paper Processing Machinery Pharmaceutical Outsert Production Line Leaflet Outsert System

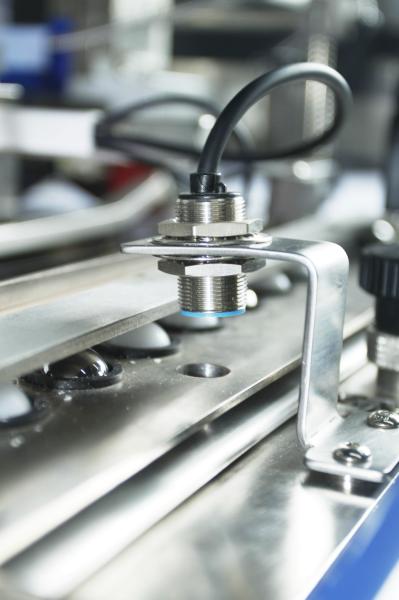

The 480/600TS pharmaceutical outsert system folding machine is a pile feeder machine for 480 or 600mm wide and 1000 mm long,specially for the difficult and complicated sheet folding.The machine is equipped with a ultrasonic double sheet detection,online paper ejection ect..

Large Format Paper Processing Machinery Pharmaceutical Outsert Production Line Leaflet Outsert System

Features

1,10-inch vertical touch screen control interface, Chinese and English interface switching: easy operation, stable and efficient data processing, humanized design makes operation easier and more efficient.

2,Electronic feeder head (automatic height adjustment): paper feeding more quickly and stably, greatly increasing the speed of paper feeding.

3,Belt driving: Imported dual platen dual-drive belt power transmission structure, silent operation.

4,can automatically remove defective products and double feeding without stopping the machine, preventing defective products from entering the next process.

Station I : 480TS Paper Folder --- 480mm width format with 6- 20 plates

600TS Paper Folder --- 600mm width format with 6-18 plates

Station II: is to handle the thick and small-size leaflets with 4/6/8 plates.

Large Format Paper Processing Machinery Pharmaceutical Outsert Production Line Leaflet Outsert System

Model

360T/480T

530TS

480TS/600TS

Min.sheet Size

50*105mm

70*120mm

100*160mm

Max.sheet Size

360*(750/1000)mm

480*(750/1000)mm

530*1000mm

480*1000mm

600*1000mm

Paper Thickness

300-250g

40-300g

40-300g

Folding Roller Fastest Speed

200/min

220/min

220/min

Folding Knife Max.frequency

500stroke/min

400stroke/min

400stroke/min

Input Power

380v

380v

380v

Power Consumption

2.0-3.75kw

3.1-3.75kw

3.9-4.75kw

Net Weight

500-1500kg

800-1500kg

800-1500kg

Large Format Paper Processing Machinery Pharmaceutical Outsert Production Line Leaflet Outsert System

Pressing unit

Max. infeed width : 160mm

Product Max. thickness : 10mm

Max. speed : 60m/min

voltage: 380V,075KW

Dimension(L*W*H) : 600*560*(1150-1250)mm

Weight : 185KG

Large Format Paper Processing Machinery Pharmaceutical Outsert Production Line Leaflet Outsert System

Parallel knife

Max. infeed size:140*160(L*W)

Min. infeed size : 70*25(L*W)

Max. thickness : 12mm

Speed: 90m/min

Large Format Paper Processing Machinery Pharmaceutical Outsert Production Line Leaflet Outsert System

Hot melt gluing machine

Max. infeed size:250mm

Min. infeed size : 20mm

Max. speed : 120m/min

Voltage:220V

Machine weight:76.5kg

Machine dimensions:1000*370*1250mm

Large Format Paper Processing Machinery Pharmaceutical Outsert Production Line Leaflet Outsert System

Vertical Stacker

Max.delivery width:200mm

Min.delivery width:25mm

Min.finished product size:20*20mm

Max.delivery height:150mm

Min.delivery height:20mm

Power:220V,0.2KW
