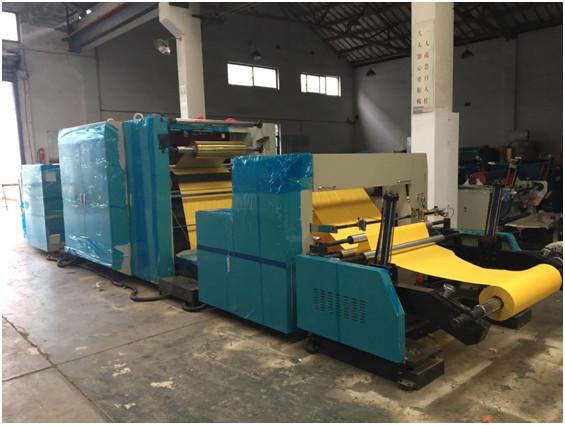

Fully Automatic Roll To Roll Paper Hot Foil Stamping Machine YM1050JT
Fully Automatic Roll To Roll Paper Hot Foil Stamping Machine YM1050JT
Fully Automatic Roll To Roll Paper Hot Foil Stamping Machine YM1050JT
Fully Automatic Roll To Roll Paper Hot Foil Stamping Machine YM1050JT
Fully Automatic Roll To Roll Paper Hot Foil Stamping Machine YM1050JT
Fully Automatic Roll To Roll Paper Hot Foil Stamping Machine YM1050JT
Fully Automatic Roll To Roll Paper Hot Foil Stamping Machine YM1050JT
Fully Automatic Roll To Roll Paper Hot Foil Stamping Machine YM1050JT
Specifications
Brand Name :
xinxin
Model Number :
YM1050JT
Certification :
CE
Place of Origin :
China
MOQ :
1SET
Price :
128000$/SET
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10 sets one year
Delivery Time :
40 work days after deposite
Packaging Details :
plastic around
Automatic grade :
Automatic
Condition :
New
Usage :
Paper Printer,Card Printer
Type :
Heat Press Machine
Warranty :
1 Year
After-sales service provided :
Engineers available to service machinery overseas
Product name :
Automatic hot foil stamping machine
Function :
Hot Stamping
Application :
stamping
Machine type :
Hot Stamping Machine
Description

Specification

Max. roll paper diameter 1200mm
Max. feeding paper length 750mm
Max. sheet size 1050×750mm
Max. stamping speed 6500times/h
Max. working speed 7000times/h
Foil feeding shafts 5groups longitudinal:3 transversal:2 (select part)
Zones individually heated 10zones, 3kw, each zone
Main motor power 15KW
Heated plate power 30KW
Paper range 80-500g/m2
Max. working pressure 680T
Machine weight 19.8T
Overall machine dimensions 13000×4000×2200mm

Description of TYM1050JT

Automatic Web-Fed Hot Foil Stamping Machine is designed as the new generation product; it is used for automatic stamping roll material that after the printing, laminating. It is suitable for the production of carton, paper cup, surround-bidding label, card paper pressing convex, portable paper bag, paper cover,PVC, and various plastic material etc.

The main machine and frame adopt the advanced resin sand technical, which ensures machine be more stable. The main components are controlled by the Japan Panasonic PLC. The main motor is controlled by AC frequency conversion speed regulator; the main transmission system is equipped by air clutch brake equipment, which makes the machine running steadily.

The machine equipment adopts high precision color photo-electrical automatic trace detection, servo motor automatic locating system. Material automatic loading, equipping- feeder automatic correct equipment. It has advantages of easy length adjustment, high precision locating, stable feeding, even tension, compact structure, high automatic, easy operation, stable property and so on.

Web-Fed Hot Foil Stamping Original List:

NO. Name Brand Original
1 HIM Panasonic JAPAN
2 Platform Dae dong KOREA
3 Main motor Simens GERMANY
4 Clutch Yuyi ITALY
5 Oil pump Weiliang TAIWAN
6 Main bearing SKF SWIZERLAND
7 Turbine worm TAIWAN
8 Crankshaft TAIWAN
9 Frequency convertor Panasonic JAPAN
10 Sensor switch Panasonic JAPAN
11 PLC Panasonic JAPAN
12 Contactor Simens GERMANY
13 Switch Schneider FRENCH
14 Servo motor Panasonic JAPAN
15 Solid relay Panasonic,Ximaden JAPAN
16 Light sensor Sunx CHINA
17 Terminal Phoenix CHINA
18 Power button Mingwei TAIWAN
19 Rectiyfing system Re ITALY
20 Hydraulic Jinpai TAIWAN
21 Encoder OMRON,Panasonic JAPAN
22 Air knife Jinpai TAIWAN
23 Automatic valve SMC JAPAN
