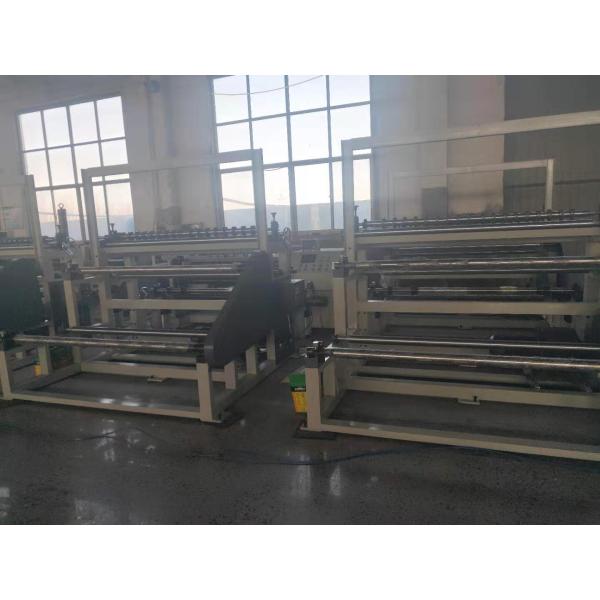

Economic 5.5kw Paper Slitting And Rewinding Machine 380V / 50HZ 1600A
Economic 5.5kw Paper Slitting And Rewinding Machine 380V / 50HZ 1600A
Economic 5.5kw Paper Slitting And Rewinding Machine 380V / 50HZ 1600A
Economic 5.5kw Paper Slitting And Rewinding Machine 380V / 50HZ 1600A
Specifications
Brand Name :
Tiansheng
Model Number :
1600A
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
1
Price :
Price negotiation
Payment Terms :
L/C, T/T
Supply Ability :
10+SET/SETS+per month
Delivery Time :
40-45
Packaging Details :
All with stretch film machine, into the container.
Type :
Slitting rewinder
Weight :
900kg
Dimension(l*w*h) :
2300*2400*1600
Voltage :
380V/50HZ
Power(w) :
5.5kw
Width of base paper :
1600（mm）
Diameter of base paper :
Φ1200（mm）
Diameter of rewinder :
Φ750mm
Description

1600A Economic Automatic paper roll slitter rewinder machine

Machine introduction

1. This machine is suitable for cutting and rewinding base paper with diameter of 1200mm, width of 1600mm and weight of 80-600g. 2. The cutting width of this type of machine is more than 30mm (different number of cutters can be reasonably equipped according to different needs of customers)

3. The paper feeding mode of the base paper is pneumatic lifting. This paper feeding method not only saves labor, but also is simple and easy to operate.

4. The brake mode is pneumatic brake. The brake pressure can be adjusted quickly according to the size of the paper roll to make the reeling reach the same tightness.

Machine parameters


Technical parameter　

Width of base paper		 1600(mm)

Diameter of base paper		 Φ1200(mm)

Diameter of rewinder 		Φ750mm

Slitting width		 >30(mm)

Slitting capability		 80-600g

Motor power		 5.5kw

Slitting knife 		18sets

Rewinding way
Gas up outside the closed

Speed of adjust and control
Magnetic force

Speed of Slitting 		1-150(m/min)

Power input		 380V/220V

Operator		 1
