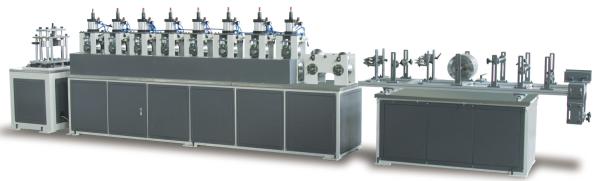

Stable Performance Corner Protector Machine And Punching Machine With Servo Motor
Stable Performance Corner Protector Machine And Punching Machine With Servo Motor
Specifications
Brand Name :
TIANSHENG
Model Number :
TSHC-100
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
ONE SET
Price :
Negotiation
Payment Terms :
T/T, L/C
Supply Ability :
5 SET PER MONTH
Delivery Time :
50DAYS
Packaging Details :
Stretch film
Wide :
20-100mm
Long :
50-9000mm
Thick :
2-8mm
Host power :
7.5kw+4.3kw*2
Control mode :
Frequency control
Cutting mode :
Automatic cutting
Description

Punching machine And Corner Protector Machine With Servo Motor

1.Product Description

1) Paper Angle Board Machine is a kind of machine that specializes in the production of paper corner. It is generally composed of paper guide, gluing, forming, cutting, automatic stacking and other devices and some accessories, which can complete all the processes of paper corner manufacturing.

2) It is applicable to the processing and manufacturing of angle protection (width 20-100mm; thickness 2-8mm; length 50-9000mm).

3) The cutting and punching angle is servo motor (4.3kw * 2). The servo motor has good stability and large torque, as well as its unique extreme speed start and stop function, which is undoubtedly the best product for cutting and punching angle.

4) The main motor is Shanghai strong speed / Hengshui Yongshun (7.5kW), which has adjustable speed function and is easy to adjust production speed.

5) The frequency converter is an Enrique product, which is a famous brand in China, with high practical value, low failure rate and small repair rate. The motor can be controlled by frequency conversion so as to adjust the speed of the machine.

6) Cutting and punching angle are applied to a main machine at the same time, which greatly improves the production efficiency, saves labor, reduces the error of cutting and punching, and improves the yield.

2.Technical Parameter

Technical parameter
Paper Angle Protection Specification Wide20-100mm
Long50-9000mm
Thick2-8mm
Production speed 0-10m/min (angle protection length 50-100mm)
0-40m/min (guard angle longer than 1500mm)
Host power 7.5kw+4.3kw*2
Control mode Frequency control
Raw material The surface of the paper 150g-200g
Core paper 300g-700g
Cutting mode Automatic cutting
Number of operators 1-2people

4.Product Size

Host Size:L*W*H 7000*700*1400(mm)
Coverage:L*W 22m*3m
Hub diameter 258mm
Hub height 150mm
Host weight 3326kg
Total weight 5136kg

5. Configuration device

Eight forming units
Right-angle paper holder
Automatic gluing device
Cutting table device (CNC)
Stainless steel operating table
Stainless steel mounting frame
The guide wheel of the upper paper rack is stainless steel tube.

5.Product details

6.FAQ

Q:Whether the product can achieve quality assurance?

A:Our factory has applied for ISO9001 quality inspection, our equipment is of high quality and high quality.

Q: what kind of payment you accept?

A:(1) TT:30%TT as depiosit+70%TT after machine ready before delive

(2) LC:100%LC as sight or 30%TT+70%LC at sight.

Q: your warrant and after-sale?

A: 12 month for whole machine quality (not include easy broken spare parts)we offer whole life technical support freely, and offer any related guide by video manual ect.

For other questions we do not mention here,please feel free contact us.
